SierraFC M164 Protocol Analyzer User Manual 147
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Custom Frame
Double‐click Custom Frame in the Pattern window to open the Add
Custom Frame Pattern dialog.

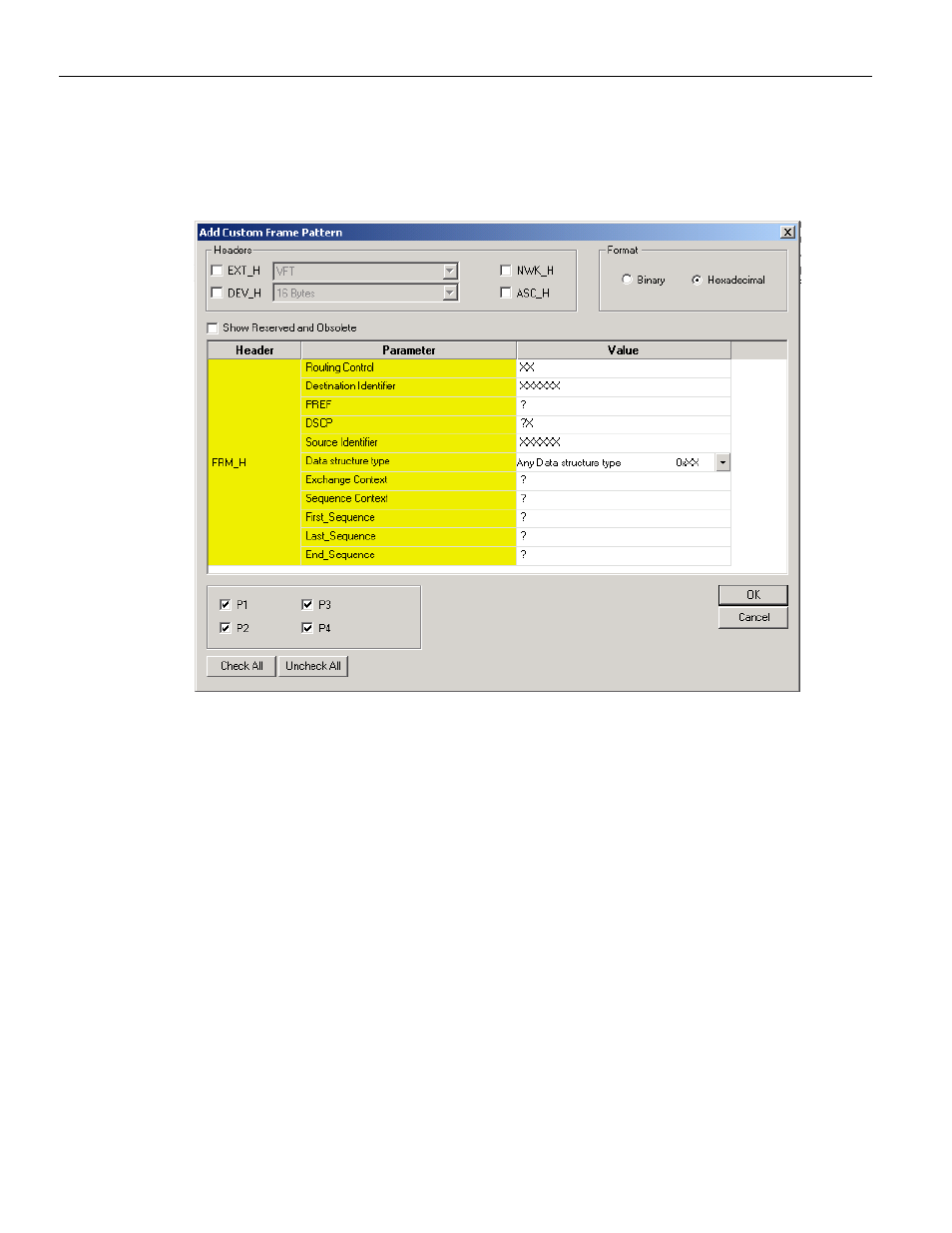

Figure 2.112: Custom Frame Pattern Dialog
The format can be Binary or Hexadecimal.
You can select a Header by checking EXT_H, DEV_H, NWK_H, and/or ASC_H. You can also
select one or more headers.
If you check EXT_H and/or DEV_H, click the dropdown list to select more options.
