SierraFC M164 Protocol Analyzer User Manual 125
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
VSAN‐FICON[Status]‐Status Byte
The VSAN‐FICON[Status] has an additional Status Byte dropdown menu under the Value
pane on the right of the dialog as shown in the following figure.

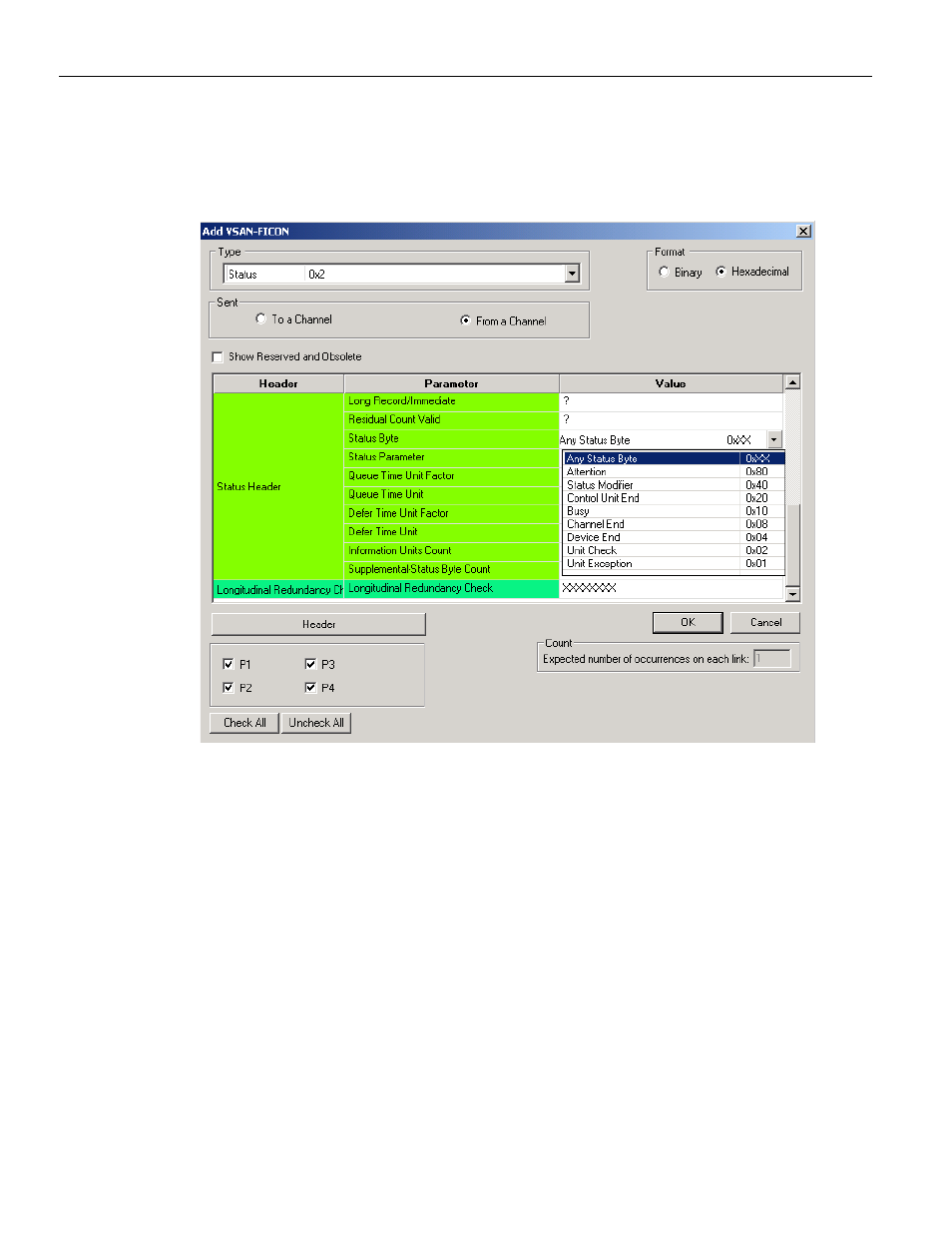

Figure 2.90: VSAN-FICON[Status] - Status Byte Drop-down List
To select Status Byte click the dropdown list which has the following options:
 Any Status Byte
 Attention
 Status Modifier
 Control Unit End
 Busy
 Channel End
 Device End
 Unit Check
 Unit Exception
