SierraFC M164 Protocol Analyzer User Manual 37
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Exclude VC_RDY
Check this to exclude VC_RDY primitives from the data capture.
Exclude traffic till both ports are up
Check this to exclude traffic till both ports are up.
Use separate patterns for Pre‐ and Post‐triggers captures replaces the Capture tab with a
Pre‐Trigger Capture tab and a Post‐Trigger Capture tab.

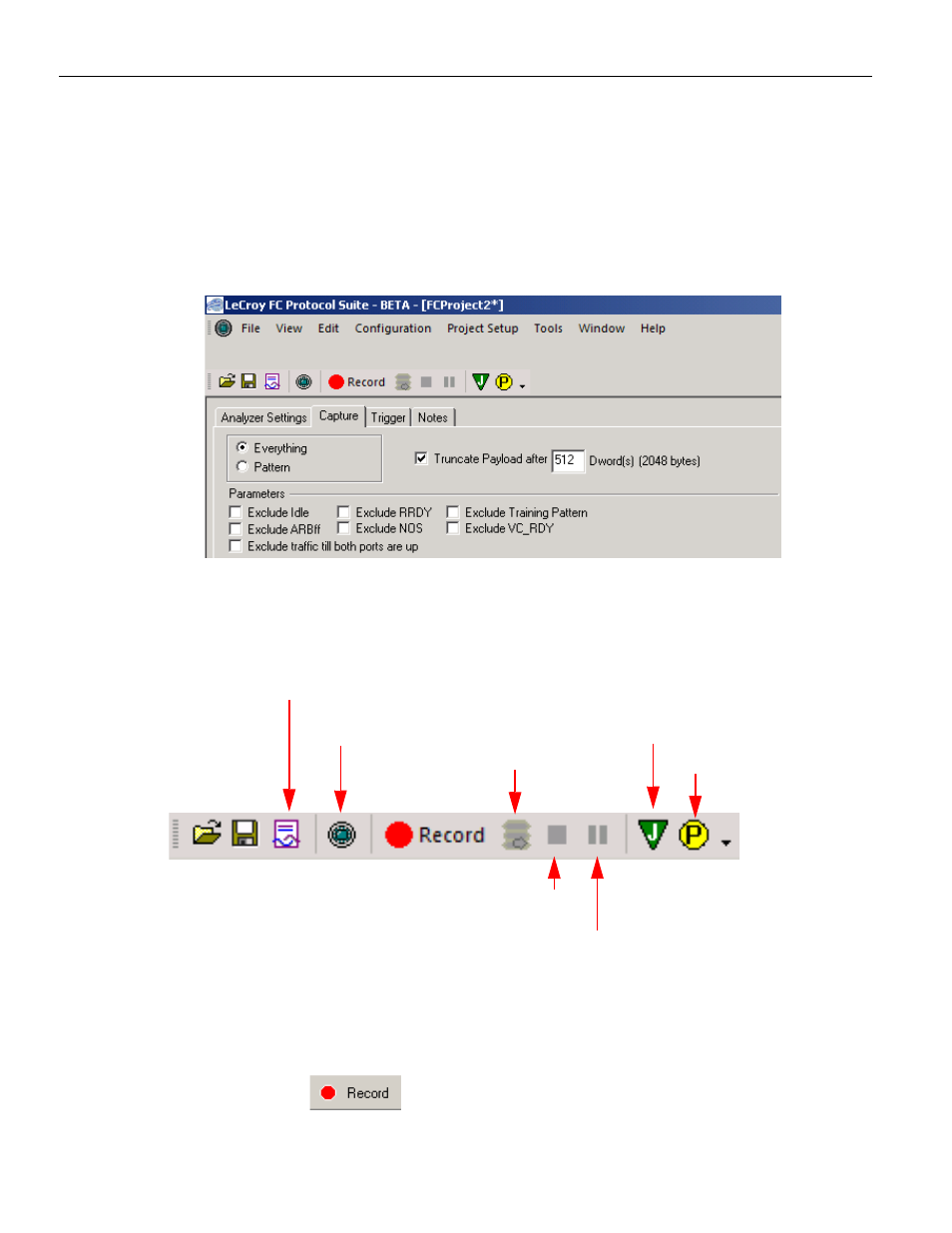

Figure 2.3: Protocol Analysis Capture Dialog
Software Menus and Toolbar
The software has the following main toolbar.
Figure 2.4: Main Toolbar
Run Hardware
To get an immediate overview of the bus traffic to and from your Analyzer:
1. Click the Record button.
Open Sample File
Run Last Open Capture Project
Abort Capturing Without Saving Sample File
Toolbar Options
Stop Hardware
Upload Manager Show Port Configuration
Switch to Jammer
