Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Note: The Events on each link are counted independently, causing a trigger whenever the number of
occurrences on any link equals the specified value.
Triggering Order
As triggering patterns are defined and added, they are displayed in the Project Overview
pane sequentially in the order that they were entered under the Trigger category. When
the project runs, the analyzer detects the occurrence of each pattern in order and triggers
on the last one.
You can re‐order the sequence of triggering patterns. To change the sequence order,
highlight a trigger pattern and use the Up or Down arrow to move it to a new position.

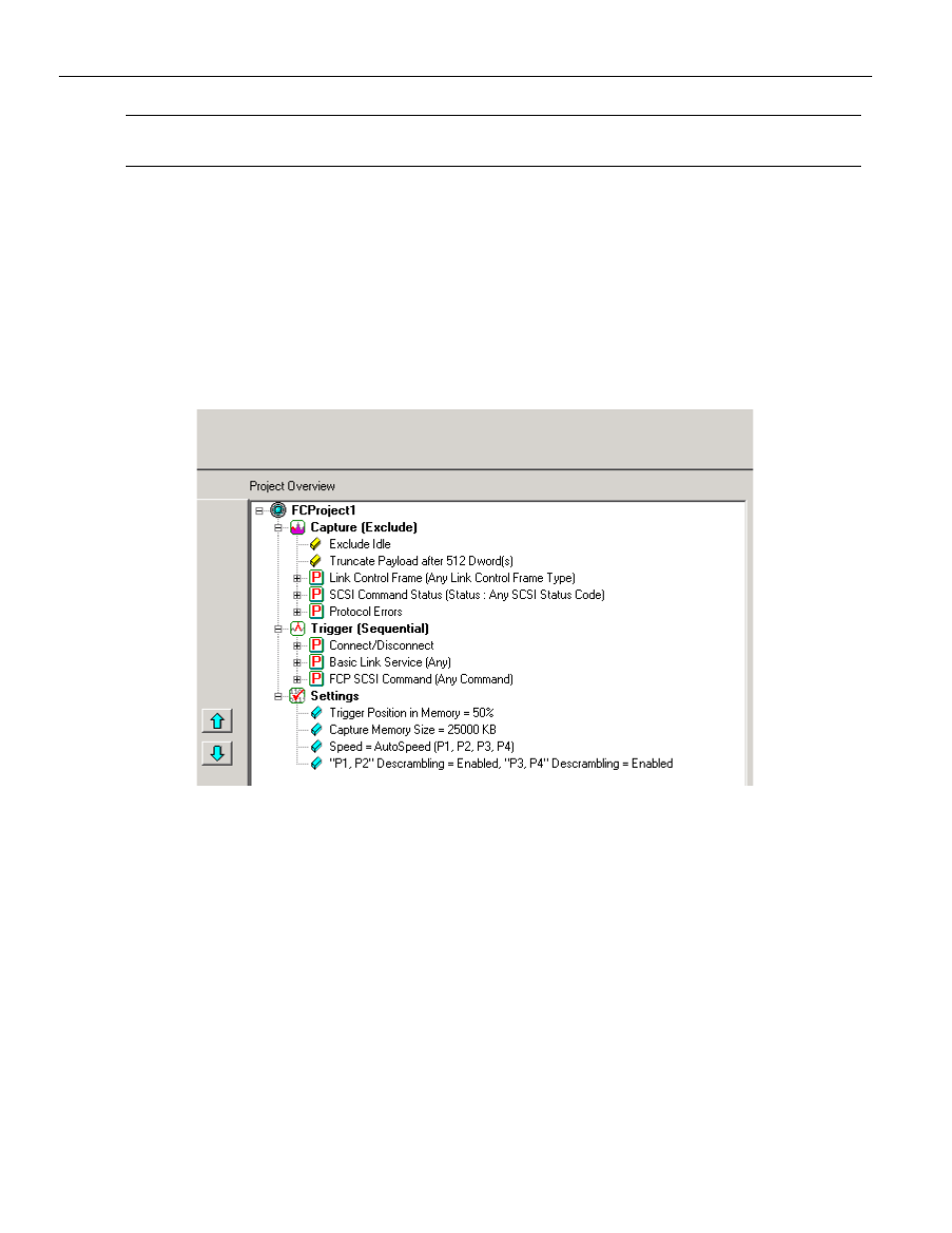

Figure 2.126: Triggering Order
