SierraFC M164 Protocol Analyzer User Manual 273
Port Configuration for FC InFusion Teledyne LeCroy
When using Jammer and Analyzer, the Select Port Configuration dialog has options JA as
shown in
Figure 4.7 .

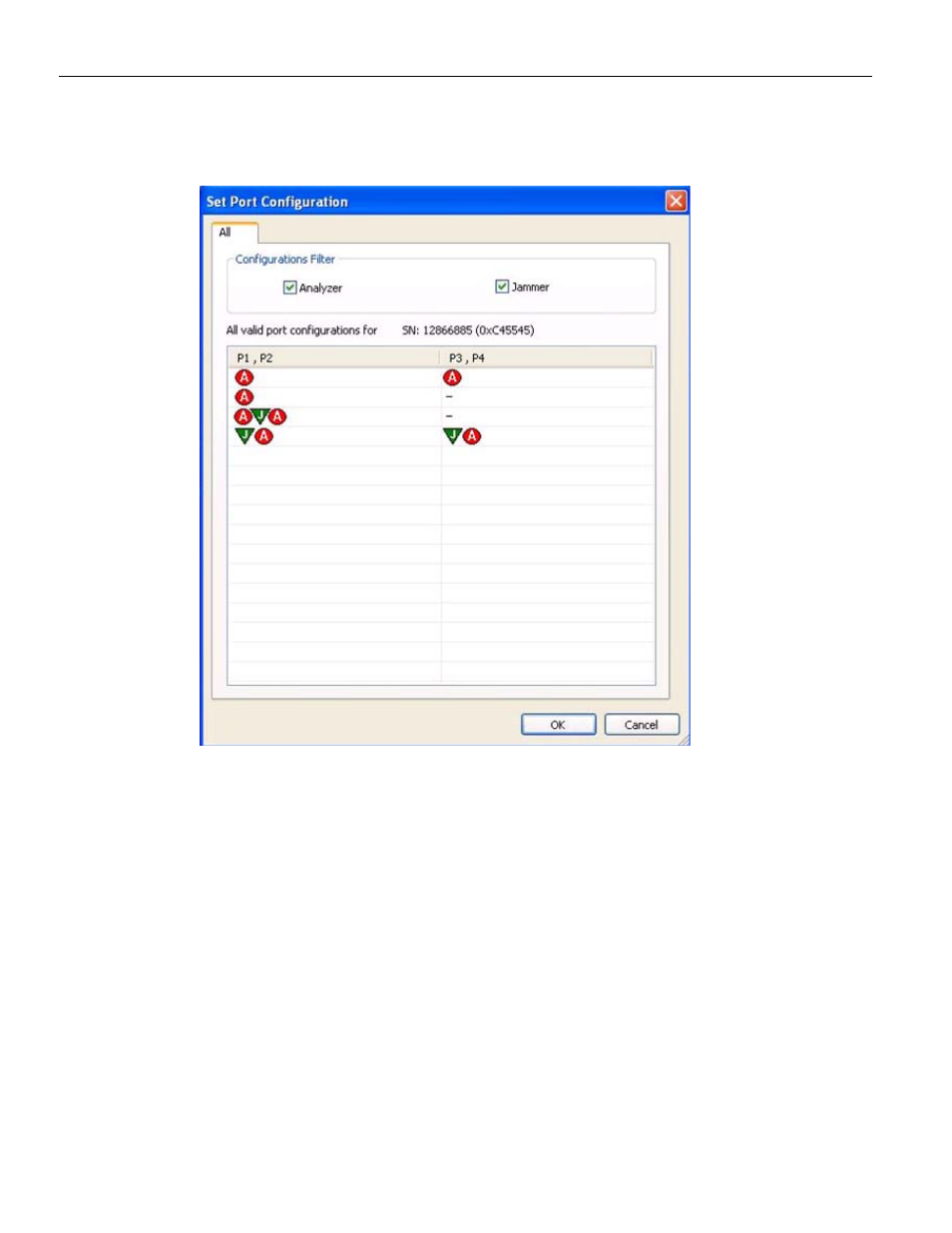

Figure 4.7: Select Port Configuration Options with Jammer and Analyzer
When AJA port configuration is selected, the user MUST connect P2 to P3 directly
(externally) and the other ports should be connected to the FC ports being jammed. In
this configuration, P1/P4 shows before jam traffic and P2/P3 shows after jam traffic. As a
result, the capture/trigger resource of ”Request, Reply” should only be used considering
the effect of the Jammer (delay, modification and jamming).
