SierraFC M164 Protocol Analyzer User Manual 317
Running Scenarios Teledyne LeCroy
You must follow some simple rules when creating sequences:
TABLE 4.6: Sequence Rules
Summary of Scenario Creation
The suggested process of creating and executing a Scenario is as follows:
1. Create a Scenario in the main library.
2. In Simple Mode, click on the links to specify an Arm Event (optional), a Jam Event
and Jam Actions.
3. In Advanced Mode, click on the links to create Global Rules Events and Actions and/
or to create Sequence and State Events and Actions.
4. Complete the Scenario and Save it.
5. Select the Scenario in the File Library that you want to run on the device.
6. To run the Scenario, click the Start Scenario button. The device starts to monitor/
modify traffic.
Running Scenarios
If you use a general library as a Scenario archive, then the process of executing a Scenario
is as follows:
1. In the Teledyne LeCroy FC InFusion application the Port Assignment window displays
in the application window. This Port Assignment panel displays the Serial Number of
the device it is connected to, the Ports and their Function, the Library and Scenario.

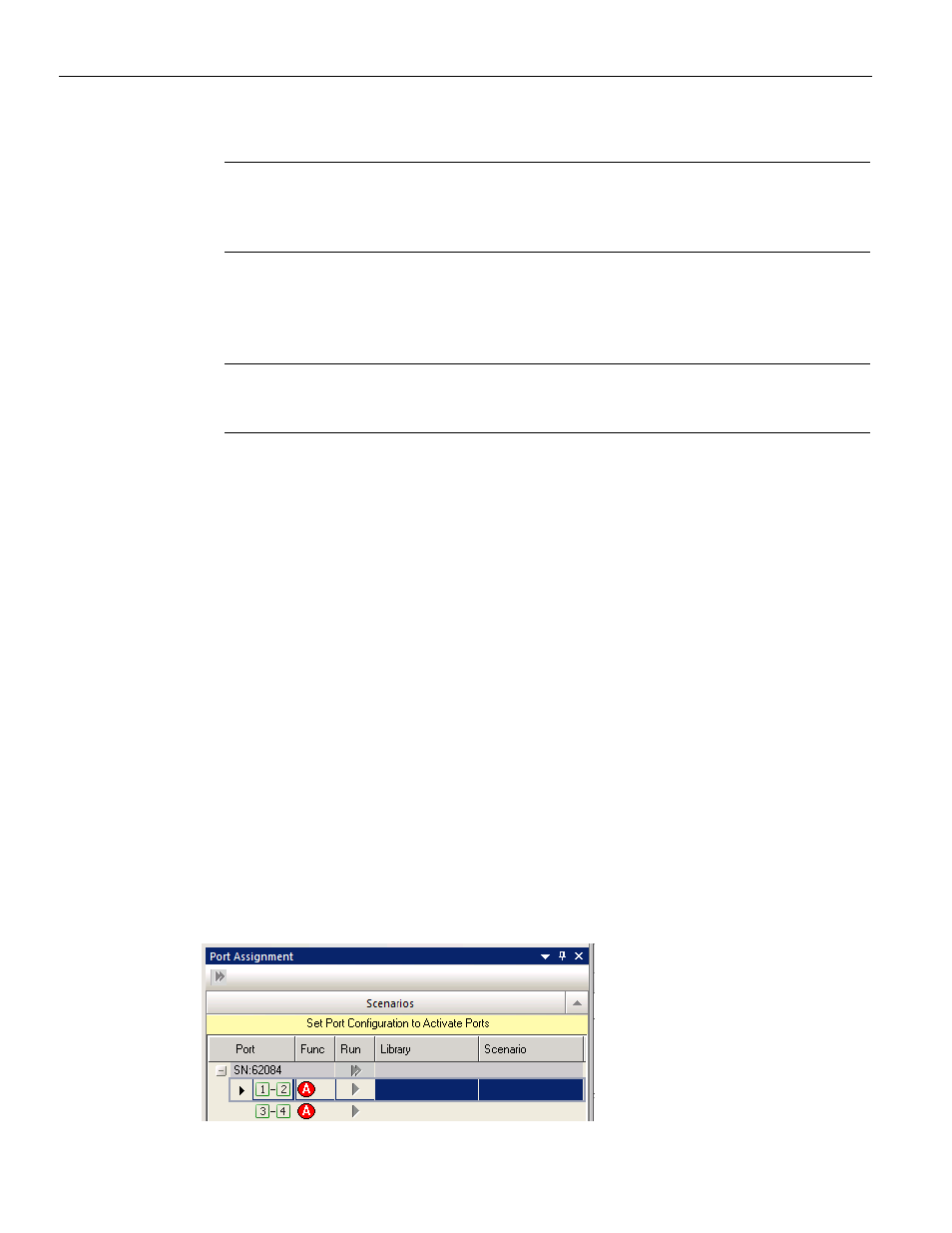

Figure 4.31: Port Assignment Panel
You can use only two branch Actions per state.
When you specify Actions for a state, you can only use two instances of Branch to an
Existing State or Branch to a New State. If you try to use more than two, a red error
message appears in the status area of the application that says “Too Many Actions.”
You can use only one restart sequence Action per state.
When you specify Actions for a state, you can only use one instance of Restart
Current Sequence or Restart All Sequences. If you try to use more than one, a red
error message appears in the status area of the application that says “Too Many
Actions.”
You can use a maximum of 255 states per sequence.
If you try to use more than 255 states, a red error message appears in the status area
of the application.
