SierraFC M164 Protocol Analyzer User Manual
193
Switching Views
Teledyne LeCroy
Packet View
Packet View displays the captured data interpreted as packets in a hierarchical view.
To display the Packet View, select View > Packet View or click the
button on the
Show View Type toolbar.

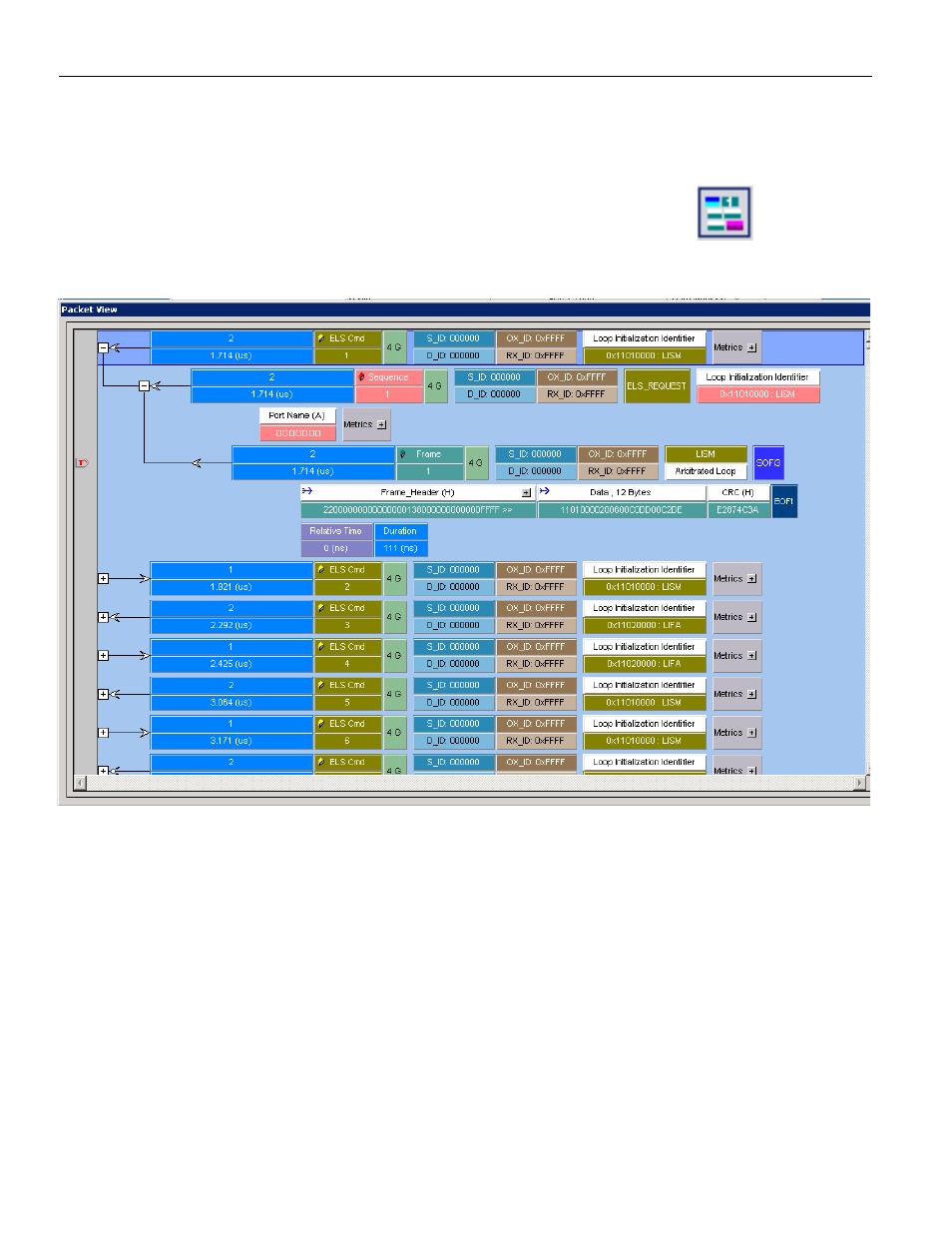

Figure 3.15: Packet View
