SierraFC M164 Protocol Analyzer User Manual 319
Running Scenarios Teledyne LeCroy
3. Double‐click a Scenario from the File Library to open the Scenario window. Changes
to the Scenario can be made and saved from this window.

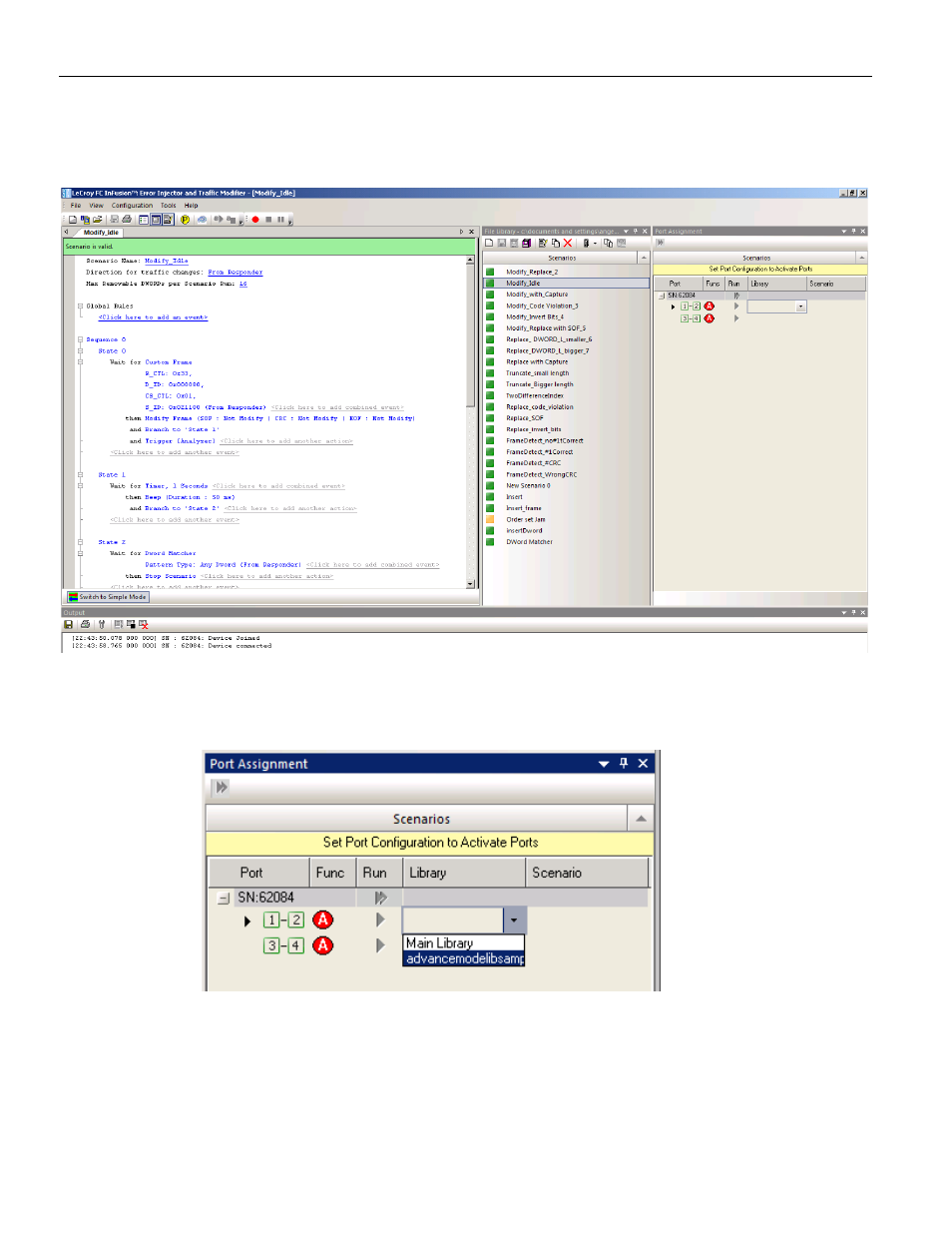

Figure 4.33: Running an Existing Scenario
4. Select the Library for Ports 1 and 2 from the drop‐down list in the Port Assignment
panel.
Figure 4.34: Selecting a Library in the Port Assignment Panel
