SierraFC M164 Protocol Analyzer User Manual 105
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Add VSAN‐FCP Frame Information Unit
Double‐click VSAN‐FCP Frame Information Unit in the Patterns Library panel to open the
VSAN‐FCP Frame Information Unit dialog.

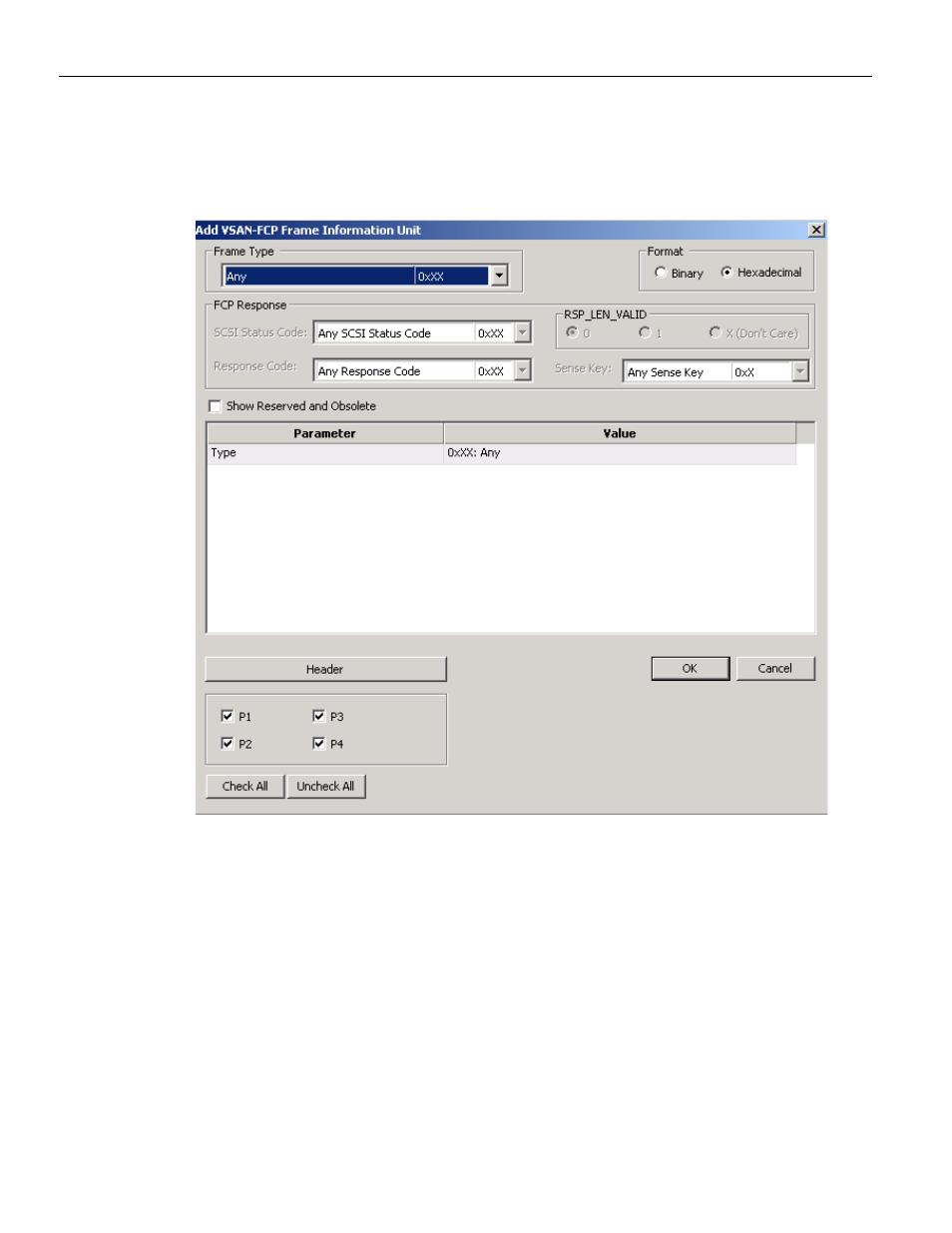

Figure 2.70: VSAN-Frame Information Unit Dialog
The format can be Binary or Hexadecimal.
To select a VSAN‐Frame Information Unit Type click the dropdown list which has the
following options:
 Any
 FCP_DATA
 FCP_CONFIRM
 FCP_XFER_RDY
 FCP_CMD
 FCP_RSP
