SierraFC M164 Protocol Analyzer User Manual

Expandability

Teledyne LeCroy

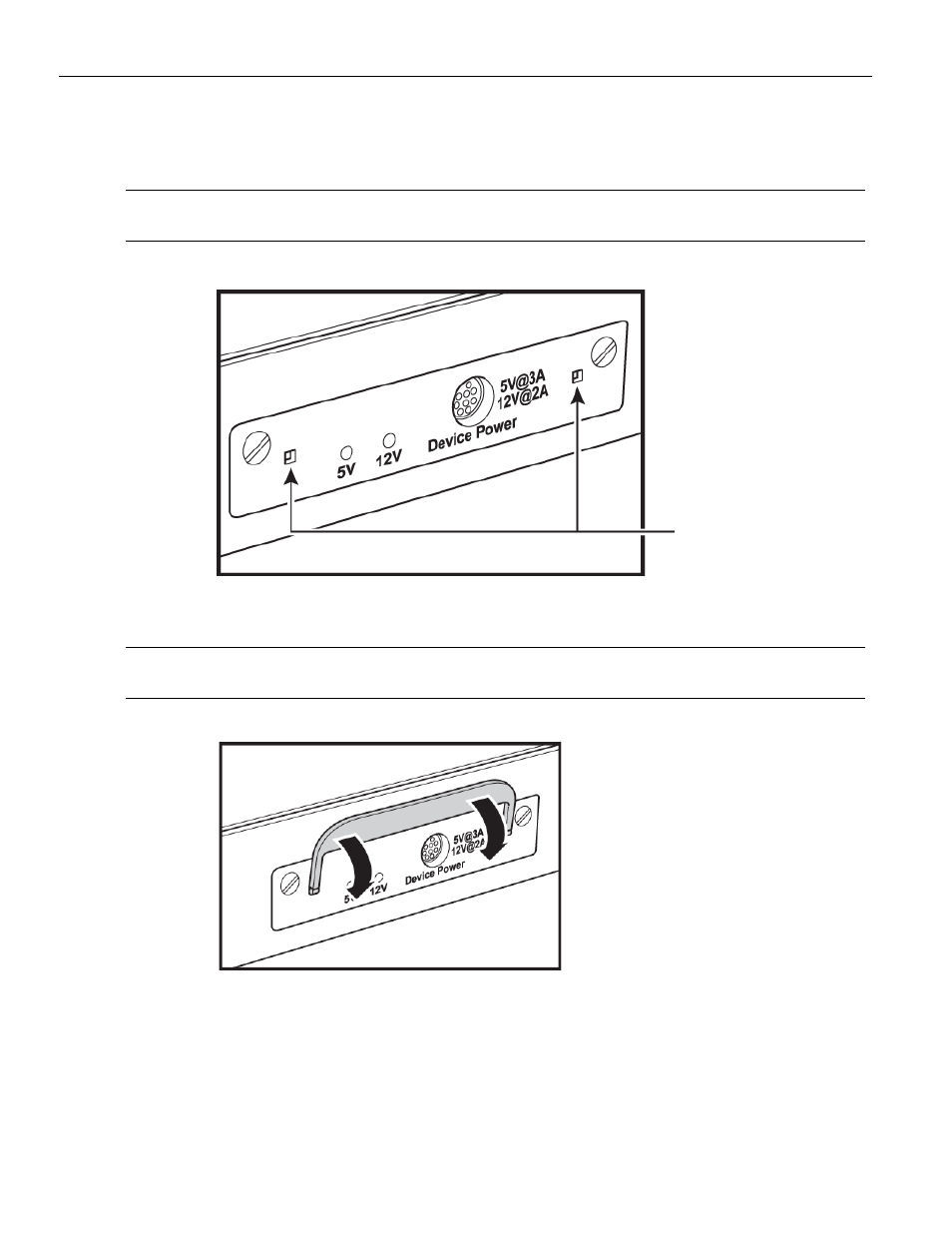

1. Unplug the system from AC power and turn the system so the expansion port is

facing you. Note the two retaining screws and the holes for the extraction tool that
are located on the panel of the expansion card.

Note:

The SierraFC M164 Protocol Analyzer does not support the power expansion card. The method

of inserting other expansion cards is the same.

2. Insert the extraction‐tool prongs into the holes in the expansion card panel.

Note:

If the prongs do not slip easily into the holes, use a small nail file or similar device to remove

paint from the prongs

3. Rotate the extraction tool to a horizontal position to lock the prongs into place and

make a handle

Holes in the
Expansion Card
