12 SierraFC M164 Protocol Analyzer User Manual
Receiving Your Analyzer
The analyzer package includes the following components:
 SierraFC M164 Analyzer identified in the packing list
 SierraFC M164 Quick Start
 USB A‐B 2.0 cable, 1.8 meter
 Ethernet cable, 10 feet
 Three‐Prong AC power cord
 Rack Mount and Rack Mount Installation Guide
 Installation CD ROM with software and documentation
Unpacking the Analyzer
Inspect the received shipping container for any damage. Unpack the container and
account for each of the system components listed on the accompanying packing list.
Visually inspect each component for absence of damage. In the event of damage, notify
the shipper and Teledyne LeCroy Corporation. Retain all shipping materials for shipper’s
inspection.
Analyzer Features
The Analyzer has the following features:
 Power Switch
 Trigger, Error, Link, Speed, and Frame LEDs (see next page)
 Port 1 connector
 Port 2 connector
 Port 3 connector
 Port 4 connector
 Status and Configuration LCD Display
 Configuration Buttons
 Front Panel Configuration Buttons
 External Trigger Input and Output
 USB port for host machine connectivity
 Ethernet port for network connectivity
 19‐inch Rack Mountable. Refer to the Rack Mount Installation Guide.

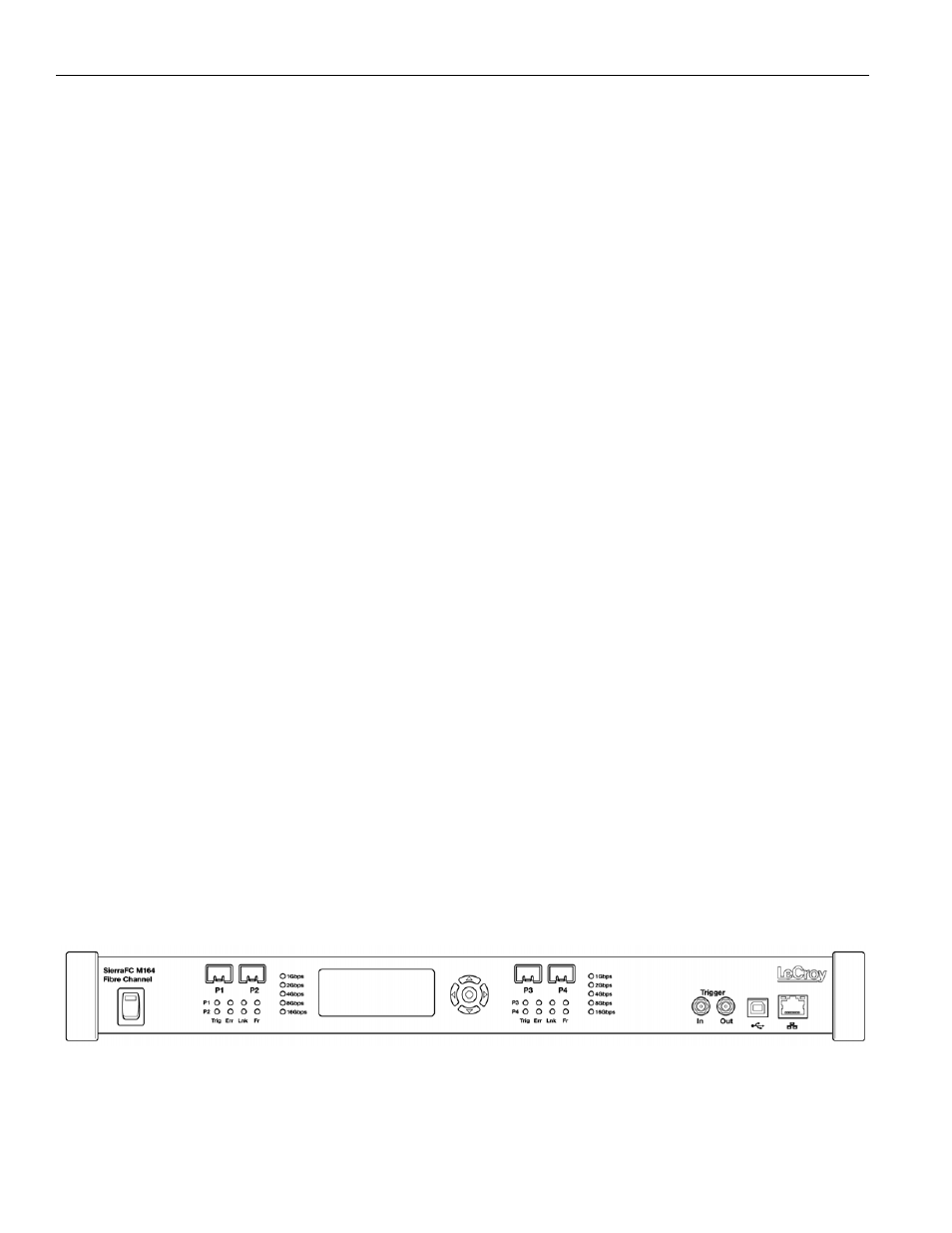

Figure 1.2: Front Panel
