Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
148 SierraFC M164 Protocol Analyzer User Manual
Custom Frame ‐Type
The Custom Frame has an additional Type dropdown menu under the Value pane on the
right of the dialog as shown in the following figure.

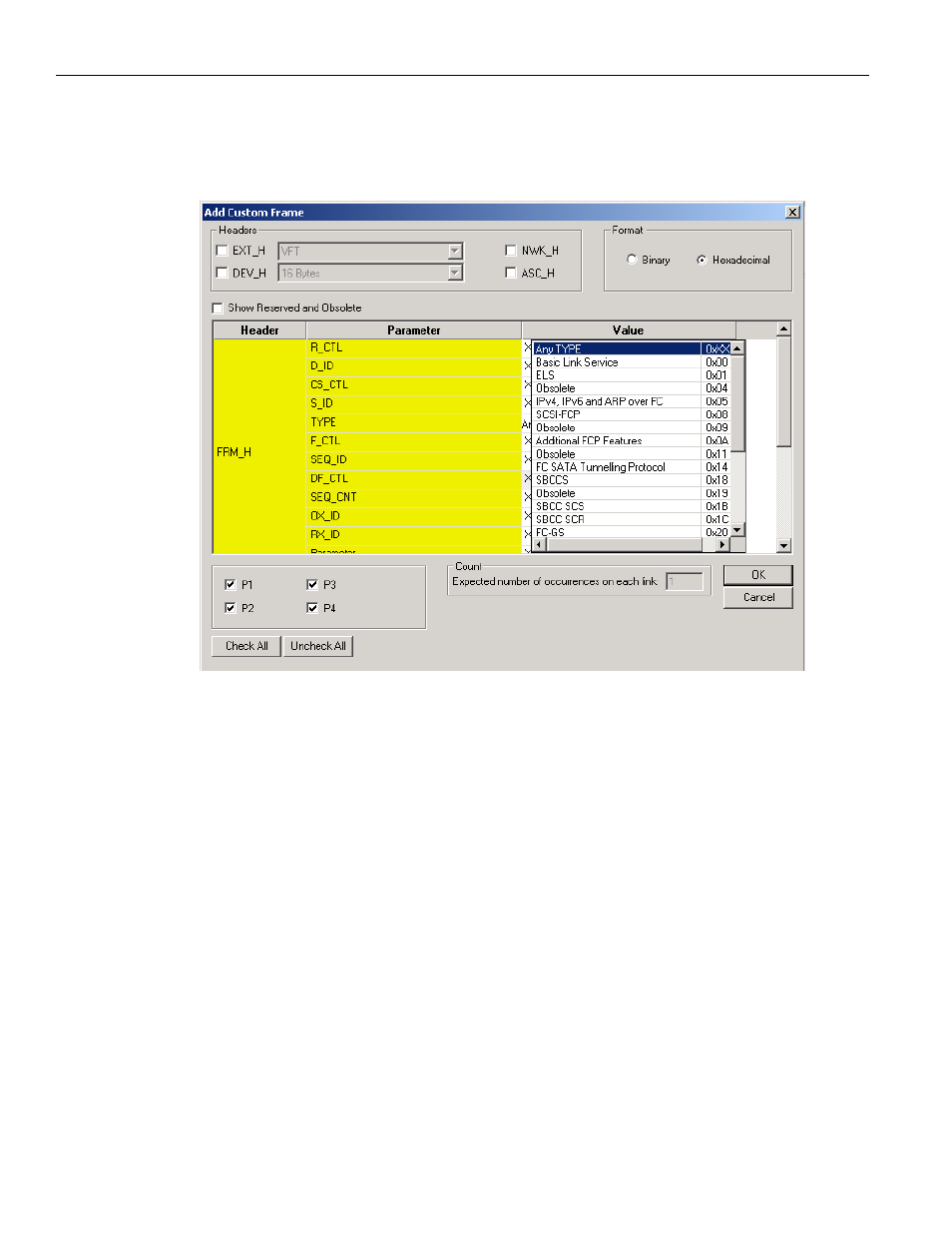

Figure 2.113: Add Custom Frame - Type Drop-down List
To select Type click the dropdown list which has the following options:
 Any Type
 Basic Link Service
 ELS
 Obsolete
 IPv4, IPv6 and ARP over FC
 SCSI‐FCP
 Obsolete
 Additional FCP Features
 Obsolete
 SBCCS
 Obsolete
 SBCC SCS
 SBCC SCR
 FC‐GS
 FC‐SW
 Obsolete
 Intr‐Fab Rtr Inter. Link Srvs
 HIPPI‐FP
