Teledyne LeCroy

Expandability

18



SierraFC M164 Protocol Analyzer User Manual

Cables to Use

Connect from Hard Drives using SFP and a cable suitable for your setup.

Connect from Initiators using SFP and a cable suitable for your setup.

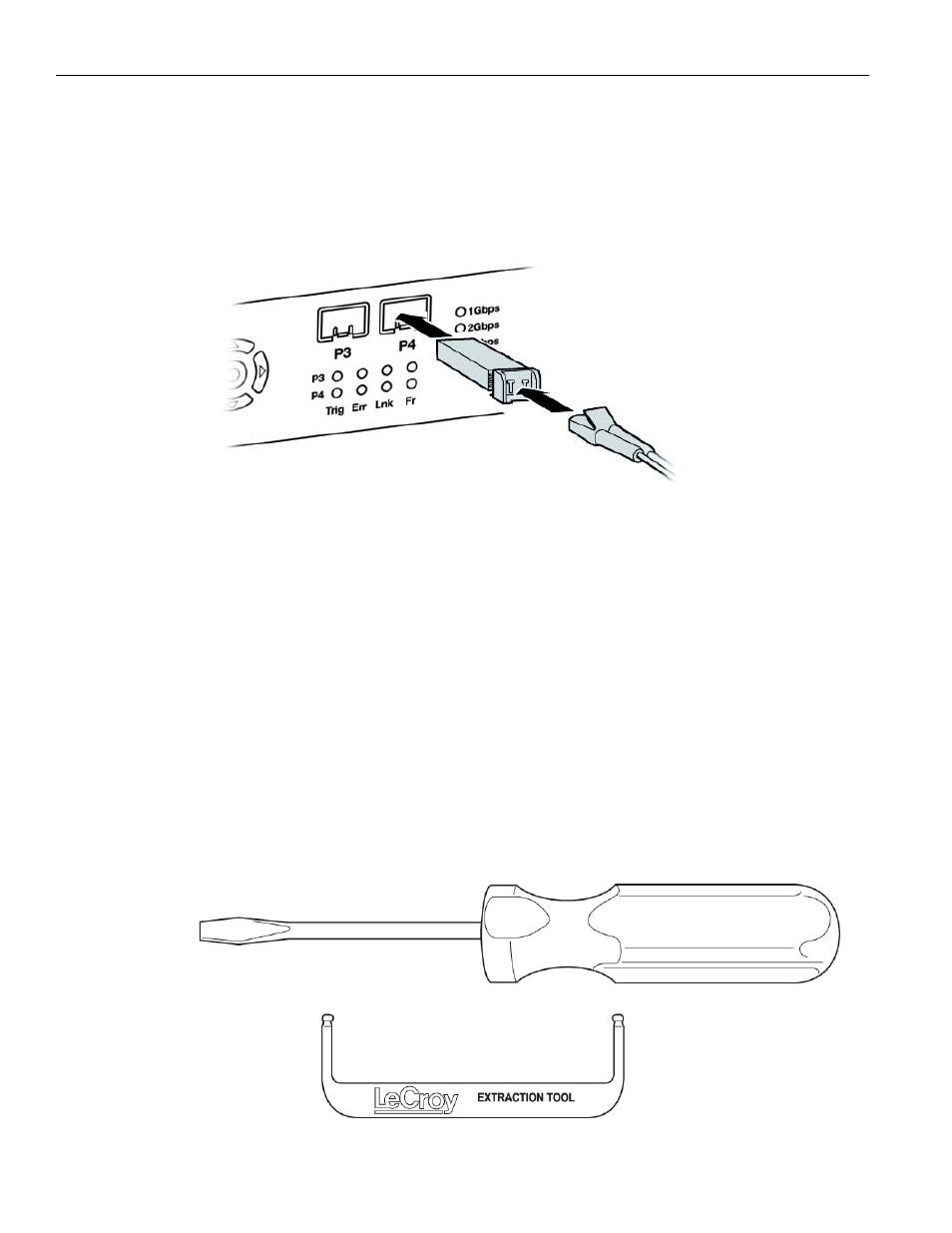

Figure 1.8: Analyzer Connections

Expandability

You can expand by:

Cascading with CATC SYNC Expansion Cards

Using the Power Expansion Card (optional)

You can remove expansion cards with two simple tools.

Removing Expansion Cards

You can remove expansion cards using two tools:

Standard (flat blade) 3/16” screwdriver

Teledyne LeCroy Extraction Tool (part number 230‐0160‐00

To remove an expansion card, follow these steps:
