SierraFC M164 Protocol Analyzer User Manual 127
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
VSAN‐ FICON[Control]‐Control Function
The VSAN‐FICON[Control] has an additional Control Function dropdown menu under the
Value pane on the right of the dialog as shown in the following figure.

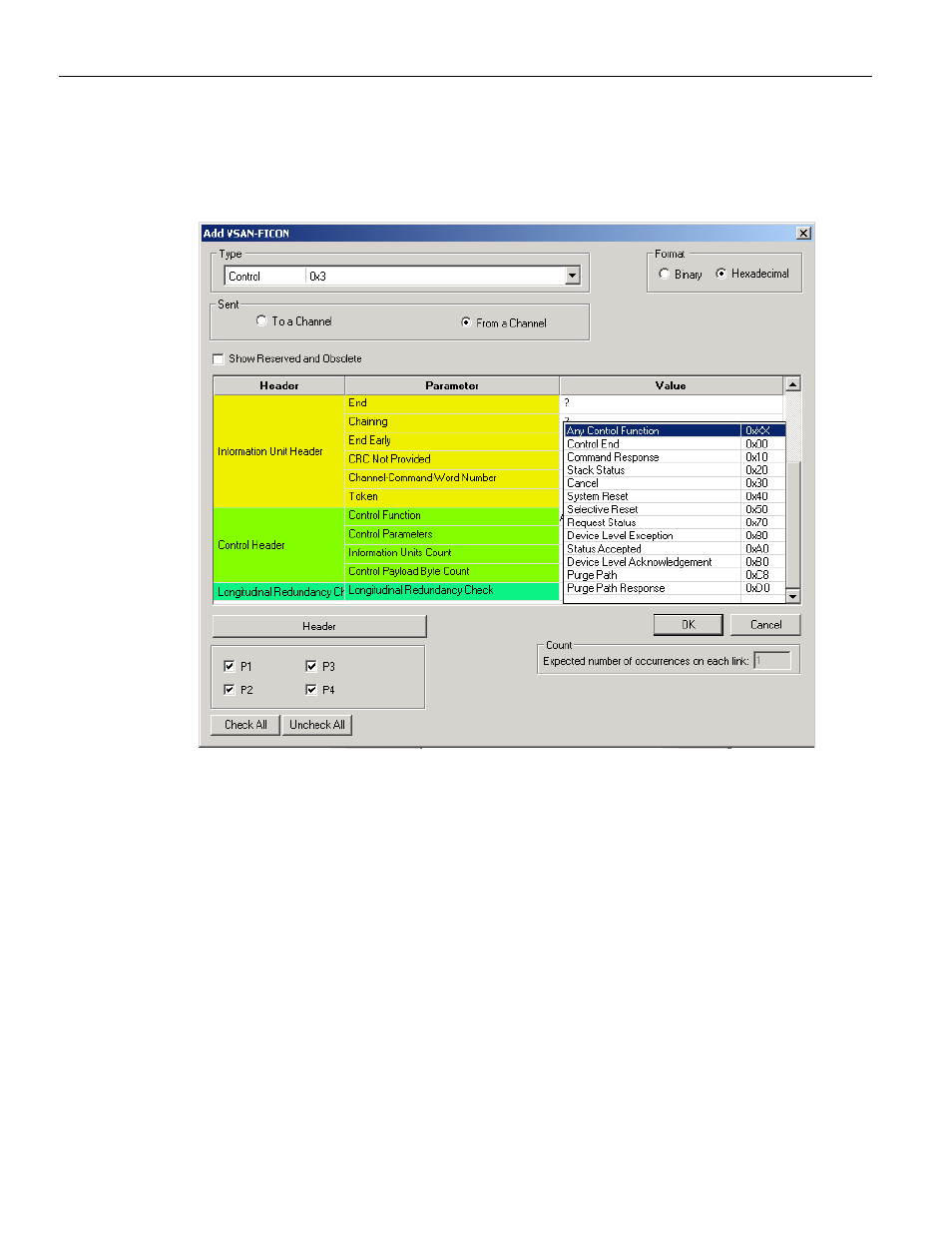

Figure 2.92: VSAN-FICON[Control] - Any Control Function Drop-down List
To select a Control Function click the dropdown list which has the following options:
 Any Control Function
 Control End
 Command Response
 Stack Status
 Cancel
 System Request
 Selective Reset
 Request Status
 Device Level Exception
 Status Accepted
 Device Level Acknowledgement
 Purge Path
 Purge Path Response
