SierraFC M164 Protocol Analyzer User Manual

55

Easy Mode (Pre‐Defined Setups)

 Teledyne LeCroy

FCP Task Management

Double‐click FCP Task Management in the Pattern window to open the Add
FCP Task Management Pattern dialog.

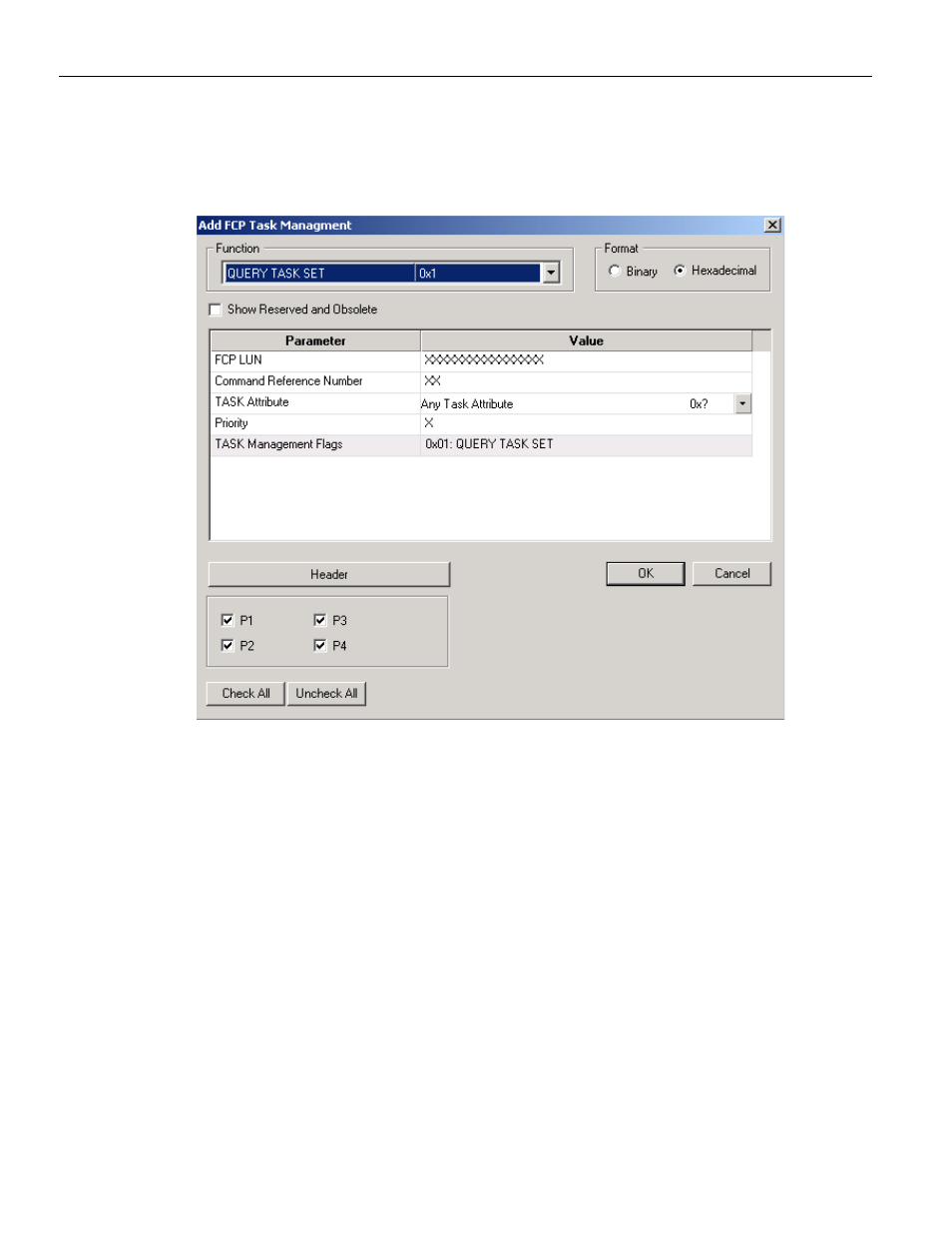

Figure 2.20: FCP Task Management Pattern Dialog

The format can be Binary or Hexadecimal.

To select a Function, click the dropdown list.
