Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
168 SierraFC M164 Protocol Analyzer User Manual

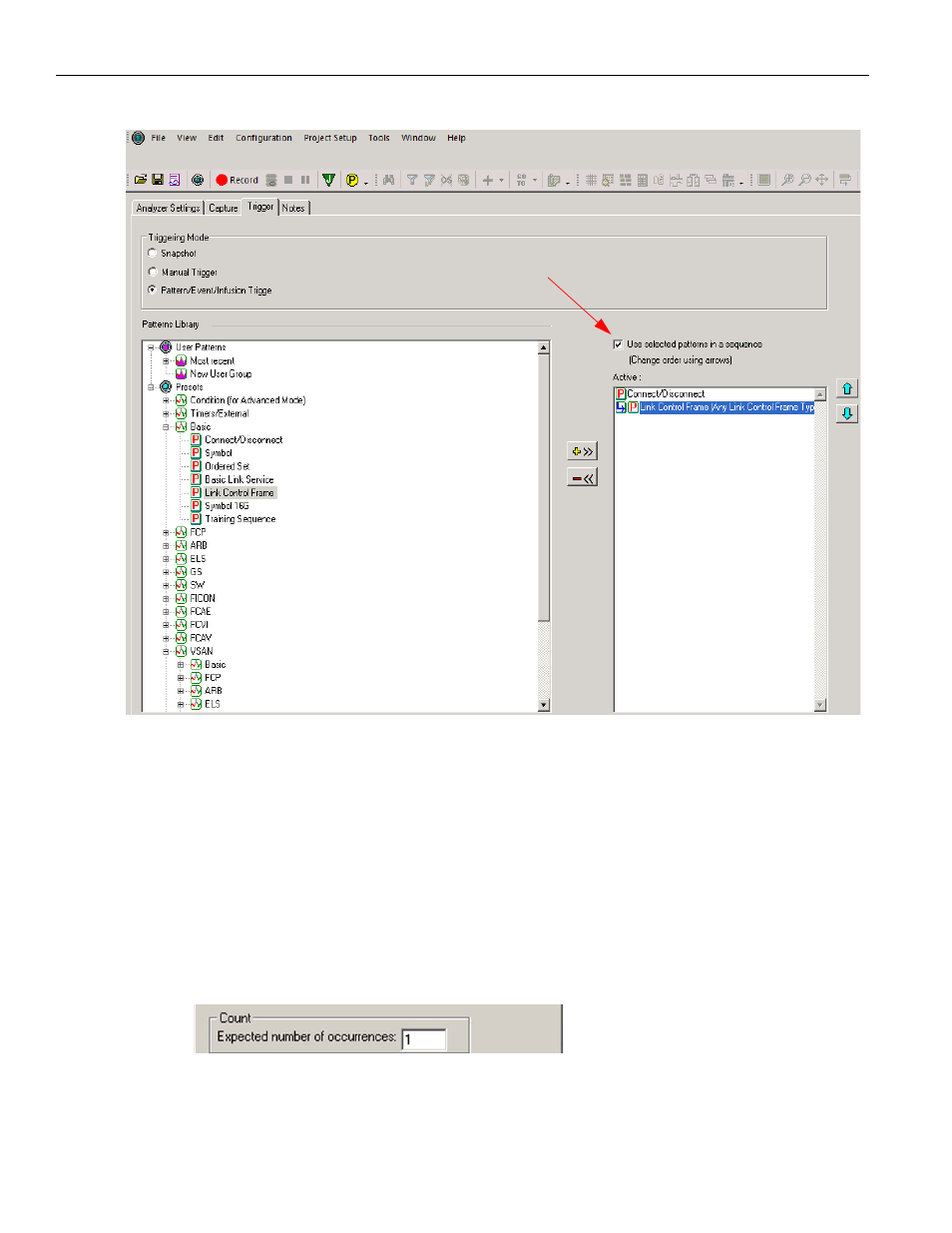

Figure 2.124: Select Sequential Trigger Mode
Timer
See
“Timer” on page 157 for more information.
Defining Patterns
The definition of patterns for the sequential trigger mode is identical to the Pattern
mode, with the following exception:
In sequential triggering mode, all the pattern dialogs display the option for setting to
count the expected number of occurrences on each link. This allows you to specify the
number of times that the pattern must occur before triggering or proceeding in the
trigger sequence.
Figure 2.125: Number of Occurrences
