Teledyne LeCroy

Settings in Advanced Mode

304

SierraFC M164 Protocol Analyzer User Manual

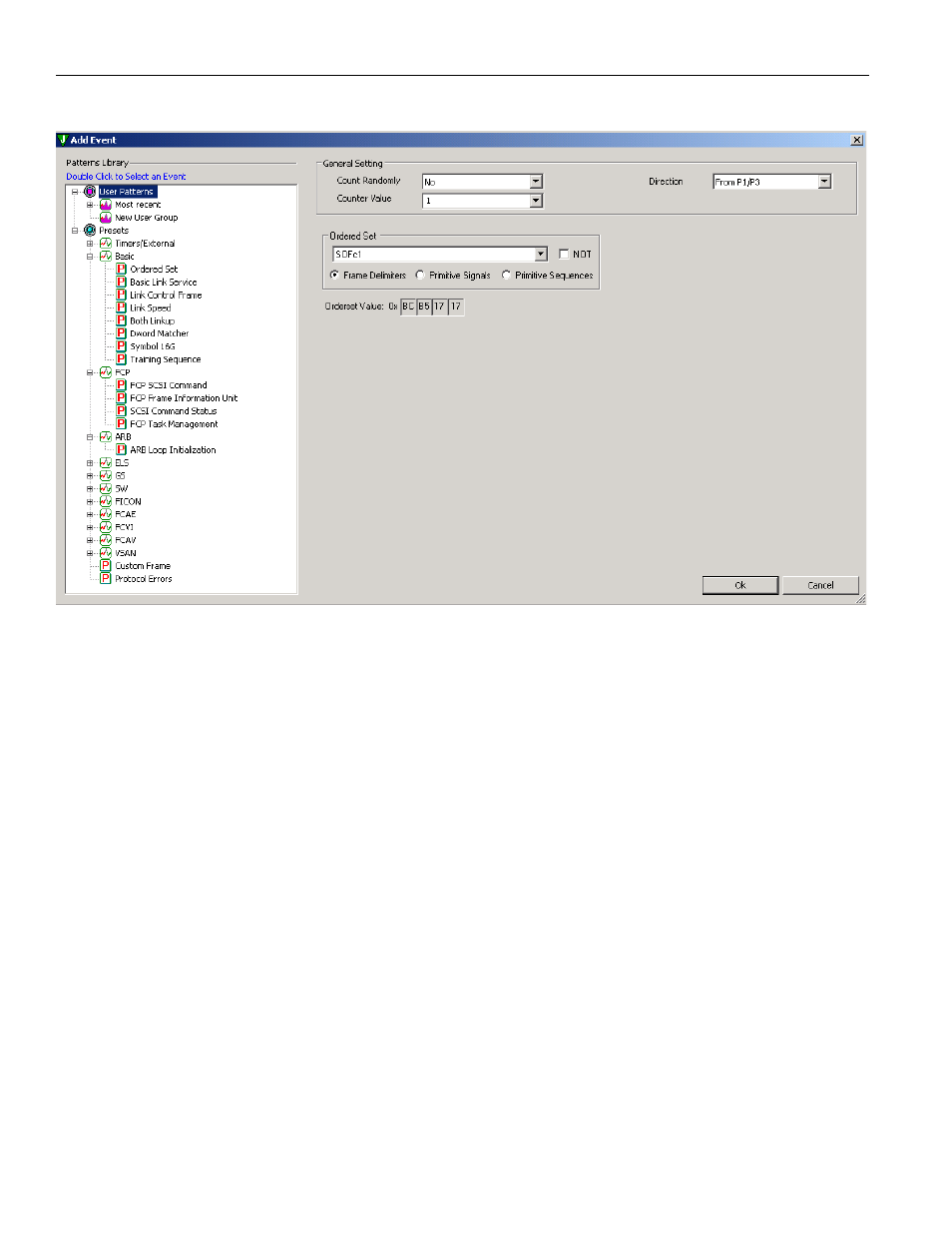

Figure 4.19: Event Properties Dialog

While many Events are line conditions, an Event also can be a condition that occurs
within a FC InFusion device (for example, detection of a trigger signal from another
device).


Table 4.1 on page 277

and

Table 4.2 on page 284

lists supported Events in Simple Mode

and Advanced Mode respectively. Note that some Events are applicable only in the
context of creating sequences, in Advanced Mode (those Events appear on the drop‐
down list only if you are creating a sequence). Sequences can have multiple states, and
they allow branching between states.
