Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
44 SierraFC M164 Protocol Analyzer User Manual
Patterns and Data Capture Setup
You can refine data capture by choosing Pattern and then selecting specific patterns for
capture. Additionally, you can define a different set of patterns to capture after trigger.
To define specific patterns for capture, click the Pattern button to display the Capture tab
for Pattern (see Figure 2.10 on page 44. You can drag and drop patterns from the Patterns
Library pane into the Active Pane. You can select the pattern and use the Add and
Remove arrows to move patterns between the Patterns Library and the Active pane. You
can also copy and sort patterns

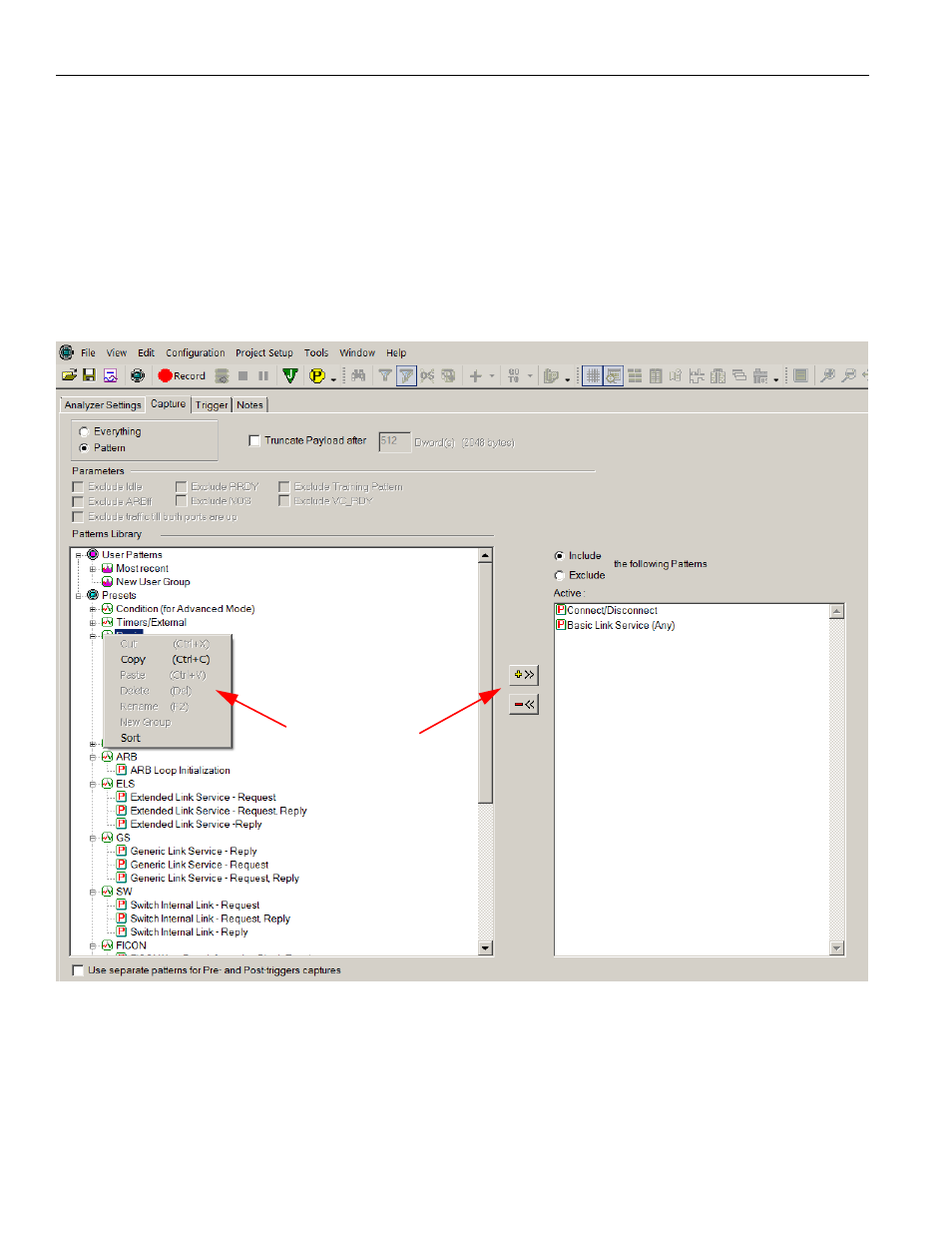

Figure 2.10: Choosing Capture Patterns
Add and
Remove
arrows
