SierraFC M164 Protocol Analyzer User Manual

Easy Mode (Pre‐Defined Setups)

Teledyne LeCroy

Ordered Set

Double‐click Ordered Set to open the Add Ordered Set Pattern dialog.

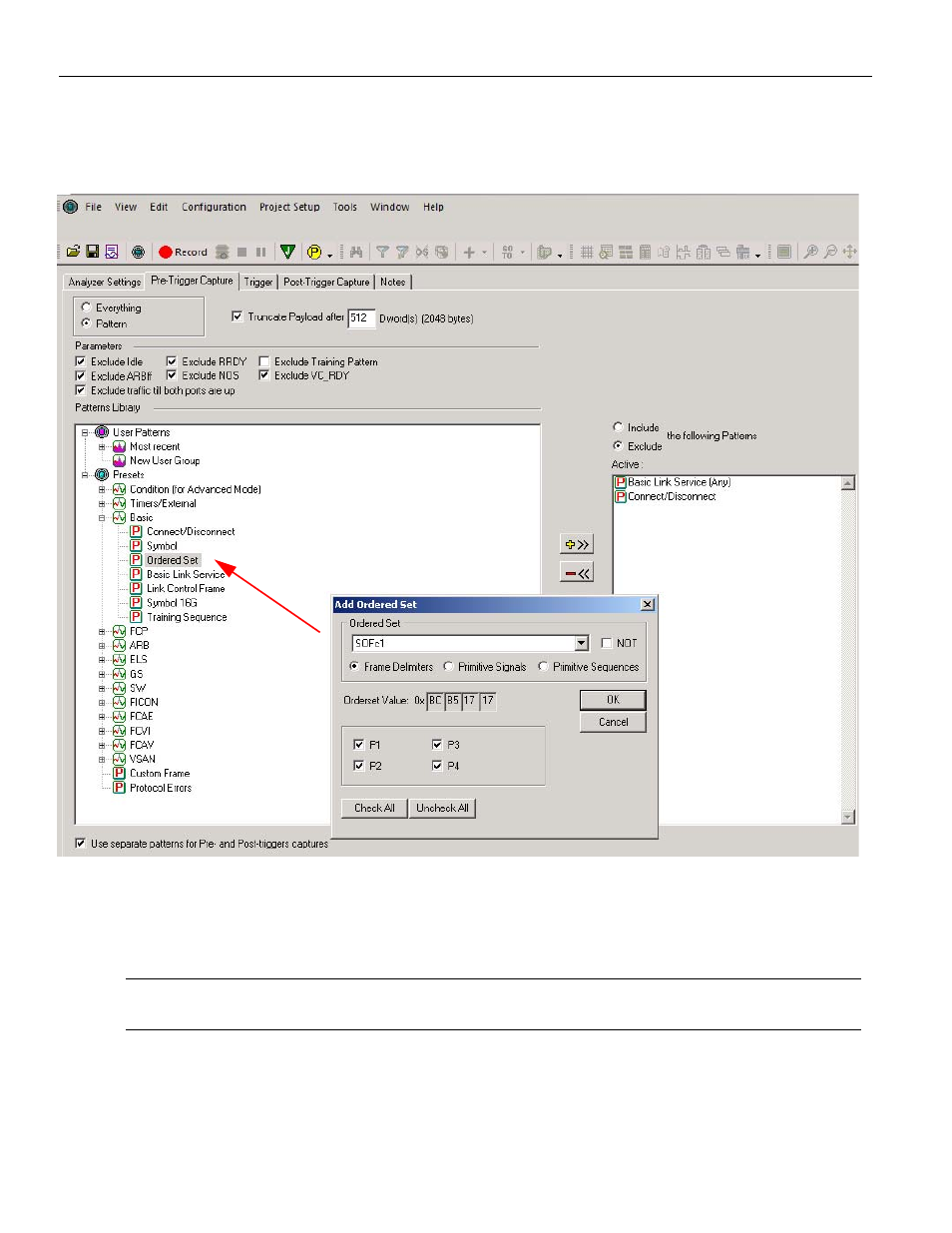

Figure 2.14: Ordered Set Pattern Dialog

To select an Ordered Set, click the dropdown list. You can choose NOT to trigger on
anything that is NOT the defined pattern. You can choose Frame Delimiters, Primitive
Signals, or Primitive Sequences.

Note:

The Symbol pattern is only available on the Trigger tab, and when using the Ordered Set pattern,

only the Exclude option is available.
