Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
 Basic
 Connect/Disconnect
 Symbol
 Ordered Set
 Basic Link Service
 Link Control Frame
 Symbol 16G
 Training Sequence
Symbol 16G
Double‐click Symbol 16G in the Pattern Library to set the trigger on Symbol 16G.

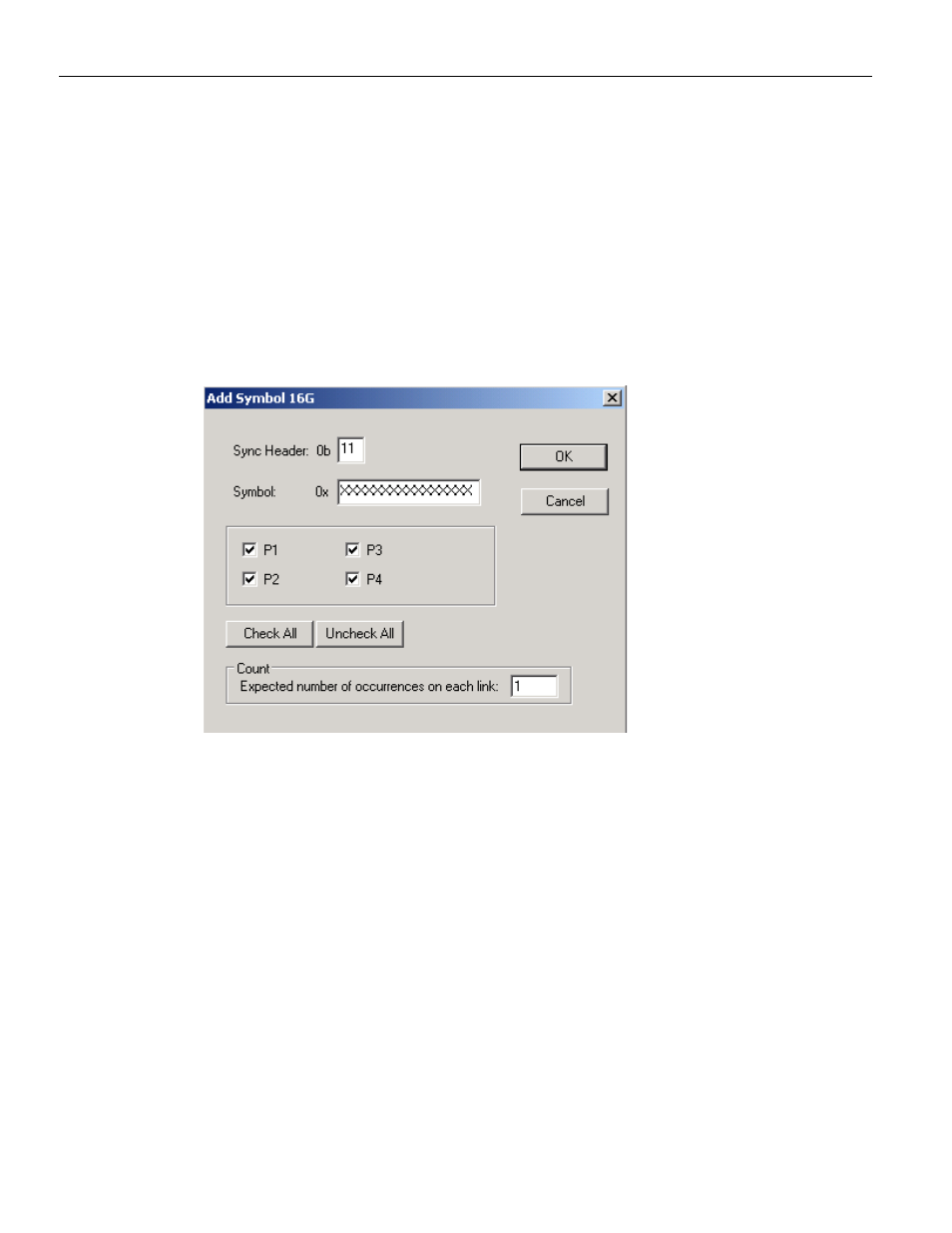

Figure 2.118: Add Symbol 16G Dialog
The Sync Header value and the Symbol pattern can be entered.
The Ports can be selected and you can enter the Expected number of occurrences on
each link in the Count field.
