Command Series Migration to MOD 30ML
Function Codes – Gallery Tutorial
21. Add the Display Tag to the Display Interface Block: The next step is to add the display
tag of the display block we configured in the previous steps to the display list in the
display interface block. During runtime, you can scroll through the displays in this list by
pressing the Tag button on the instrument.

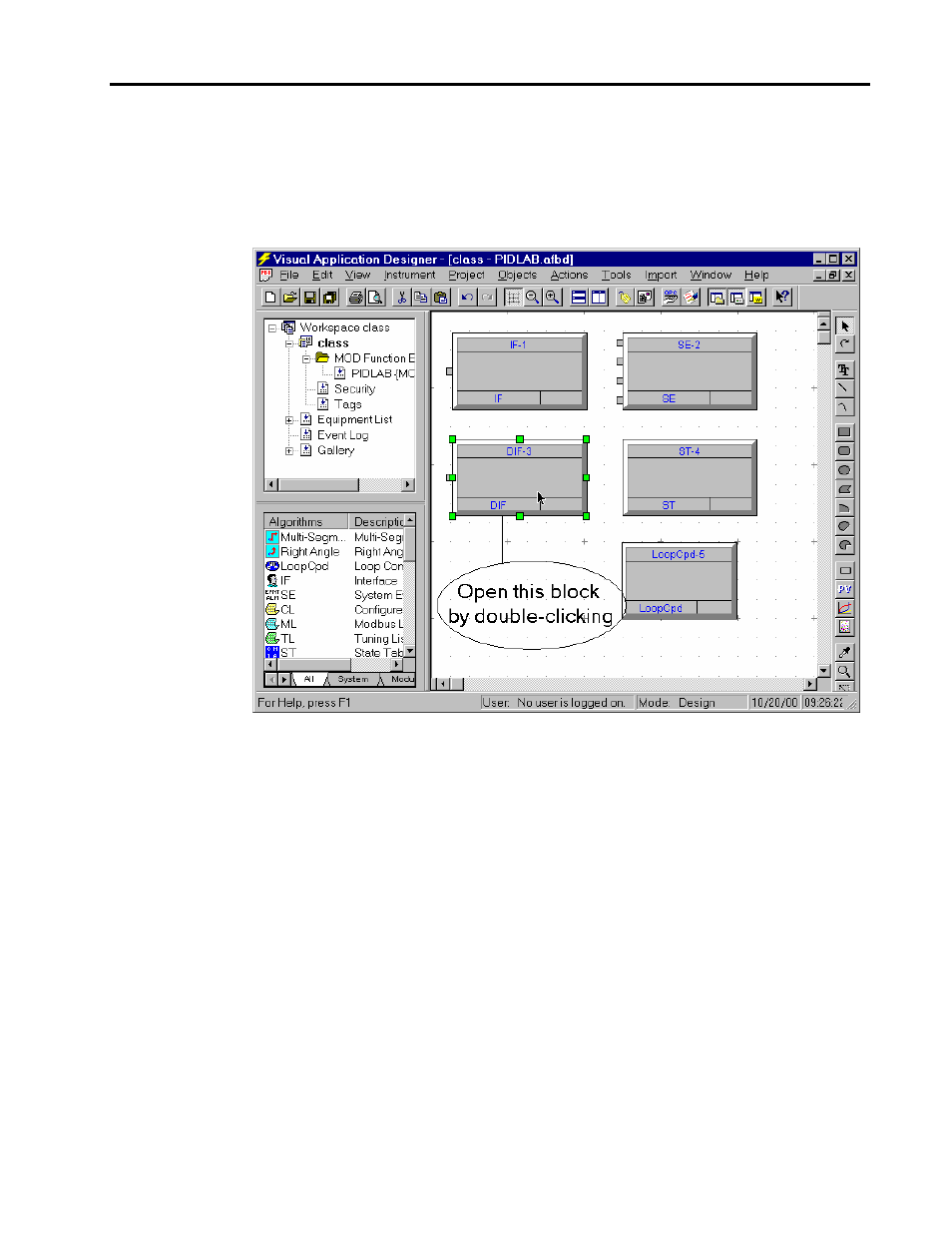

• Start by opening the DIF (Display Interface) block as shown in the figure below:
Figure 2 .51.
Closing Compound
• Click on the New button on this block as shown in figure below:
2 - 37
