Single Loop Process Controller Instruction Manual

Ratio (PID) Controller 77

7.2 Ratio (PID) Controller Front Panel Pushbuttons

The front panel push buttons for the Ratio (PID) Controller are illustrated in

Figure 7-3

and defined in

Table 7-1

.

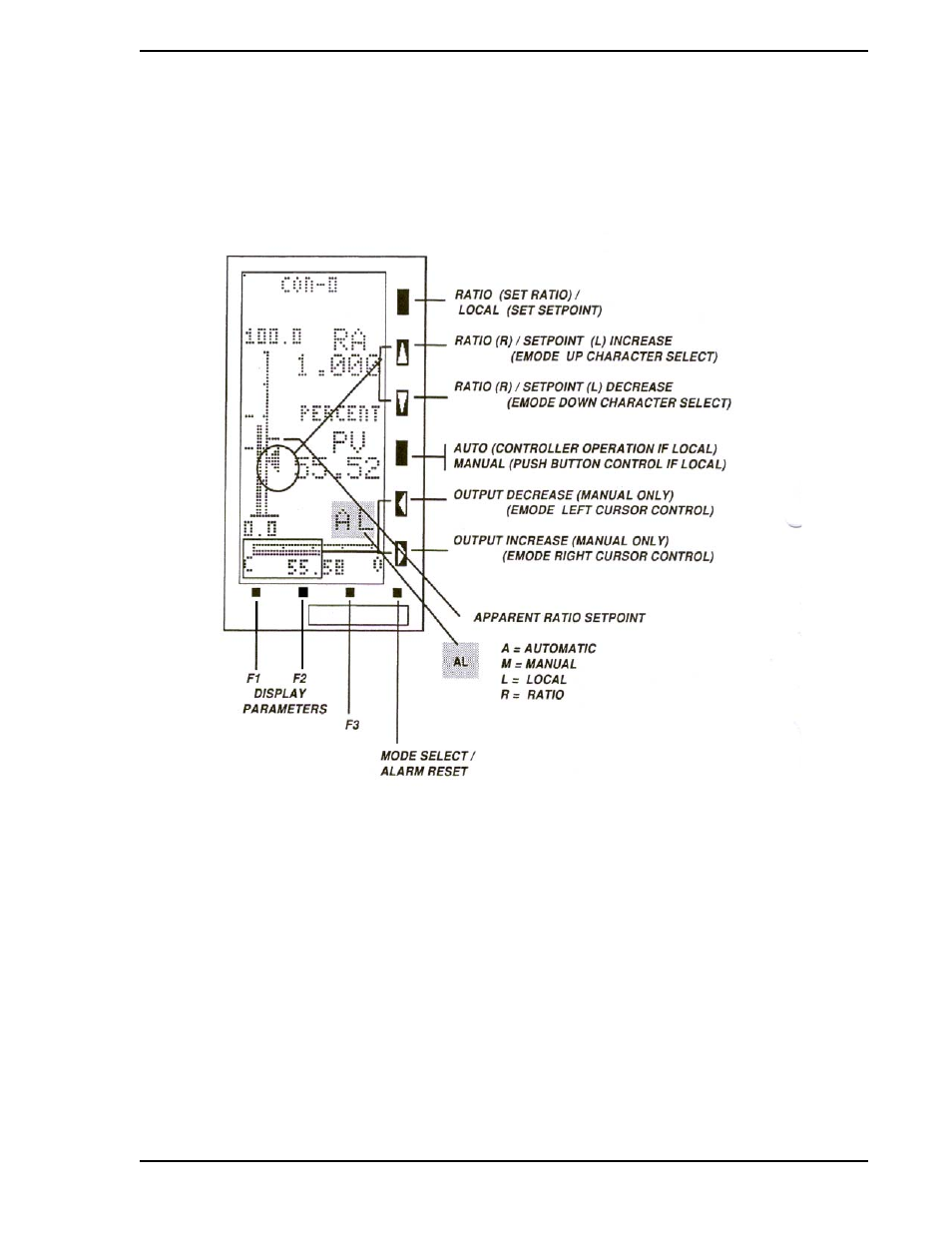

Figure 7-3. Ratio (PID) Controller Pushbuttons
