Single Loop Process Controller Instruction Manual

Parameter Display 97

9.1 Parameter Display Configuration Settings

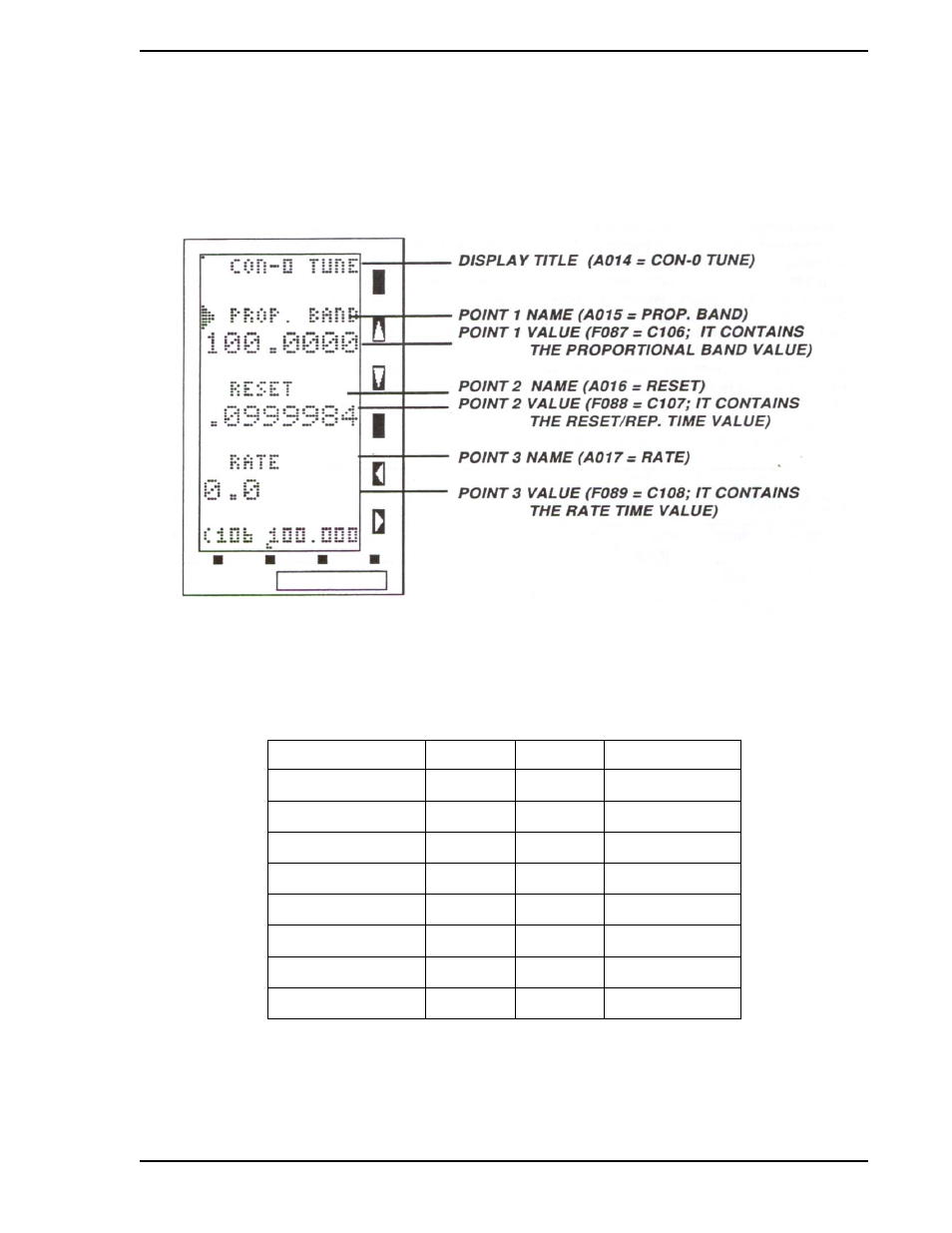

Figure 9-2

is an illustration of the parmeter display with datapoint call outs.

Table 9-2

is an abbreviated

parameter display configuration table.

Figure 9-2. Parameter Display Datapoint Selections

Table 9-2. Parameter Display Module

Title

Symbol

PAR1

Default

Title

PTAG

A014

CON-0 Tune

Point 1 Name

PNA

A015

Prop. Band

Point 2 Name

PNB

A016

Reset

Point 3 Name

PNC

A017

Rate

Point 1 Designator

PDA

F087

C106

Point 2 Designator

PDB

F088

C107

Point 3 Designator

PDC

F089

C108

Modify Disable

PMD

L313

0
