Single Loop Process Controller Instruction Manual
34 Front Panel

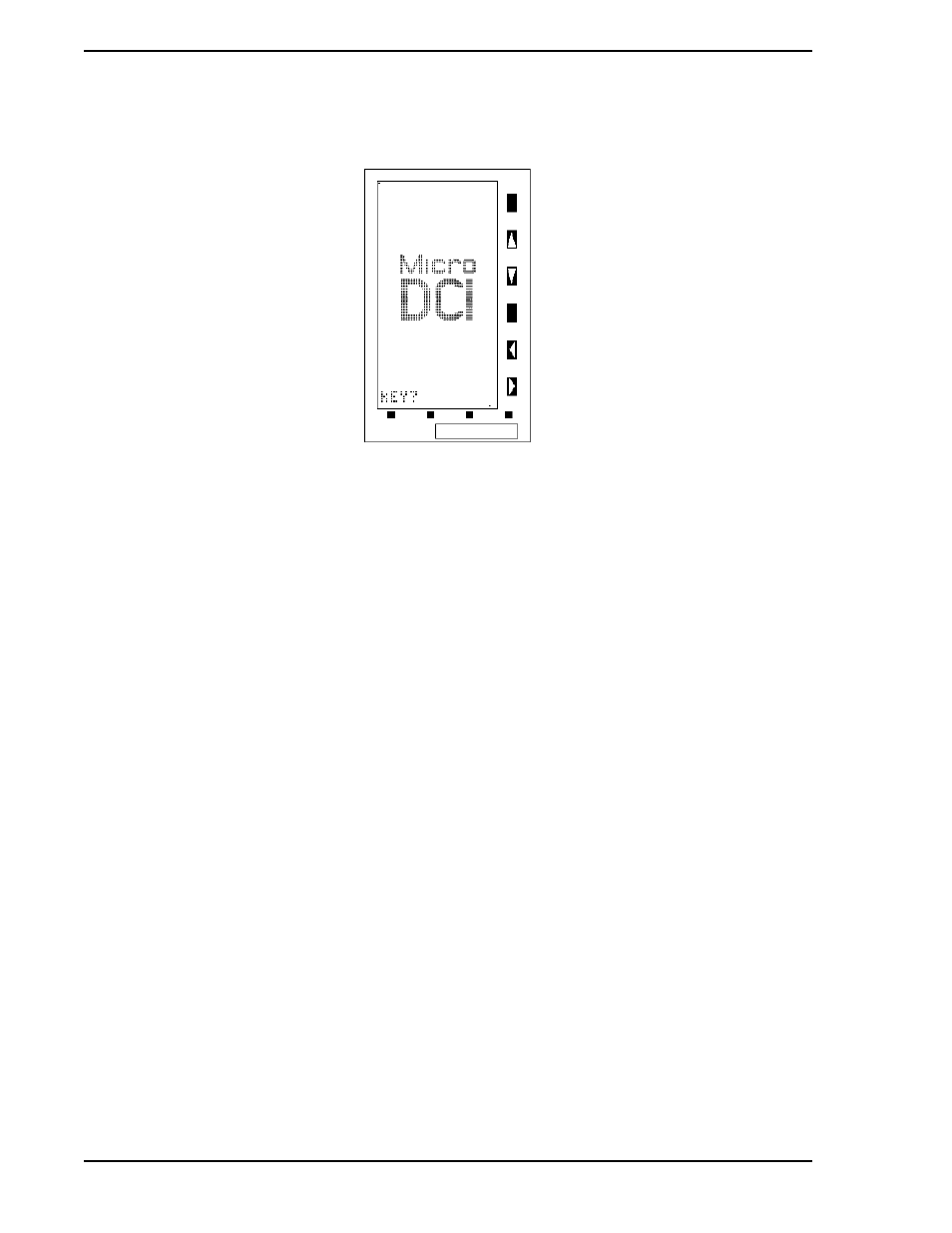

Figure 3-14 illustrates the KEY? prompt.
3.4 Front Panel Pushbutton Alternatives
There are four alternative methods other than the front panel push buttons for accessing and changing
database parameters. All four methods to display and/or alter database parameters are listed as follows:
1. Using an IBM PC compatible computer running the MC5FIG.EXE configuration program that is
supplied as part of the 53HC3300 software package. This procedure is included in the
instructions with the software.
2. Using an IBM PC compatible computer running the configuration program that is supplied as
part of the 53WS5000 software package. This procedure is included in the instructions with the
software.
3. Using a SUPERVISOR-PC with configuration software. This procedure is provided in the
SUPERVISOR-PC Instruction Bulletin (IB 53SUS000).
4. Using the MicroMod Hand-Held Configurer (or any ASCII RS-232 terminal) connected to the
configuration port DIN plug on the front panel of the controller. This procedure, using the
Hand-Held Configurer, is described in the remainder of this chapter.
Figure 3-15 illustrates the Hand-Held Configurer and PC DIN plug cables necessary to configure an instru-
ment for the four alternative methods described. The PC cable type (9 pin or 25 pin) is dependent upon the
Figure 3-14. The KEY? Prompt
