Configuration Parameters 45
Tag Name AITAG A224 A225 ANI0
ANI1 It is an assignable 10 character name for
the analog input (ANI0, ANI1).
Engineering
Units AIEU A298 A299 Percent It is assignable for units of measure the
ANI represents (e.g., GPM for gallons/
minute).

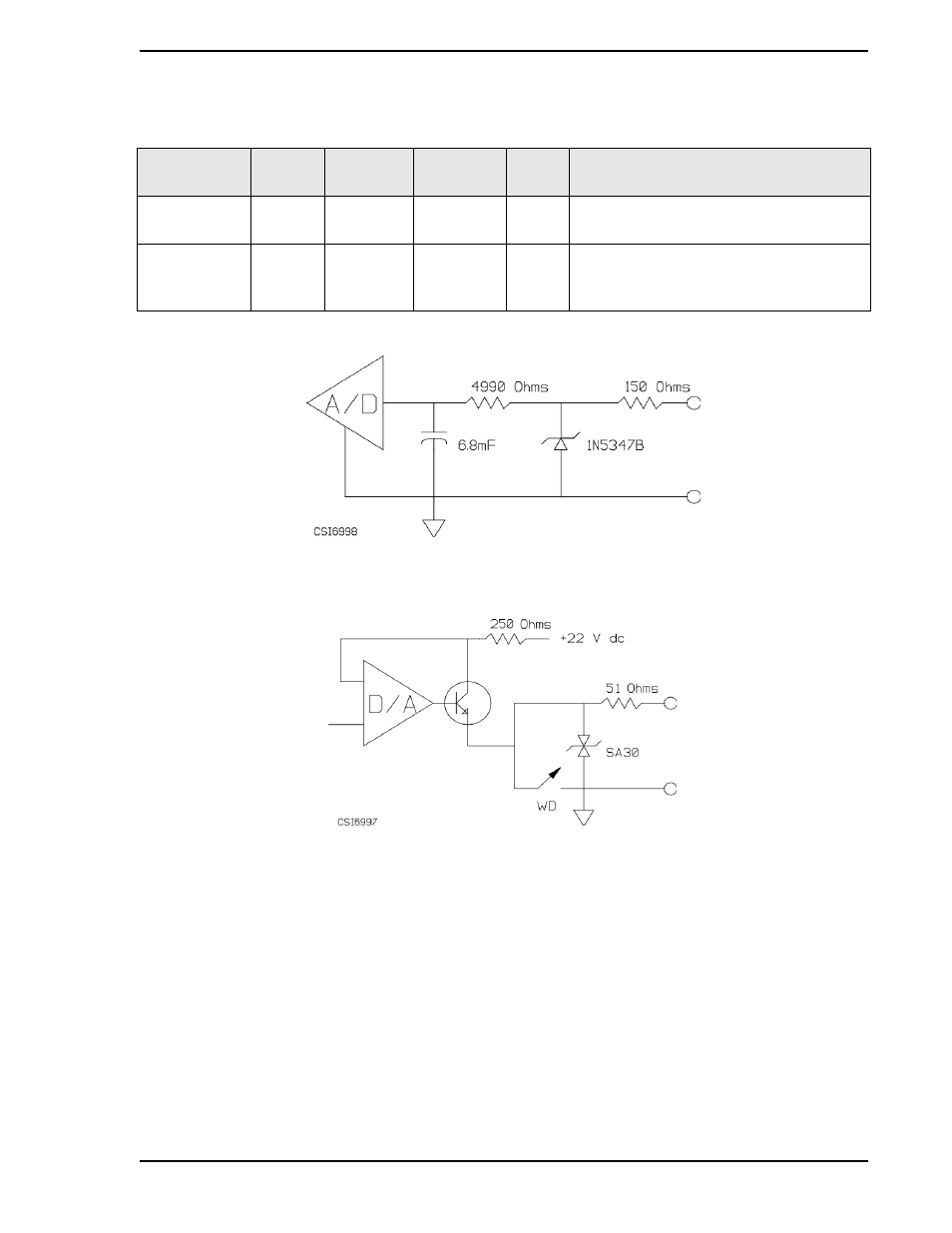

Figure 4-1. ANIO/1
Figure 4-2. ANO0
✎ Note
Figure 4-1 and Figure 4-2 are graphical representations of the
signal conditioning that occurs on the instrument main board. They
are provided for reference purposes only.
Table 4-4. Analog Input Module (Continued)
Title Symbol
ANI0
Datapoint
ANI1
Datapoint
Default Attributes
