Single Loop Process Controller Instruction Manual
70 Analog Backup Controller
6.3 Analog Backup Controller Parameter Selections
illustrates how an Analog Backup Controller would appear with only the default values and
power applied., but no analog input or output signals. In
, ANO0 (TB1-10) is jumpered to ANI0
(TB1-2) to simulate process operation. The unit has the AC power supply and power cord 173D109U03.
Connecting ANO0 to ANI0 is done only for illustration purposes and is not necessary to configure the con-
troller. If the controller is connected to a Datalink network, then assign the Instrument Address (B001) and
Baud Rate (B002) first, so the remaining datapoints may be entered at the SUPERVISOR-PC unit.
After this section, refer to
, to configure the parameter display datapoints. The
parameter display is accessed by pressing the
F2 push button from this display. Also, refer to
, to set the operating performance parameters: Proportional
Band (C106), Reset Time (C107), and Rate Time (C108). All other datapoints not shown in the illustration
are at the default value.

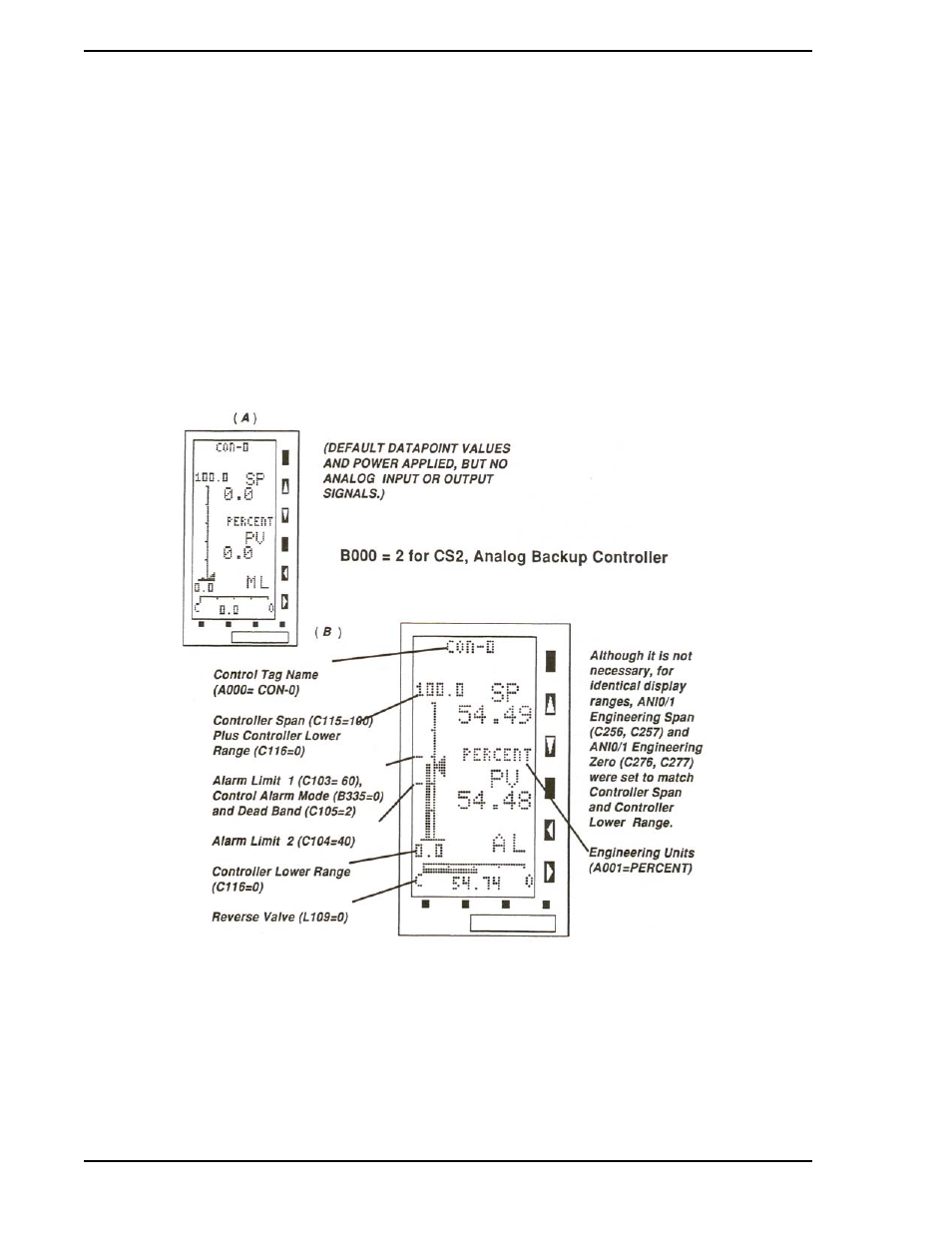

Figure 6-4. CS2 Datapoint Selections
