60 Single Loop (PID) Controller
5.3 Single Loop Controller Parameter Selections
Figure 5-4 illustrates how a Single Loop Controller would appear with only the default values and power
applied, but no analog input or output signals. In Figure 5-5 , ANO0 (TB1-10) is jumpered to ANI0 (TB1-2)
to simulate process operation. The unit has the AC power supply and power cord 173D109U03.
Connecting ANO0 to ANI0 is done only for illustration purposes and is not necessary to configure the con-
troller. If the controller is connected to a Datalink network, then assign the Instrument Address (B001) and
Baud Rate (B002) first, so the remaining datapoints may be entered at the SUPERVISOR-PC unit. After
this section, refer to
Section 9 to configure the parameter display datapoints. The parameter display is
accessed by pressing the F2 pushbutton from this display. Also, refer to Section 10, Instrument Tuning ,
(Instrument Tuning) or Section 11, EASY-TUNE , to set the operating performance parameters: Propor-
tional Band (C106), Reset Time (C107), and Rate Time (C108). All other datapoints not shown in the illus-
tration are at the default value.

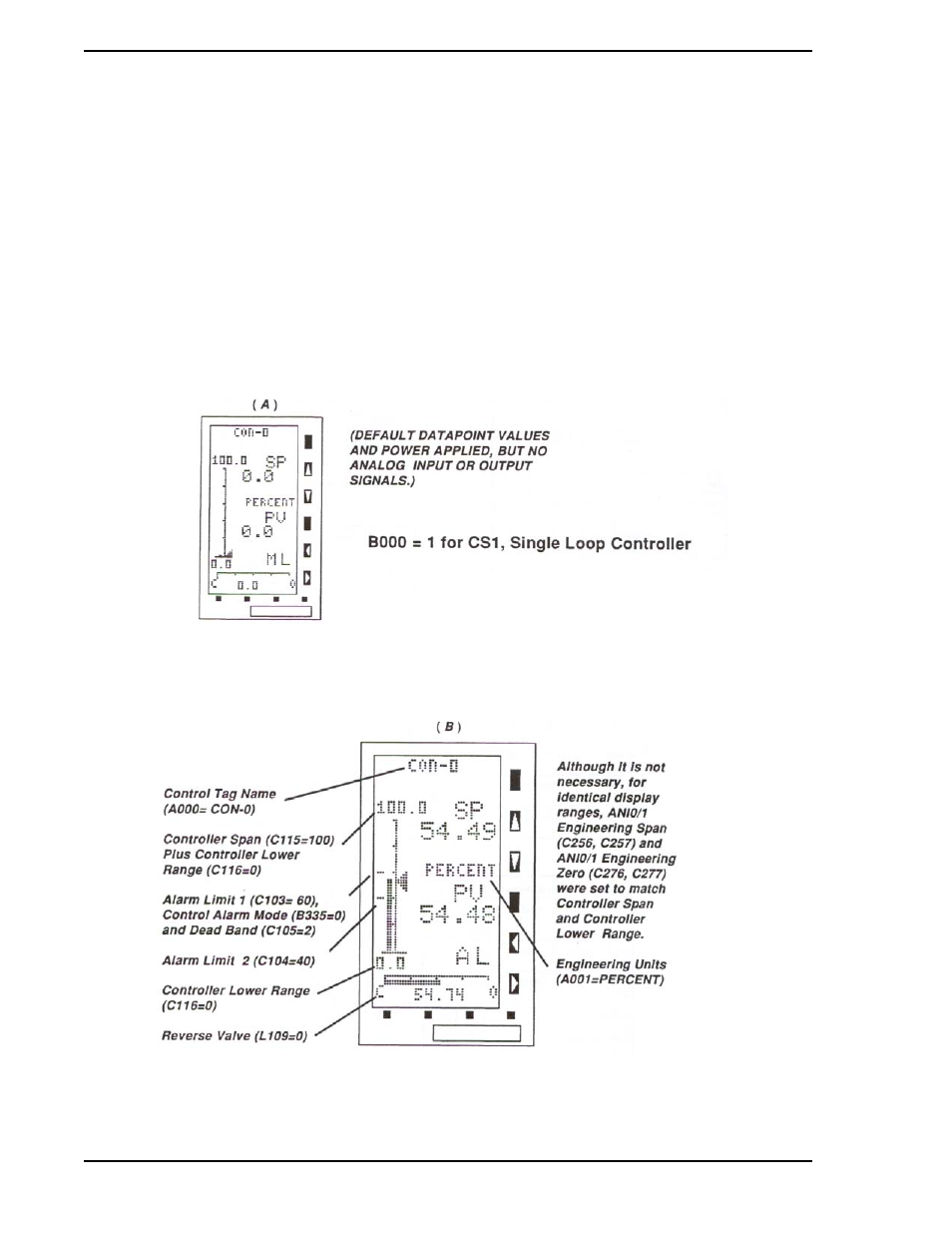

Figure 5-4. CS1 Datapoint Selections (A)
Figure 5-5. CS1 Datapoint Selections (B)
