Add Radius:

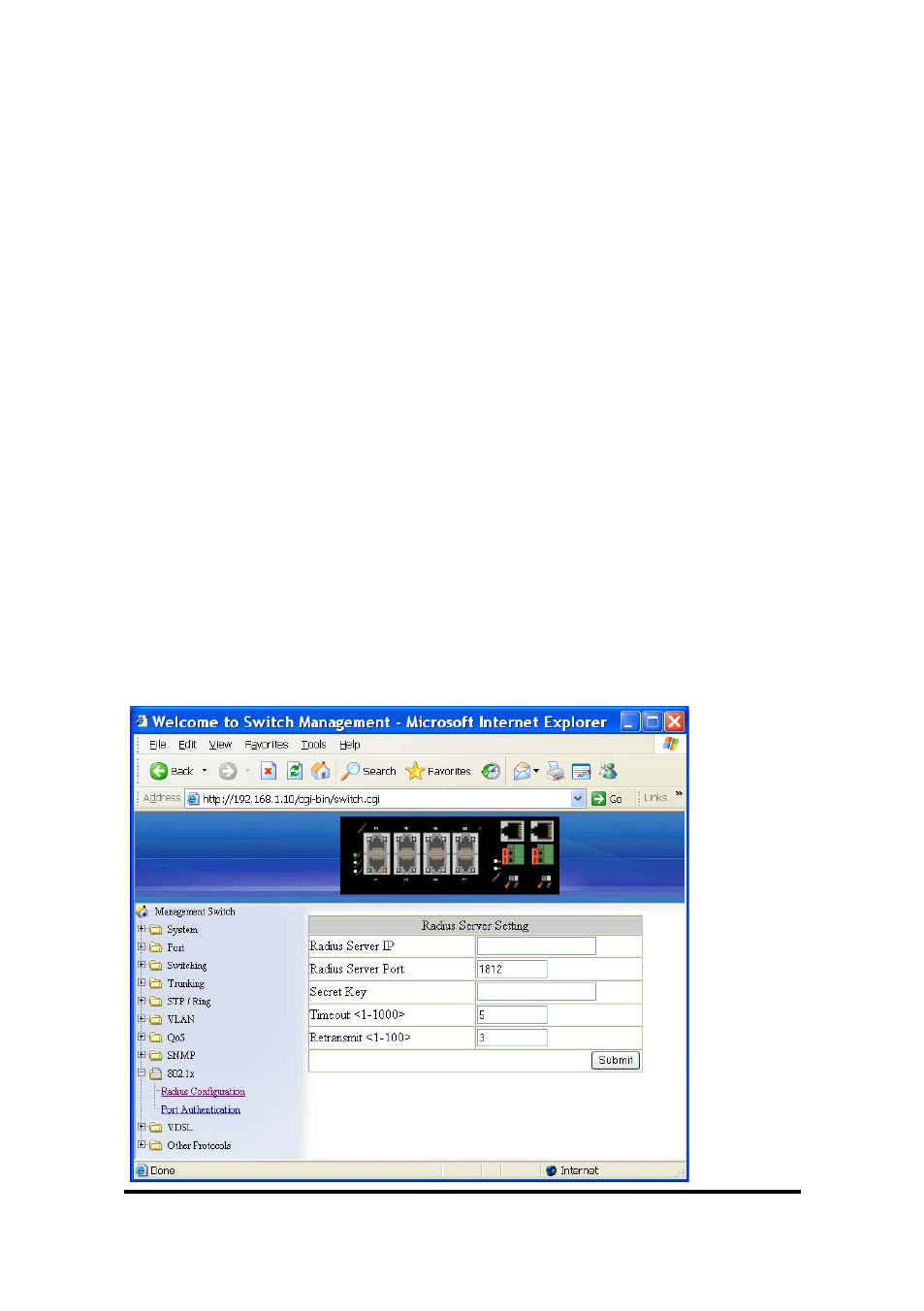

1. Add Radius: Select “Add Radius” button. The “Radius Server Setting”
window appears.
2. Radius Server IP: Select the “Radius Server IP” textbox and specify
the IP address of the remote radius server host.
3. Radius Server Port: Select the “Radius Server Port” textbox and
specify the UDP destination port for authentication requests. The host
is not used for authentication if set to 0.
4. Secret Key: Select the “Secret Key” textbox and specify the
authentication and encryption key for all radius communications
between the Ethernet Extender Switch and radius server. This key must
match the encryption used on the radius daemon. All leading spaces
are ignored, but spaces within and at the end of the key are used. If
spaces are used in the key, do not enclose the key in quotation marks
unless the quotation marks themselves are part of the key.
5. Timeout <1-1000>: Select the “Timeout” textbox and specify the time
interval (in seconds) that the Ethernet Extender Switch waits for the
radius server to reply before retransmitting. Enter a value in the range 1
to 1000.
6. Retransmit <1-100>: Select the “Retransmit” textbox and specify the
number of times a radius request is resent to a server if that server is
not responding or responding slowly. Enter a value in the range 1 to
100.
Sumit: Select “Sumit” button when you finished Radius Server Setting.
