4. Submit: Select “Submit” button when you finished Static-MAC-Entry
Discard settings.

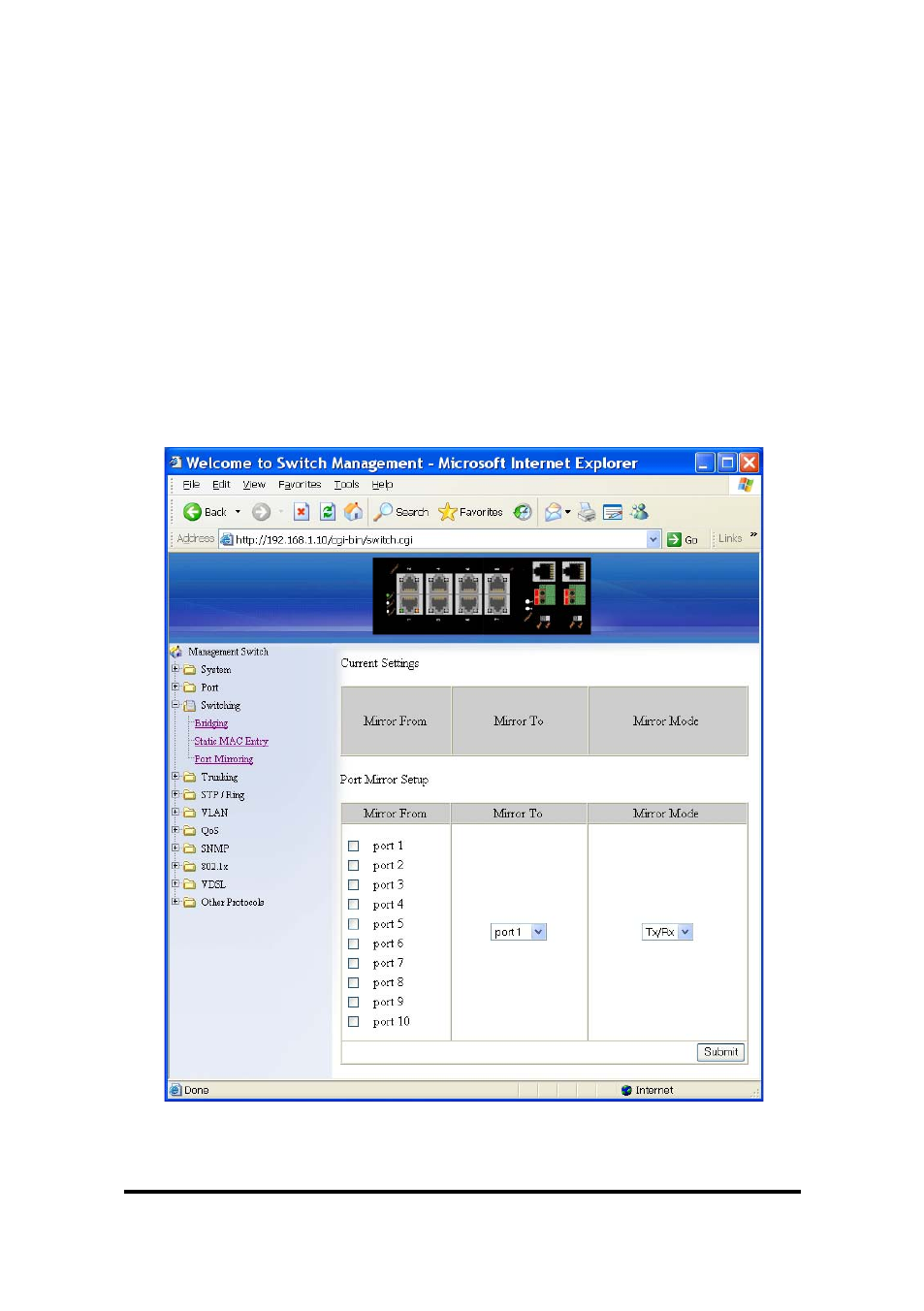

Port Mirroring
1. Mirror From: Choose Mirror From port from Port 1 ~ Port 10.
2. Mirror To: Select “Mirror To” drop-down menu to Choose Mirror To
port (Port 1 ~ Port 10) from “Mirror To” drop-down list.
3. Mirror Mode: Select “Mirror Mode” drop-down menu to Choose
“Tx/Rx”, “Tx”, or “Rx” from “Mirror Mode” drop-down list.
4. Submit: Select “Submit” button when you finished Port Mirroring
settings.
