Physical Ports
The Hardened Managed Ethernet Extender Switch provides:
Number of ports
10/100Base-TX
Ethernet Extender Port
8
2
Connectivity
• RJ-45 connectors on TX ports
• RJ-11 and Terminal Block connector on Ethernet Extender ports
Mode Selection
• 10/100Base-TX ports:
• 10Base-T full-duplex mode
• 10Base-T half-duplex mode
• 100Base-TX full-duplex mode
• 100Base-TX half-duplex mode
• Auto-negotiating mode
Ethernet Extender ports:
• Asymmetrical or Symmetrical
The 10/100Base-TX and Ethernet Extender Connectors

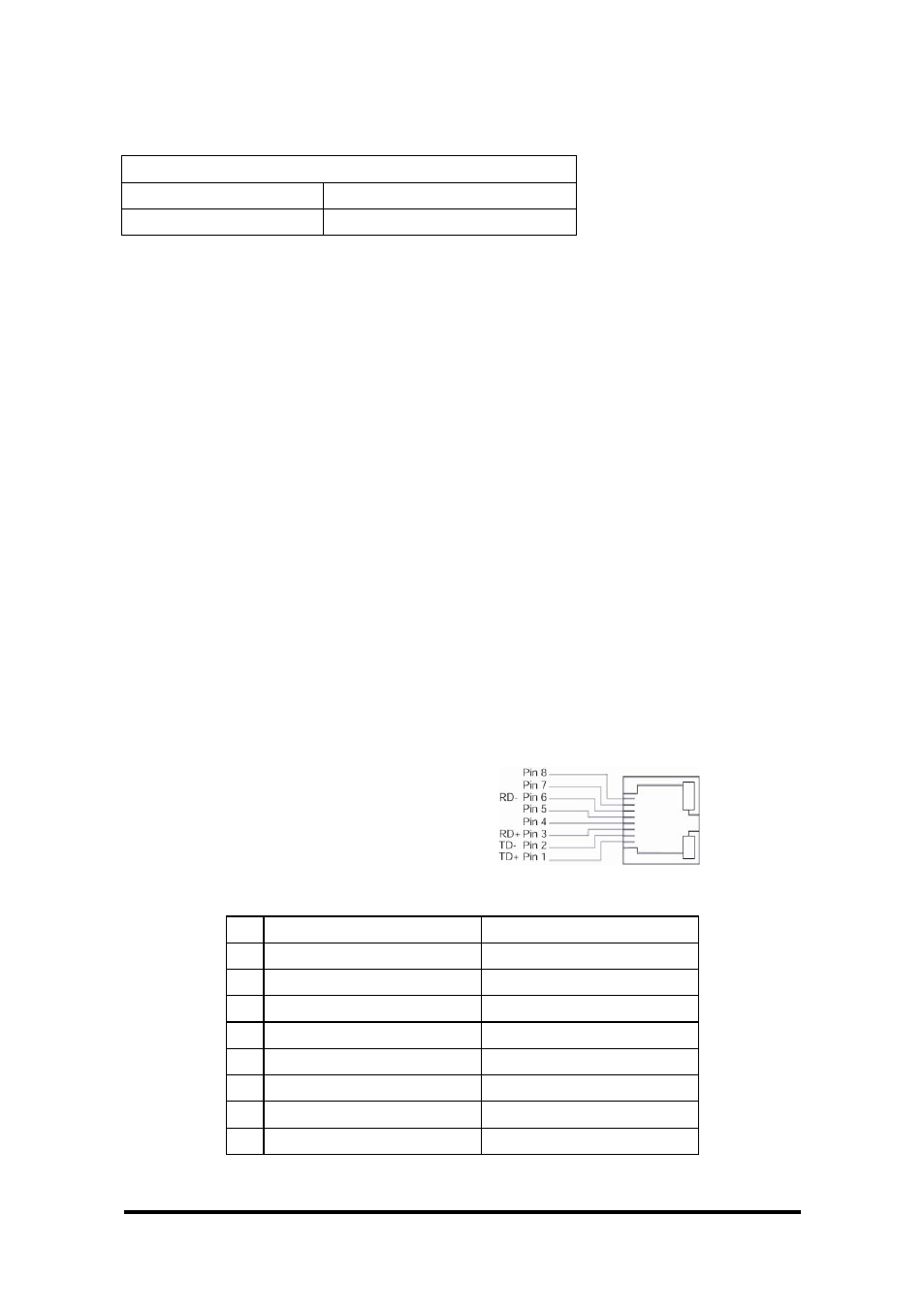

The 10/100Base-TX Connection
Pin Regular Ports
Uplink ports
1
Output Transmit Data + Input Receive Data +
2
Output Transmit Data - Input Receive Data -
3
Input Receive Data +
Output Transmit Data +
4
NC
NC
5
NC
NC
6
Input Receive Data -
Output Transmit Data -
7
NC
NC
8
NC
NC
