MSTP Port Setting

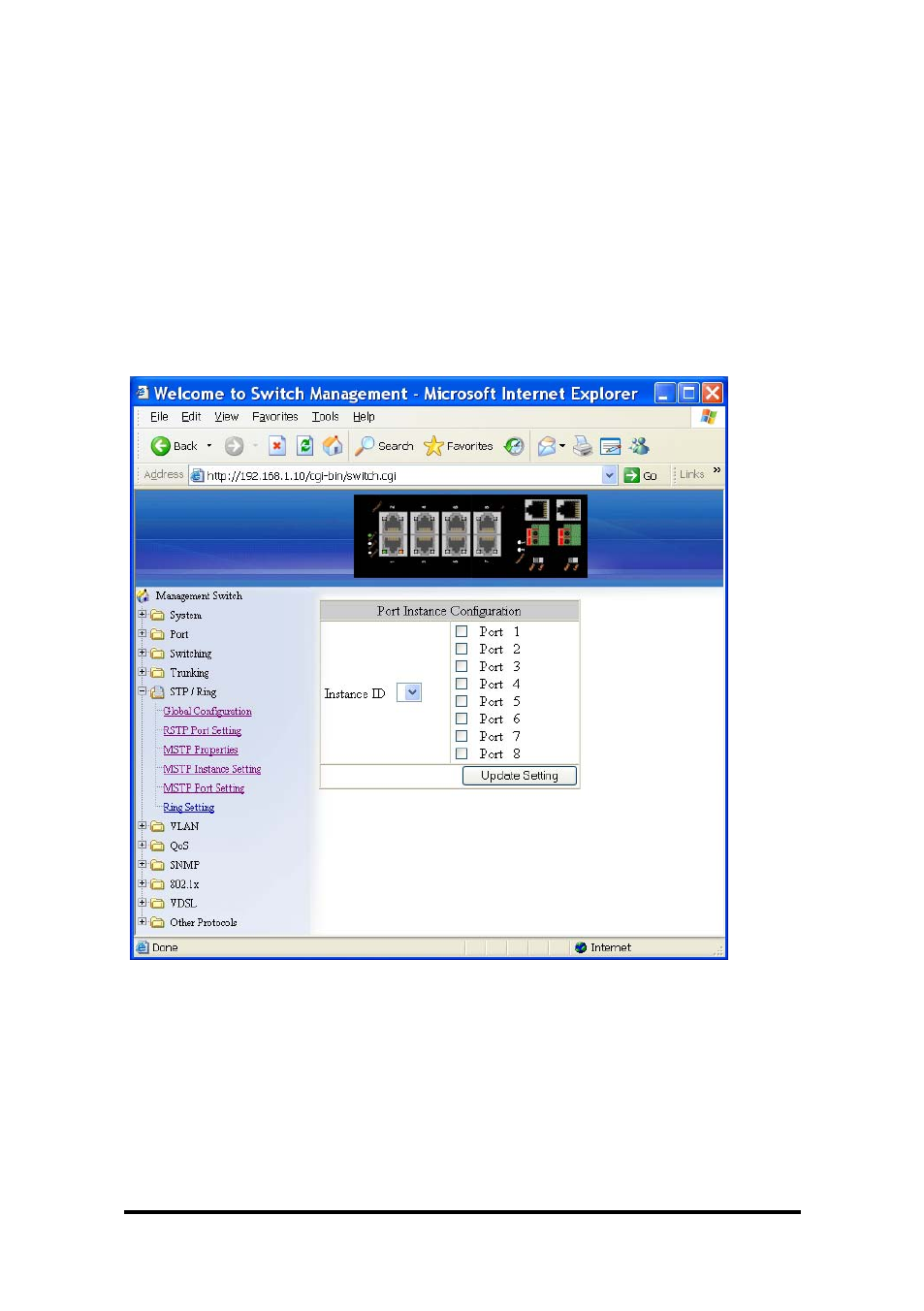

Port Instance Configuration
1. Instance ID: Select “Instance ID” drop-down menu to choose instance
ID from “Instance ID” drop-down list.
2. Select Port 1 ~ Port 8 to assign ports to the corresponding instance ID.
3. Update setting: Select “Update setting” button when you finished Port
Instance Configuration.
Instance ID
1. Instance ID: Select “Instance ID” drop-down menu to choose instance
ID from “Instance ID” drop-down list.
MSTP Port Configuration
1. Port: Select “Port” drop-down menu to choose port from “Port” drop-
down list.
2. Priority (Granularity 16): Select “Priority” text box to set the port
priority for a bridge group. The Multiple Spanning Tree Protocol uses
port priority as a tiebreaker to determine which port should forward
frames for a particular instance on a LAN, or which port should be the
