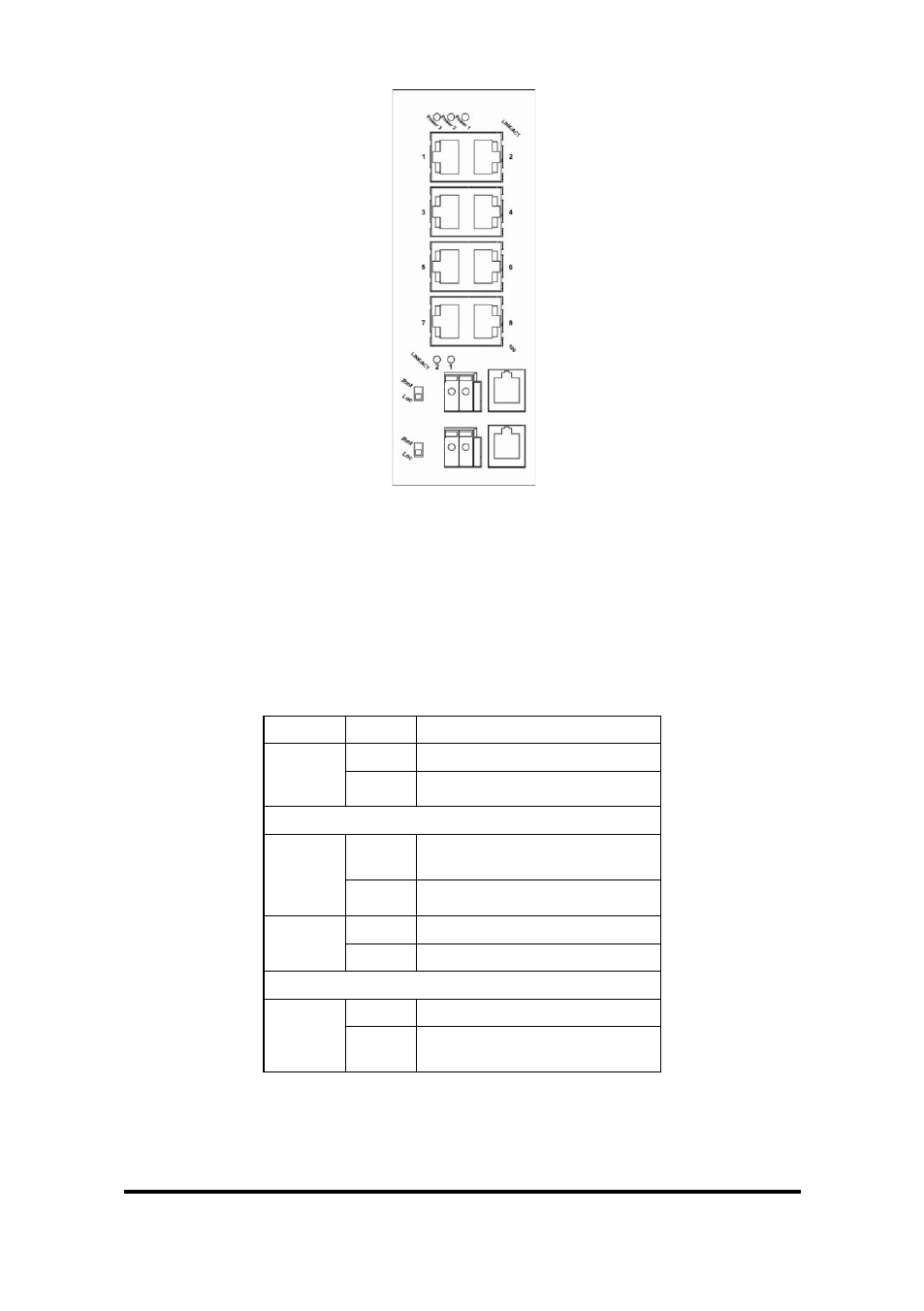

Front Panel Display
POWER
The LED will be in an ON condition what power is properly connected
to power.
Port Status LEDs
LED State Indication
Power 1
Power 2
Power 3
Steady Power on.
Off Power off.
10/100Base-TX Port
LINK/ACT
Steady
A valid network connection
established.
Flashing
Transmitting or receiving data.
ACT stands for ACTIVITY.
100
Steady Connection at 100Mbps speed.
Off Connection at 10Mbps speed.
Ethernet Extender Port
LINK/ACT
Steady A valid connection established.
Flashing
Transmitting or receiving data.
ACT stands for ACTIVITY.
