Port Based VLAN

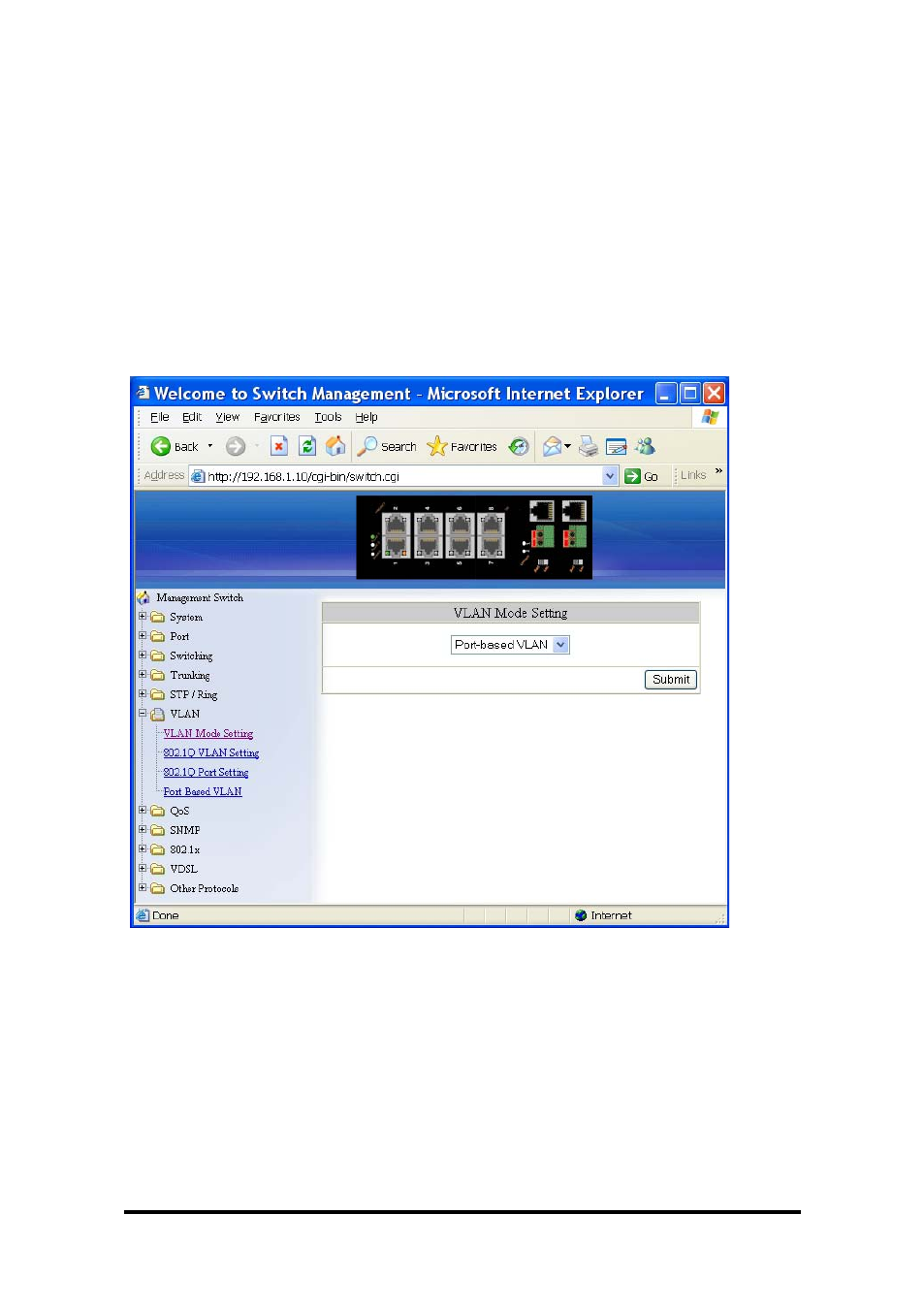

1. VLAN: Choose the port to be added to or deleted from the VLAN.
2. Select all: Select “select all” button to choose Port 1 ~ Port 10 all to be
added to the VLAN.
3. Delete all: Select “delete all” button to choose Port 1 ~ Port 10 all to be
deleted from the VLAN.
4. Submit: Select “Submit” button when you finished Port Based VLAN
setting.
