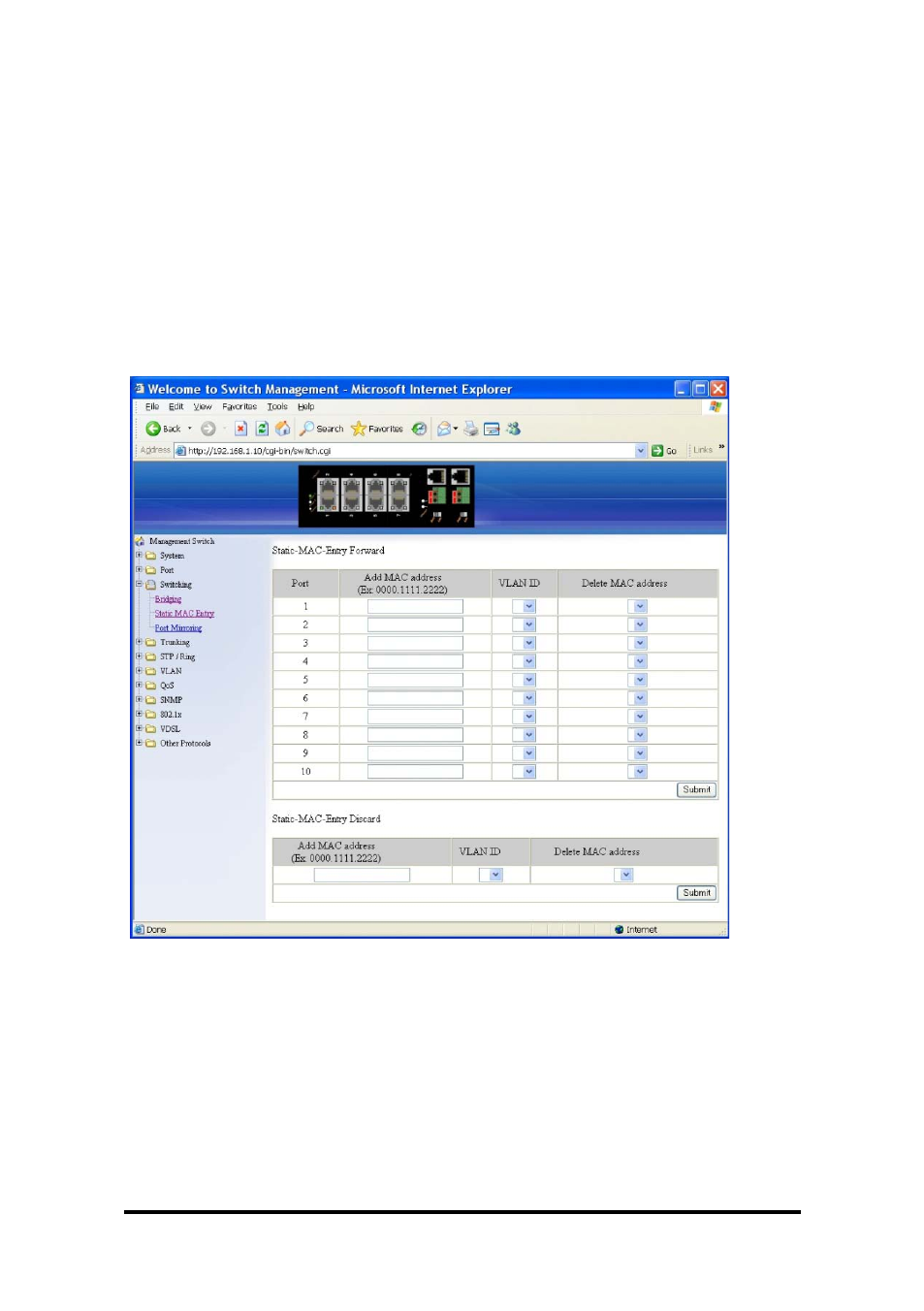

Static MAC Entry
Static-MAC-Entry Forward:
1. Add MAC address: Select “Add MAC address” text box and type a
locked forwarding MAC address for the port.
2. VLAN ID: Select “VLAN ID” drop-down menu and choose a VLAN
ID from the “VLAN ID” drop-down list.
3. Delete MAC address: Select “Delete MAC address” drop-down menu
and choose a locked forwarding MAC address from the “Delete MAC
address” drop-down list to be deleted from the port.
4. Submit: Select “Submit” button when you finished Static-MAC-Entry
Forward settings.
Static-MAC-Entry Discard:
1. Add MAC address: Select “Add MAC address” text box and type a
MAC address to be discarded for the VLAN.
2. VLAN ID: VLAN ID: Select “VLAN ID” drop-down menu and
choose a VLAN ID from the “VLAN ID” drop-down list.
3. Delete MAC address: Select “Delete MAC address” drop-down menu
and choose a MAC address from the “Delete MAC address” drop-
down list to be discarded from the VLAN.
