STP/Ring

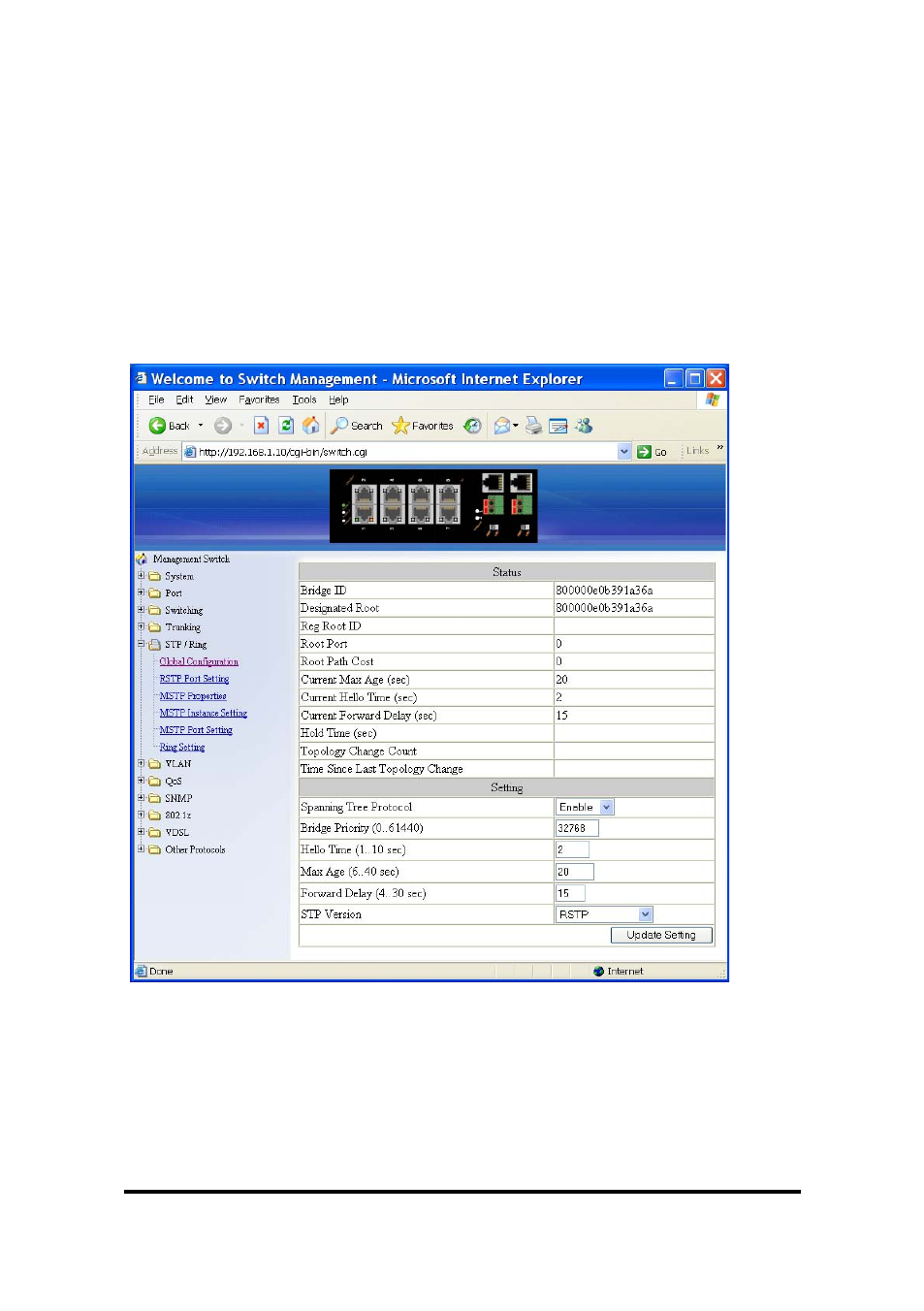

Global Configuration
1. Spanning Tree Protocol: Select “Spanning Tree Protocol” drop-down
menu to Choose “Enable” or “Disable” from “Spanning Tree Protocol”
drop-down list to enable or disable Spanning Tree Protocol.
2. Bridge Priority (0..61440): Select “Bridge Priority” text box and type a
decimal number between 0 and 61440.
3. Hello Time (sec) (1..9): Select “Hello Time” text box and type a
decimal number between 1 and 9.
4. Max Age (sec) (6..28): Select “Max Age” text box and type a decimal
number between 6 and 28.
5. Forward Delay (sec) (4..30): Select “Forward Delay” text box and type
a decimal number between 4 and 30.
6. STP Version: Select “STP Version” drop-down menu to choose
“MSTP”, “RSTP”, or “STP compatible” from “STP Version” drop-
down list.
