Delete VLAN:
1. VLAN setting: Select “VLAN setting”. The “VLAN Setting” window
appears.
2. Delete VLAN: Select “Delete VLAN” button.
3. Select a VLAN ID: Select “Select a VLAN ID” drop-down menu from
“Select a VLAN ID” drop-down list to choose the VLAN to be deleted.
4. Submit: Select “Submit” button when you finished VLAN setting.

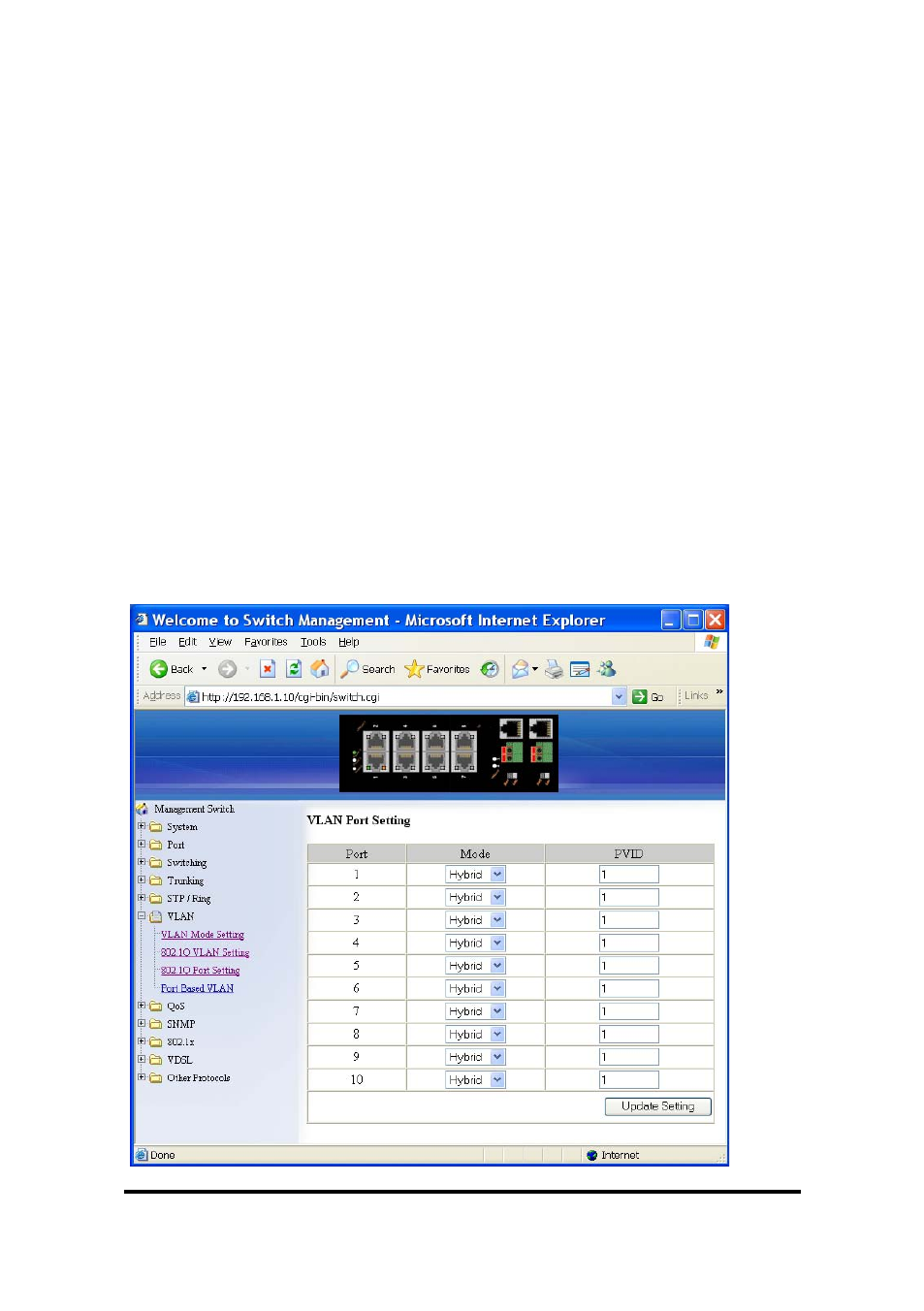

802.1Q Port Setting
1. VLAN Port Setting: Select “VLAN Port Setting”. The “VLAN Port
Setting” window appears.
2. Mode: Select “Mode” drop-down menu to choose “Access”, “Trunk”,
or “Hybrid” from “Mode” drop-down list for the port. The port will be
Tag port if you choose “Trunk” Mode for the port. And the port will be
Tag or Untag port if you choose “Hybrid” Mode for the port.
3. PVID: Select the “PVID” textbox and specify a new PVID number for
the port.
4. Update Setting: Select “Update Setting” button when you finished
VLAN Port Setting.
