root port for an instance. A lower value implies a better priority. In the
case of the same priority, the interface index will serve as the
tiebreaker, with the lower-numbered interface being preferred over
others. The permitted range is 0-240. The priority values can only be
set in increments of 16.
3. Admin. Path Cost: Select “Admin. Path Cost” text box to set the cost
of a path associated with an interface.
4. Update setting: Select “Update setting” button when you finished
MSTP Port Setting.

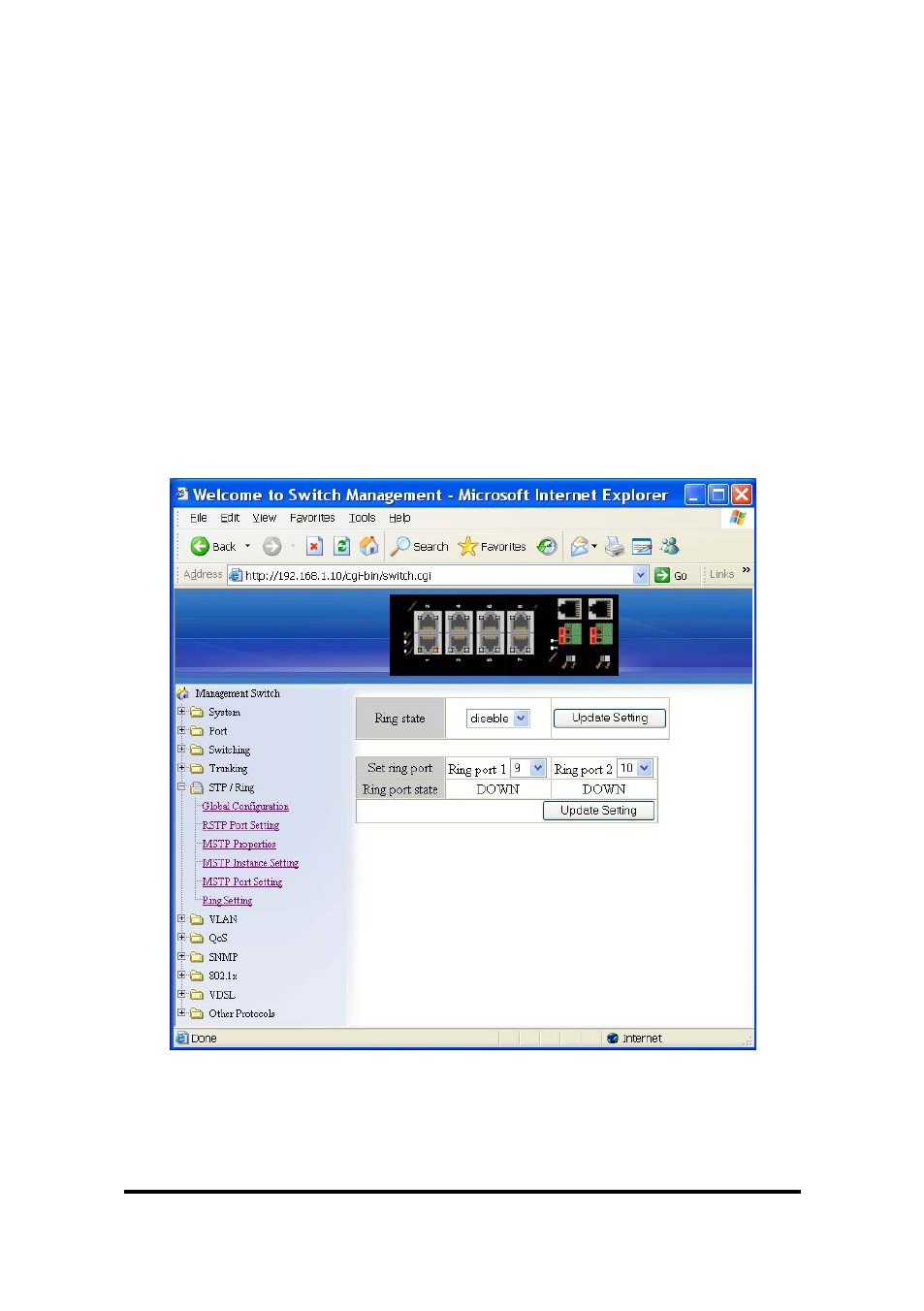

Ring Setting
1. Ring state
2. Select “Ring state” drop-down menu from “Ring state” drop-down list
to choose “Enable” or “Disable” to enable or disable Ring state.
3. Update setting: Select “Update setting” button when you finished Ring
state setting.
