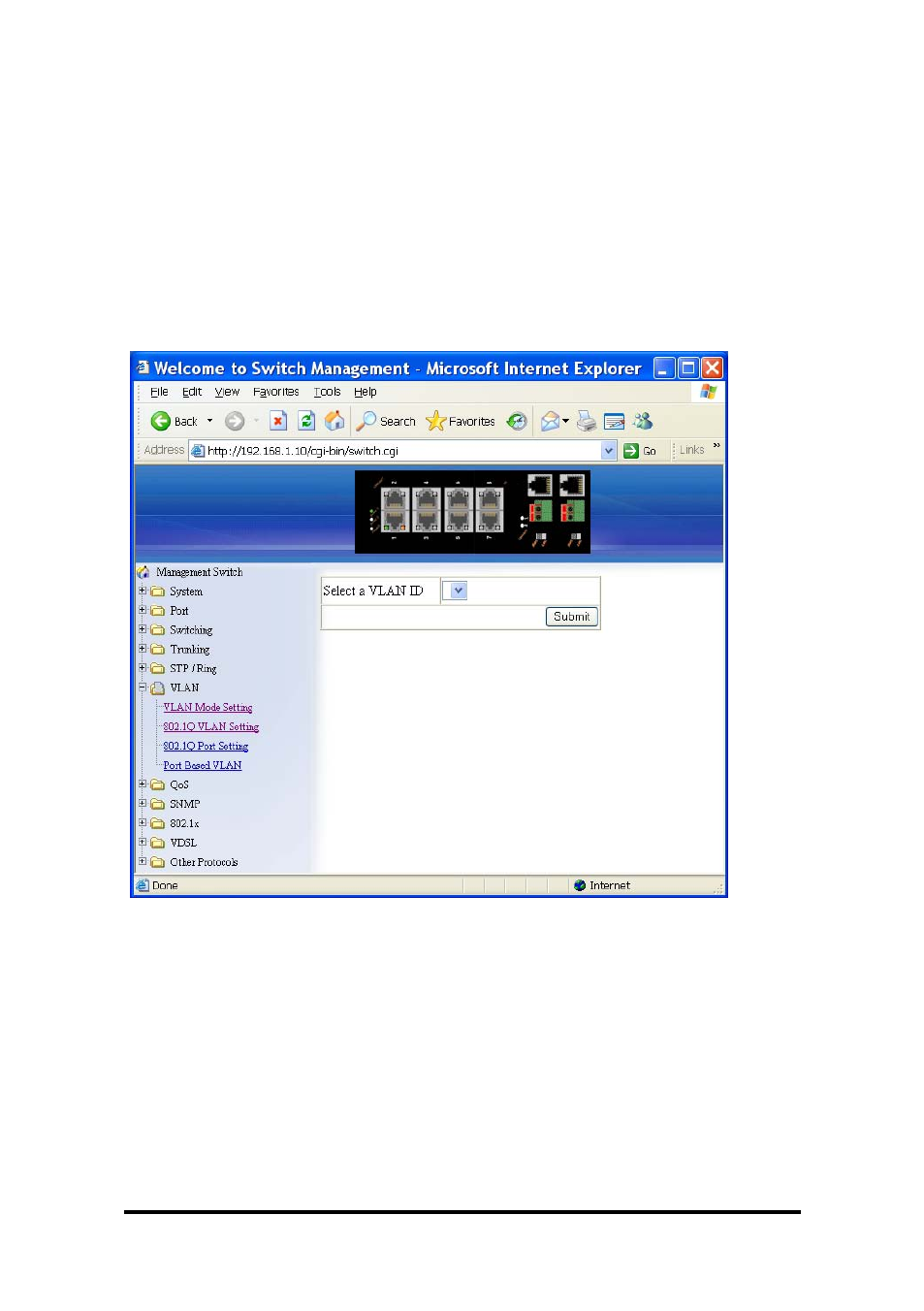

802.1Q VLAN setting
Add VLAN:
1. VLAN setting: Select “VLAN setting”. The “VLAN Setting” window
appears.
2. Add VLAN: Select “Add VLAN” button to create a new VLAN from
“VLAN Setting” window.
3. VLAN ID(2-4094): Select the “VLAN ID” textbox and specify a new
VLAN ID number from 2 ~ 4094.
4. VLAN Name: Select the “VLAN Name” textbox and type a name for
this newly created VLAN.
Add port to or delete port from VLAN:
1. VLAN Member: Choose the port to be added to or deleted from the
VLAN.
2. Tag or Untag: Select “Tag or Untag” drop-down menu to Choose
“Tag” or “Untag” from “Tag or Untag” drop-down list for a “Hybrid”
port.
3. Submit: Select “Submit” button when you finished VLAN setting.
