7. Update setting: Select “Update setting” button when you finished
Global Configuration.

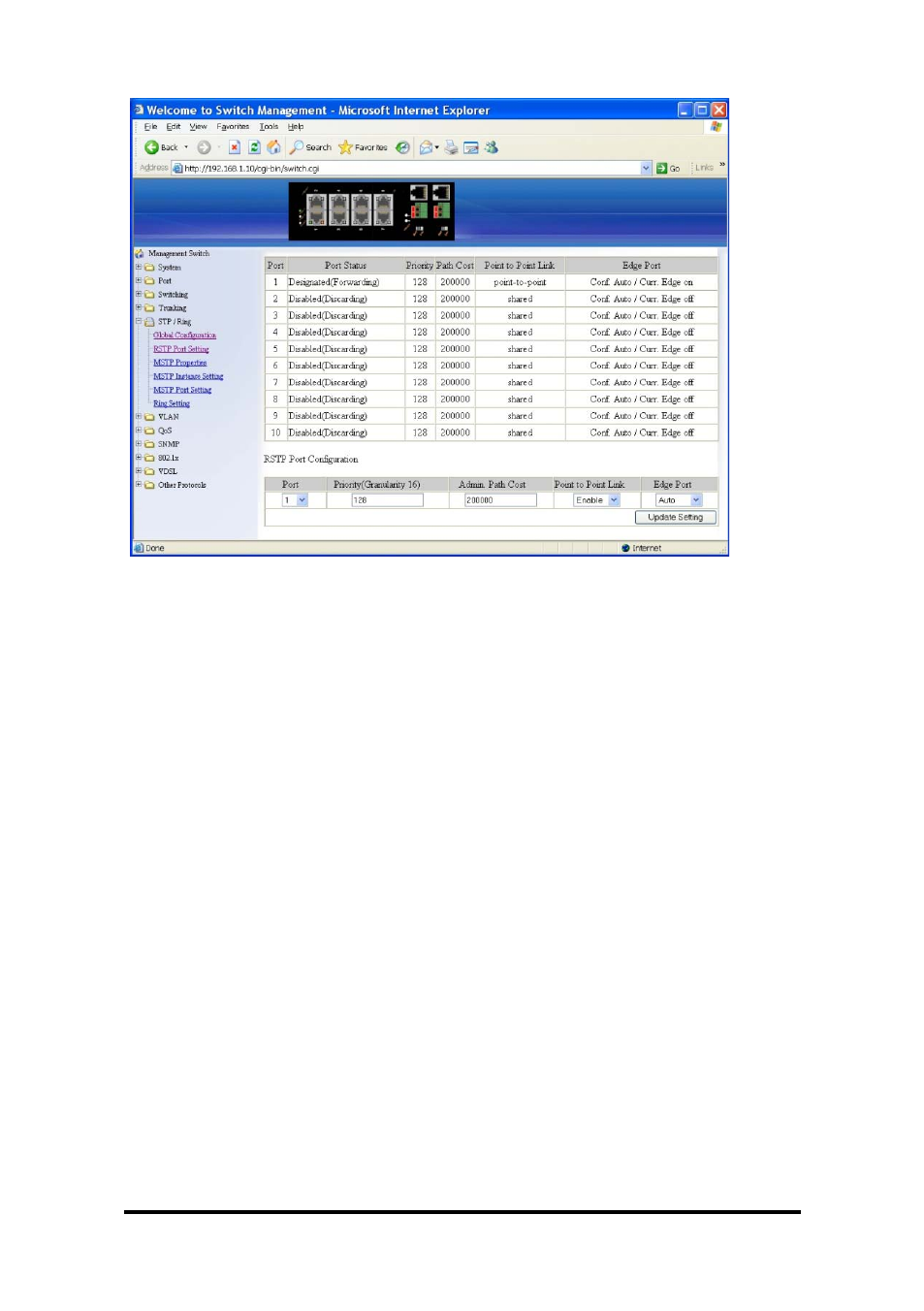

RSTP Port Setting
1. STP Version: Select “STP Version” drop-down menu to choose
“RSTP” from “STP Version” drop-down list.
2. Port: Select “Port” drop-down menu to Choose Port 1 ~ Port 10 from
“Port” drop-down list.
3. Priority(Granularity 16): Select “Priority” text box and enter a value
between 0 and 240 to set the priority for the port. A higher priority will
designate the port to forward packets first. A lower number denotes a
higher priority. This entry must be divisible by 16. The default priority
setting is 128.
4. Admin. Path Cost: Select “Admin. Path Cost” text box and enter a
value between 0 and 2000000 to set the Admin. Path Cost for the port.
0 (auto) - Setting 0 for the Admin. Path Cost will automatically set the
speed for forwarding packets to the port for optimal efficiency. Default
port cost: 100Mbps port = 200000. Gigabit port = 20000.
5. Point to Point Link: Select “Point to Point Link” drop-down menu to
Choose “Enable” or “Disable” from “Point to Point Link” drop-down
list to enable or disable Point to Point Link for the port.
6. Edge Port: Select “Edge Port” drop-down menu to Choose “Enable”,
“Disable”, or “Auto” from “Edge Port” drop-down list to set Enable,
Disable, or Auto Edge Port for the port.
7. Update setting: Select “Update setting” button when you finished
RSTP Port Setting.
