Set ring port
1. Ring port 1: Select “Ring port 1” drop-down menu to choose Ring port
1 from “Ring port 1” drop-down list.
2. Ring port 2: Select “Ring port 2” drop-down menu to choose Ring port
2 from “Ring port 2” drop-down list.
3. Update setting: Select “Update setting” button when you finished Set
ring port.
VLAN

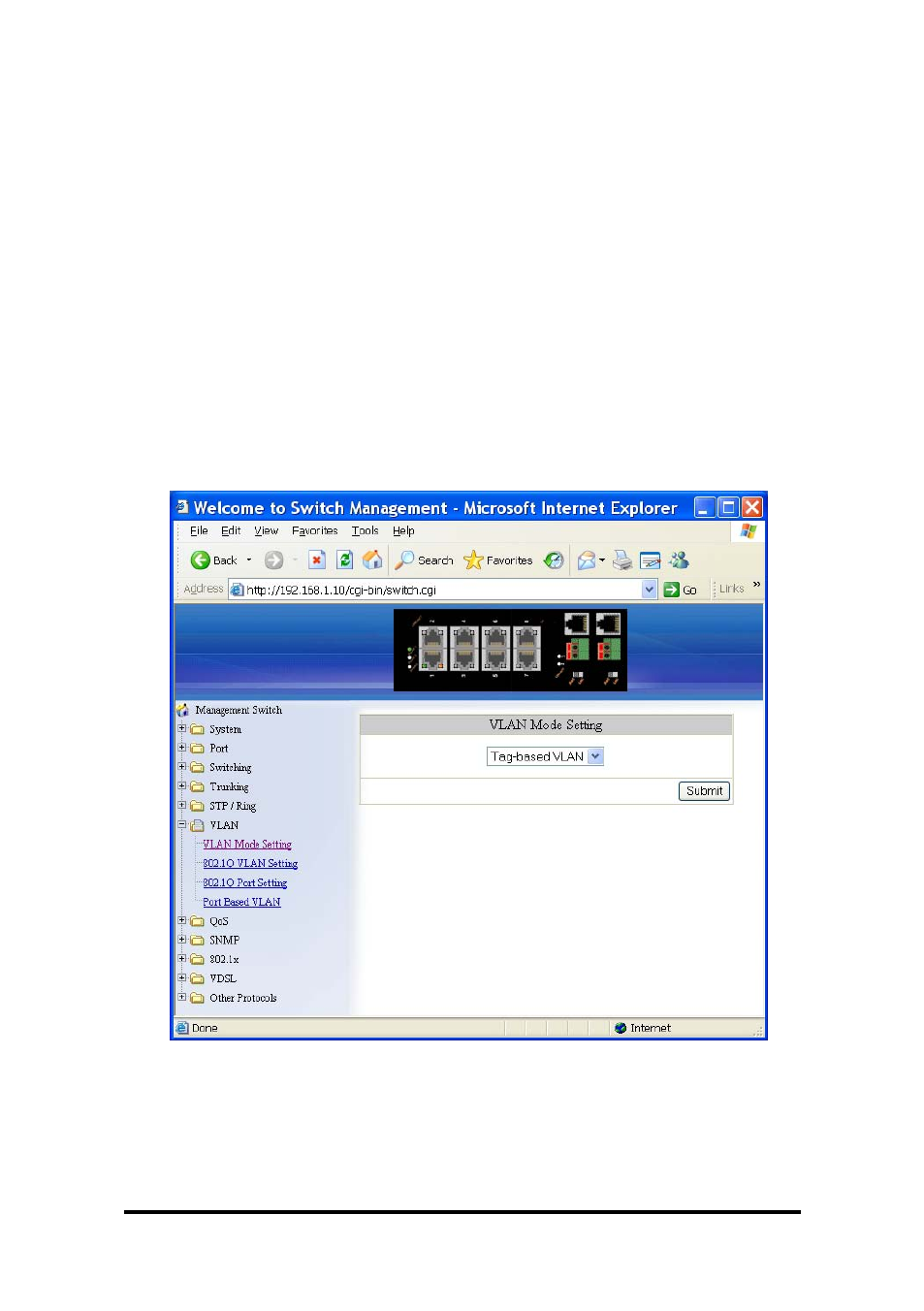

VLAN Mode Setting
1. VLAN Mode Setting: Select “VLAN Mode Setting” drop-down menu
to choose “Tag-based VLAN” or “Port-based VLAN” from “VLAN
Mode Setting” drop-down list.
2. Update Setting: Select “Update Setting” button when you finished
VLAN Mode Setting.
