Port
Configuration

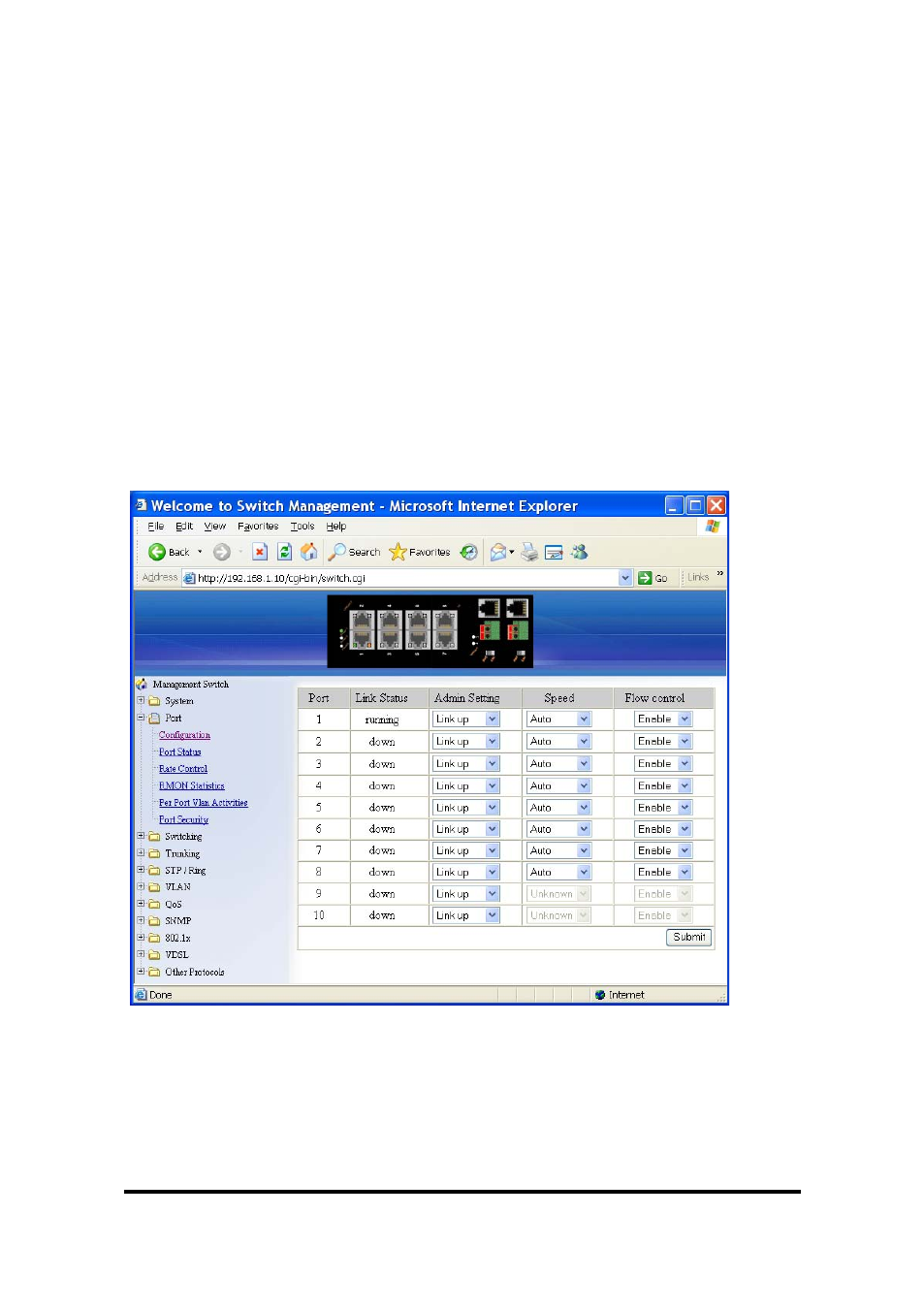

1. Admin Setting: Select “Admin Setting” drop-down menu to choose
“Link down” or “Link up” from the “Admin Setting” drop-down list to
disable or enable Admin Setting for the port.
2. Speed: Select “Speed” drop-down menu to change the line speed and
duplex settings from the “Speed” drop-down list for the port.
3. Flow control: Select “Flow control” drop-down menu to choose
“Disable” or “Enable” from the “Flow control” drop-down list to
disable or enable Flow control for the port.
4. Submit: Select “Submit” button when you finished configurations.
