19
Typical Matrox MXO2 connections
Typical Matrox MXO2 connections
In the following typical connection examples, we’ve connected a monitor to view
the signal that will be recorded, and separate source and record decks. You may,
however, use the same deck as both your source and record device by making the
input and output connections to a single deck. For details on the Matrox MXO2
connectors, see
Appendix B, “Matrox MXO2 Connectors .”
Analog component video connections

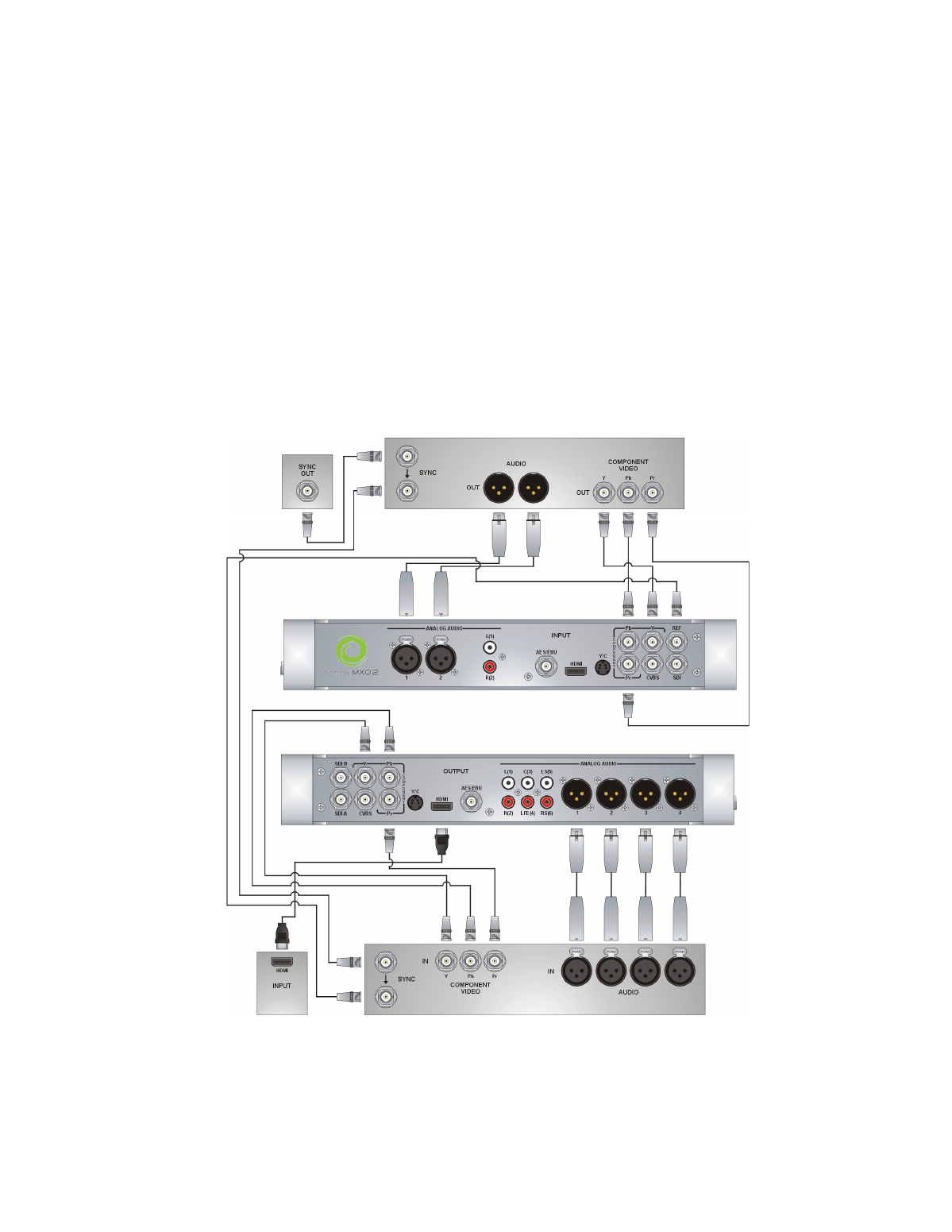

In this illustration, we’re using analog component connectors for video, XLR
connectors for audio, and an HDMI connector for video monitoring. The video is
genlocked using a tri-level sync generator.
Source
(Deck 1)
Recorder
(Deck 2)
HDMI
monitor
MXO2 Outputs
MXO2 Inputs
Tri-level
sync
generator
