Page 208
184
Chapter 12, Using Matrox A/V Tools
Specifying your video output settings (MXO2 Mini)
You can specify various settings to configure your main analog output and
secondary HDMI output from the MXO2 Mini. Some of the settings are
predetermined for you based on your editing video format. For a list of the
supported video output formats, see
“Playback using Matrox A/V Tools and
.
°
To specify your video output settings:
1
Click the
Options
button in the
Matrox
A/V Tools
dialog box.
2
Click the
Playback Settings
button. This displays the
Matrox Playback
Settings
dialog box.

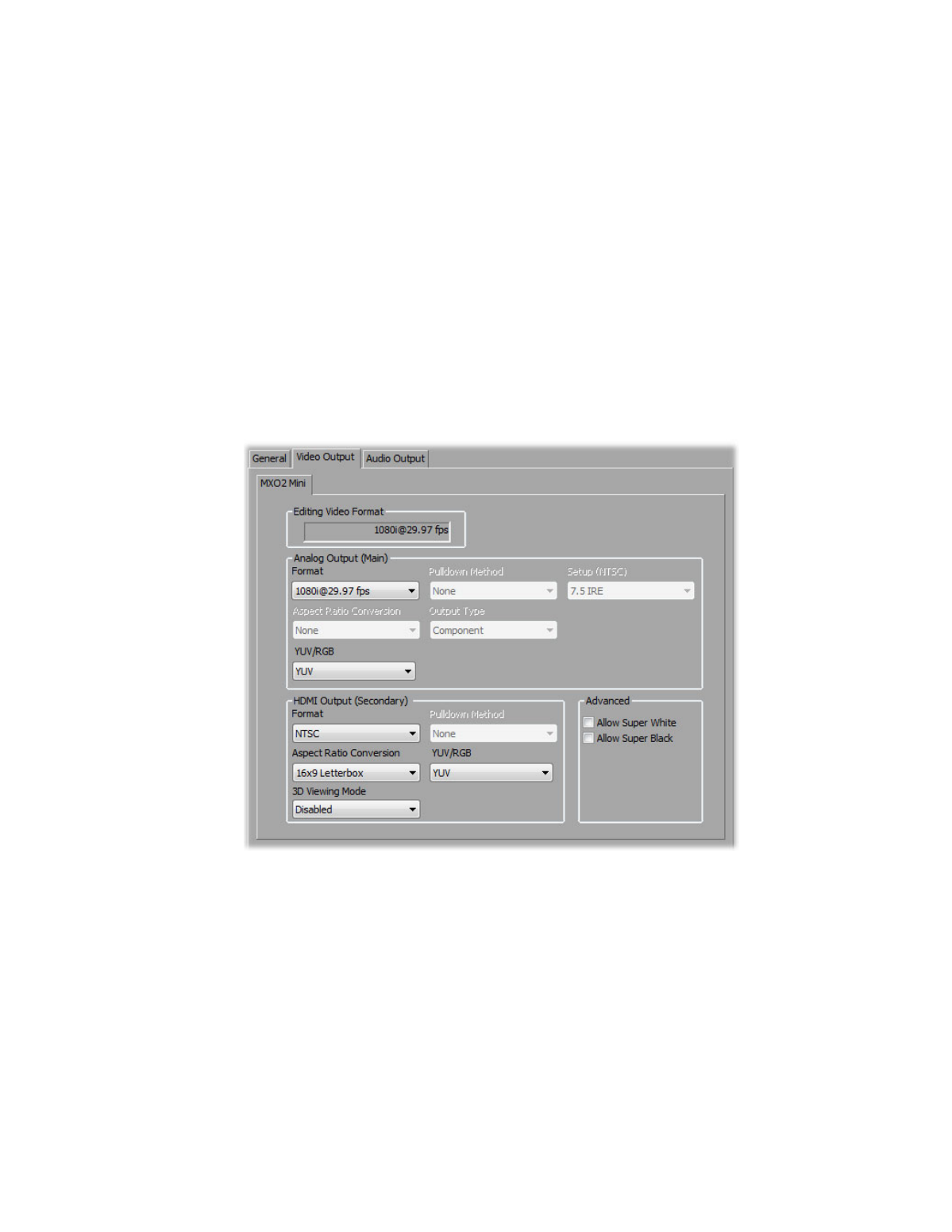

3
Click the
Video Output
tab.
4
Under
Analog Output (Main)
, you can specify the settings you want for
your analog output from MXO2 Mini. Under
HDMI Output (Secondary)
you can specify the settings you want for your secondary HDMI output.
Depending on the editing video format you chose in the
Options
dialog box,
you may not be able to change some of the settings.
$
Format
Use this to select the video format you want for your outputs.
For a list of the supported formats, see
