ENGINE & ATTACHING PARTS

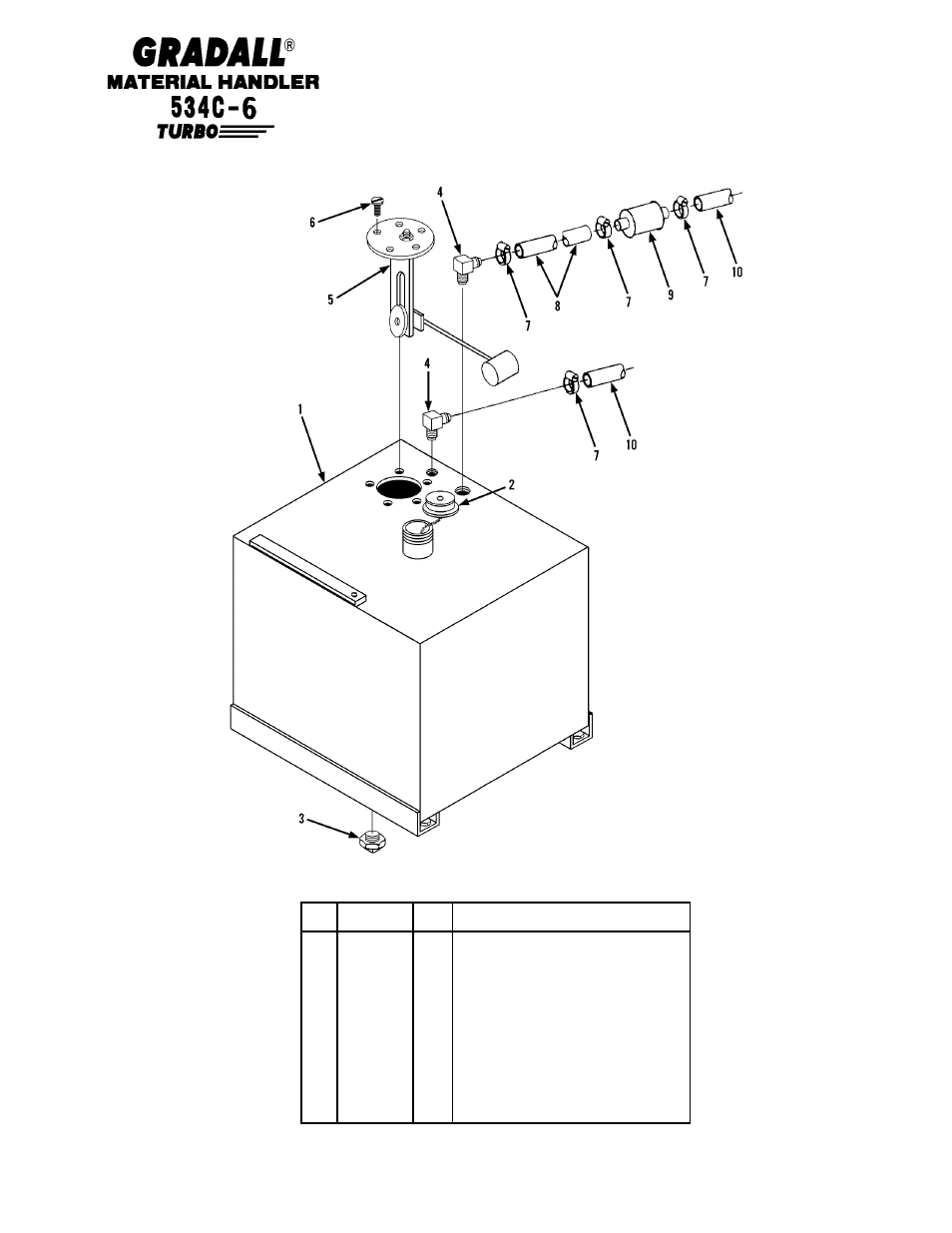

(9115-5016) FUEL TANK & LINES (534C-6 TURBO)
Starting Serial No. 0488238
Original Issue 11-97
Item
Part No.
Qty.
Description Of Part
9115-5016
1
FUEL TANK ASSY (includes items
1 thru 6)
1
9115-3031
1
FUEL TANK (includes items 2 & 3)
2
8654-1381
1
FUEL TANK CAP (w/chain)
3
8871-1283
1
HEX SOCKET PIPE PLUG, 1/2
4
8471-2746
2
HOSE NIPPLE, 90 DEGREES, 1/2X3/8
5
9114-3316
1
FUEL SENDER
6
9108-3491
5
GASKETED SCREW, 10-32
7
8348-3497
4
HOSE CLAMP
8
11"
FUEL LINE HOSE, 3/8" I.D.
9
9108-3218
1
FUEL FILTER
10
143" FUEL LINE HOSE, 5/16" I.D.
KG
5-5
