Page 258
JM
11-3
Item
Part No.
Qty.
Description Of Part
9108-5035
1
GAUGE PANEL ASSY (includes
all items)
1
9108-1371
1
DASH PANEL
2
9020-5687
1
WATER TEMP. GAUGE
3
9103-3247
1
OIL PRESSURE GAUGE
4
9020-5686
1
FUEL GAUGE
5
7738-3709
1
VOLTMETER
6
9020-5688
1
HOURMETER
7
9103-3084
1
BRAKE WARNING LIGHT
8
9108-3259
1
ROCKER SWITCH
9
9103-3317
1
IGNITION START SWITCH
7738-4578
1
KEY
10
7716-3144
1
BLANK PLUG
Item
Part No.
Qty.
Description Of Part
11
9020-0434
1
BUTTON SWITCH
12
9108-1480
1
COVER PLATE
13
8830-1141
4
ROUND HD MACHINE SCREW,
5/16-18X3/4
14
8855-1010
4
LOCKWASHER, 5/16
15
9108-3260
1
15A CIRCUIT BREAKER
16
9103-3111
1
10A CIRCUIT BREAKER
17
8855-4917
4
LOCKWASHER, #10
18
8850-1613
4
HEX NUT, #10-32
19
9108-3110
1
DASH WIRING HARNESS
20
8348-3114
1
3-WAY CONNECTOR
21
8698-3188
16
EYELET #10
22
9108-3221
1
BUTTON PLUG
ELECTRICAL

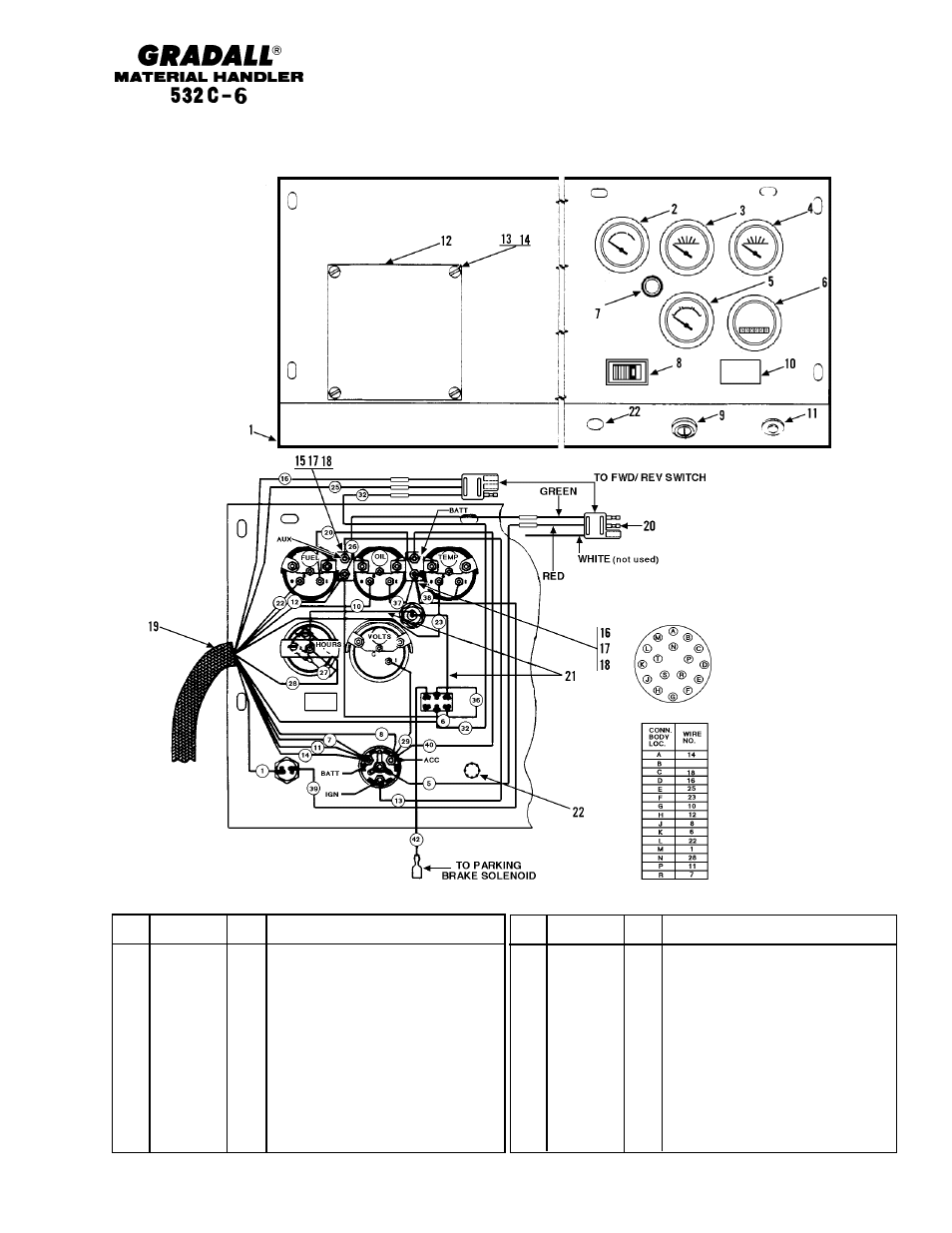

(9108-5035) Gauge Panel Assy (532C-6)
Starting Serial No. 0188002
Original Issue 1-90
Revised 6-27-07
*
* Added additional line under item 9.
