Page 280
A
A
Item
Part No.
Qty.
Description Of Part
9132-5033
1
534C-6T DECAL KIT - WHITE (includes
all items except18 &19 on page 12-2,
and all standard items on page 12-3,
except items 8 thru 11, 13, 14, 15 & 17)
1
9114-3284
1
BATTERY WARNING
2
9114-3285
1
JUMP START WARNING
3
9114-3286
1
FUEL WARNING PLATE
4
9114-3288
1
HYDRAULIC OIL PLATE
5
9108-3492
2
OIL WARNING DECAL
6
9114-3281
1
WARNING DECAL (located on side
of tank cover)
7
9114-3280
1
WARNING DECAL (located on side
of rear cover weldment)
8
8060-3026
1
COOLING SYS. CAUTION DECAL
9
8060-3022
1
ACCIDENT PREVENTION DECAL
10
9134-3010
1
LIFTING PERSONNEL DECAL
11
9132-3020
1
SERVICE INSTRUCTION DECAL
12
9130-3047
1
BOOM OPERATION DECAL
13
9108-3317
1
TILT DECAL
Item
Part No.
Qty.
Description Of Part
14
9108-3318
1
SWAY DECAL
15
9114-3282
5
PINCH POINT DECAL
16
7733-3027
1
MADE IN USA DECAL
17
9100-3030
1
PATENT DECAL
18
9112-3153
1
SERIAL NUMBER & ATTACHMENT
PLATE
19
8834-1022
4
DRIVE SCREW
20
9114-3287
1
WARNING DECAL
21
9114-3283
1
RIDERS WARNING DECAL
22
9114-3120
1
INSTRUMENT PANEL DECAL
23
9114-3182
1
PARK BRAKE DECAL
24
9108-3314
1
TRACTION DECAL
25
9116-3028
1
SHIFTER DECAL
26
9112-3117
1
CAPACITY CHART
27
9103-3089
1
HORN DECAL
28
9114-3292
1
DIPSTICK DECAL
29
9116-3256
1
INSTRUCTION DECAL (located on
engine, not shown)
30
9116-3130
1
OIL LEVEL DECAL (not shown)

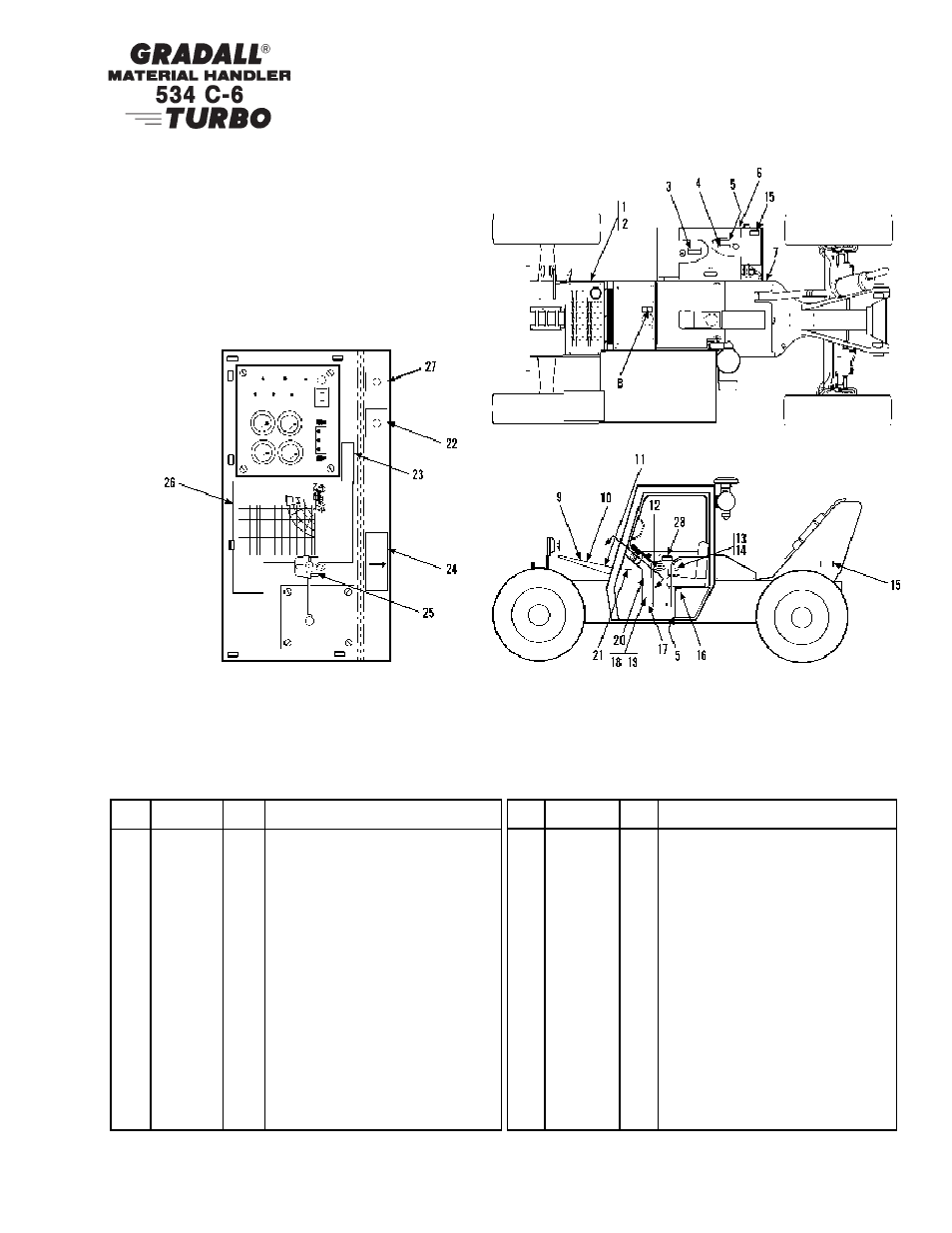

MISCELLANEOUS
Frame Decals (534C-6 TURBO)
Starting Serial No. 0488238
Original Issue 2-98
JH
12-2
NOTE: USE 1440-4645 BOESHIELD PROTECTANT (12 OZ. SPRAY) ON ANY EXPOSED METAL
1440-4646 BOESHIELD PROTECTANT (1 GAL. CAN)
VIEW A-A
