10-6
HYDRAULIC COMPONENTS
Compensating Cylinder (532)
Starting Serial No. 0188002
Original Issue 1-90
Revised 10-10-95

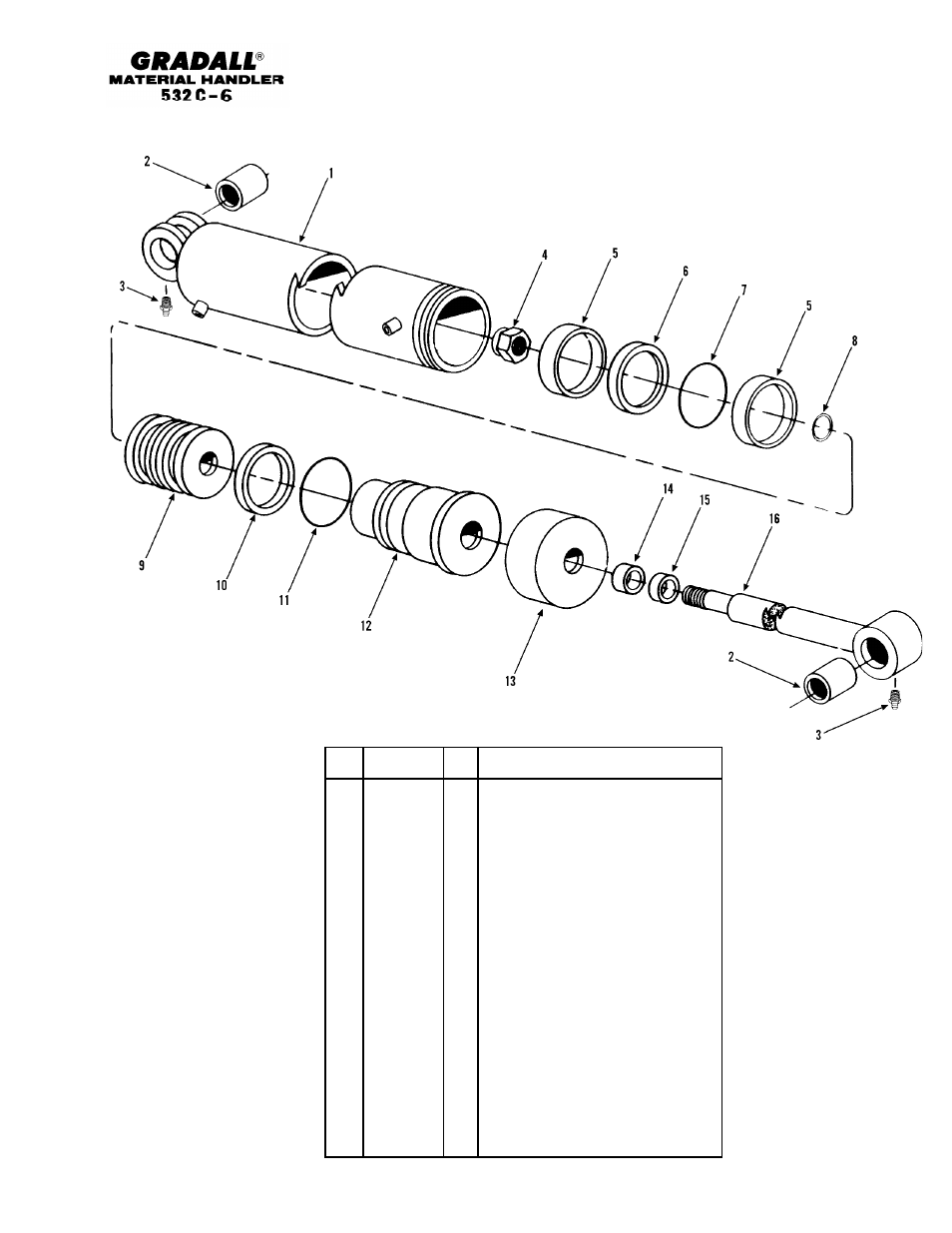

Item Part No. Qty. Description Of Part
9112-3049 1 TILT COMPENSATING CYLINDER
ASSY (includes all items)
9112-4049 Ref SEAL KIT (includes items 5, 6, 7, 8,
10, 11, 14 & 15)
1 9112-4045 1 TUBE ASSY
2 9108-4167 4 BUSHING
3 8867-1033 2 LUBE FITTING -STRAIGHT, 1/4-28
4 9103-4280 1 NUT
5 2 WEAR RING
6 1 SEAL
7 1 O-RING
8 1 O-RING
9 9112-4046 1 PISTON
10 1 BACK-UP RING
11 1 O-RING
12 9112-4048 1 GLAND
13 9112-4050 1 HEAD NUT
14 1 SEAL
15 1 WIPER
16 9112-4047 1 ROD ASSY
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
KG * Changed upper left to designate model more clearly.
