Page 119
6-7
* Changed upper left corner to designate model more clearly.
KG
DRIVE TRAIN

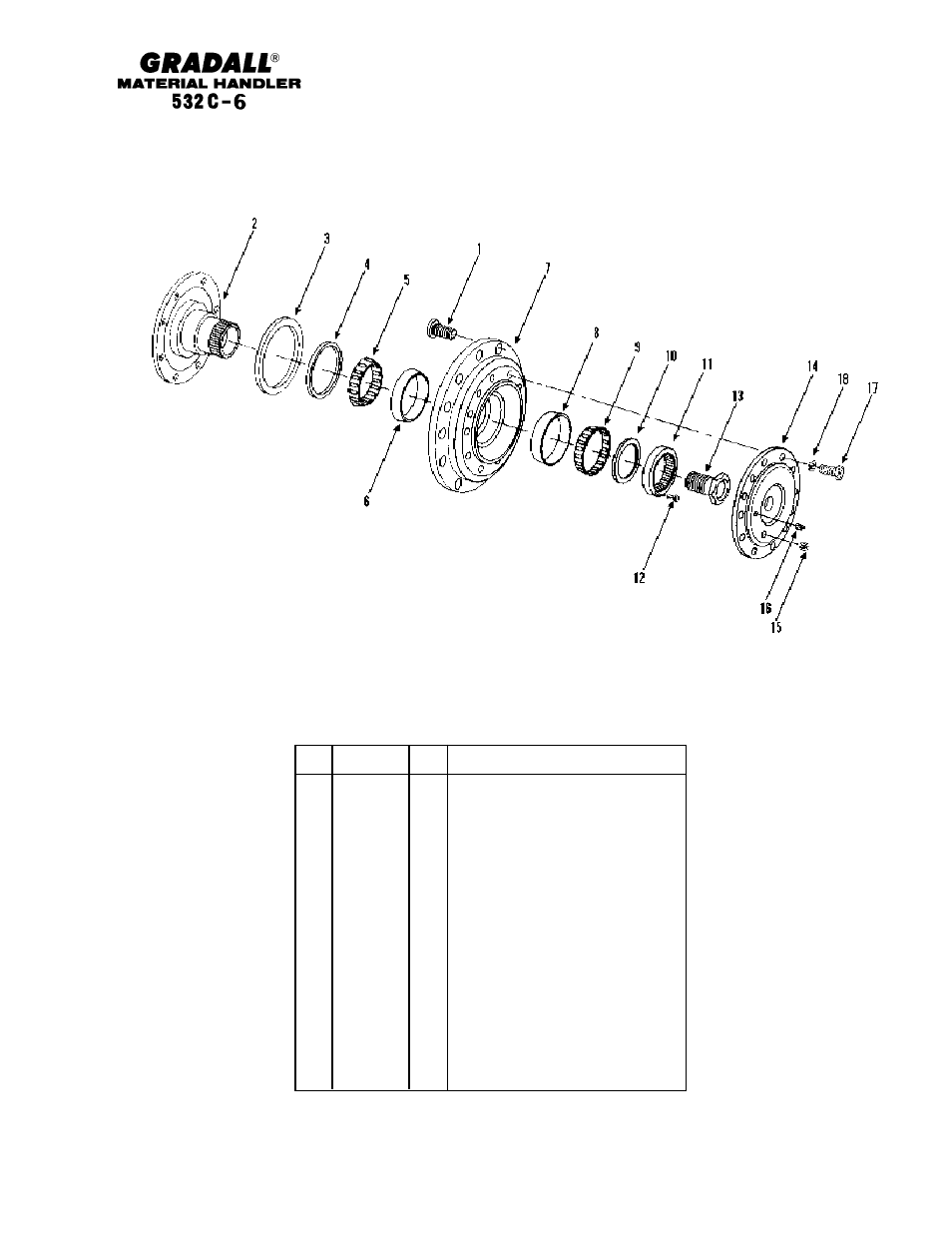

(9109-3006) Rear Steering Axle Non-Drive Hub (532C-6)
Starting Serial No. 0188002
Original Issue 1-90
Revised 9-20-95
Item
Part No.
Qty.
Description Of Part
9109-3006
NON-DRIVING HUB ASSY (includes
all items)
1
9104-4311
12
WHEEL BOLT
2
9109-4008
1
OUTPUT SHAFT
3
9112-4007
1
SEAL BOOT
4
9112-4004
1
OIL SEAL
5
9112-4010
1
BEARING CONE
6
9112-4009
1
BEARING CUP
7
9112-4008
1
HUB
8
9112-4005
1
BEARING CONE
9
9112-4006
1
BEARING CUP
10
9112-4011
1
THRUSTWASHER
11
9109-4004
1
SPLINED SPACER
12
9109-4015
1
LOCKSCREW
13
9109-4003
1
LOCKNUT
14
9109-4001
1
COVER
15
9112-4016
1
MAGNETIC PLUG
16
9112-4028
1
PIPE PLUG
17
9109-4013
12
HEX HD BOLT
18
9112-4027
12
WASHER
