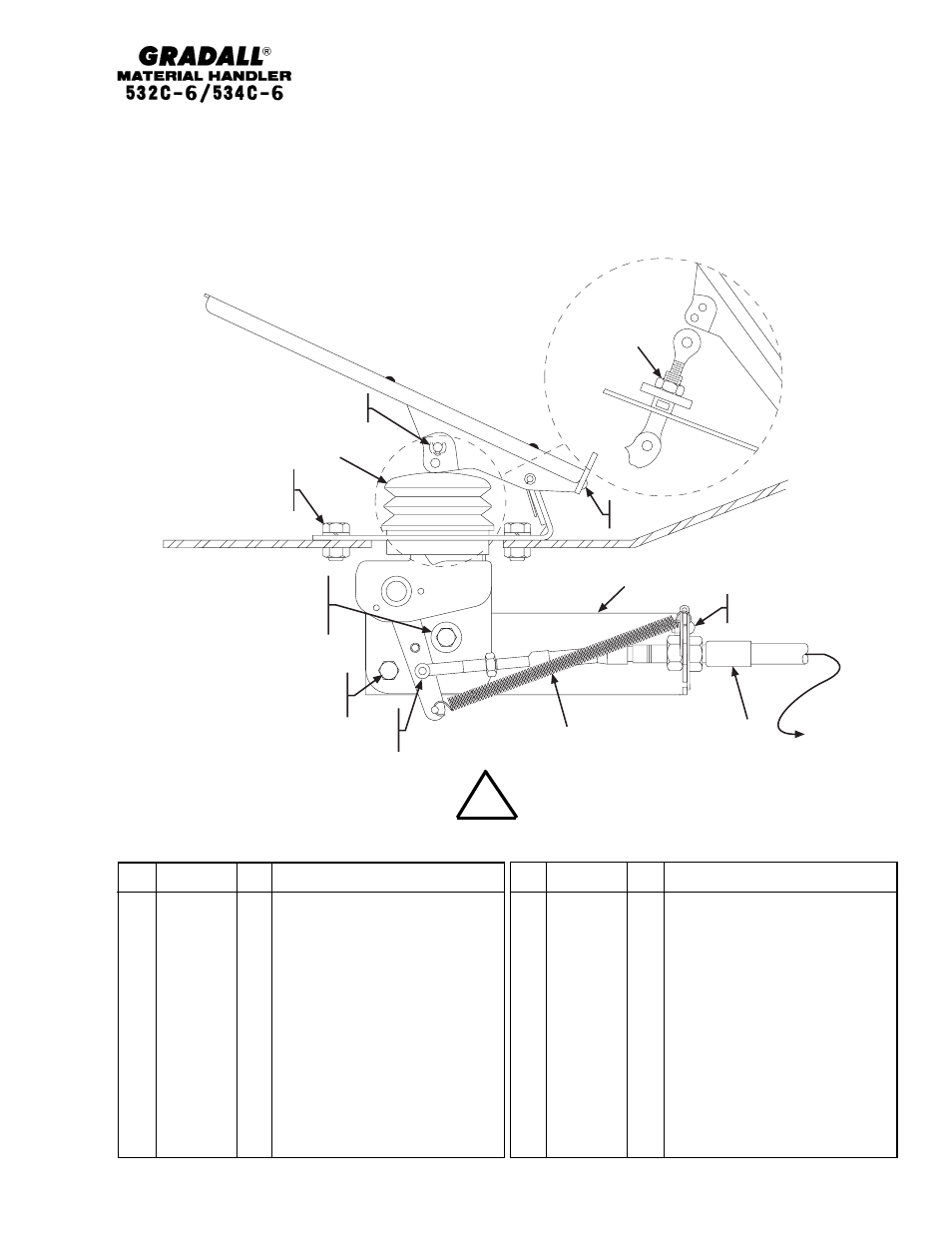

CONTROLS

(9114-3118) Accelerator Pedal Assembly

Starting Serial No. 0288777

Original Issue 10-95

Revised 1-18-02

SVC

7-3

THIS ASSEMBLY COMES WITH A DIFFERENT CABLE SUPPORT,
(item 1, not shown). THE CABLE SUPPORT SHOWN IS THE
PROPER REPLACEMENT AND NEEDS TO BE ORDERED
SEPARATELY.

* Revised illustration, inclusion note on Cable Attach Kit and items 2, 3 & 17; added item 18.

!

Item

Part No.

Qty.

Description Of Part

9114-3118

1

ACCELERATOR PEDAL ASSY,
(includes items 3 thru 11)

9114-4196

1

CABLE ATTACH KIT, (includes items
3 thru 5), (discard clevis and clevis
pin, not shown, and replace with
items 17 & 18)

9114-4197

1

BOOT KIT, (includes items 6 thru 9)

9114-4198

1

HEEL REST KIT, (includes items 10
& 11)

1

9112-1210

1

THROTTLE CABLE SUPPORT

2

9020-7801

1

SPRING

3

1

HAIRPIN COTTER

4

1

LOCK PLATE

5

1

CAPSCREW

6

1

BOOT

7

1

PIN

8

1

HAIRPIN COTTER

*

*

TO ENGINE

VIEW SHOWN WITH BOOT

& PIN REMOVED

*

*

*
