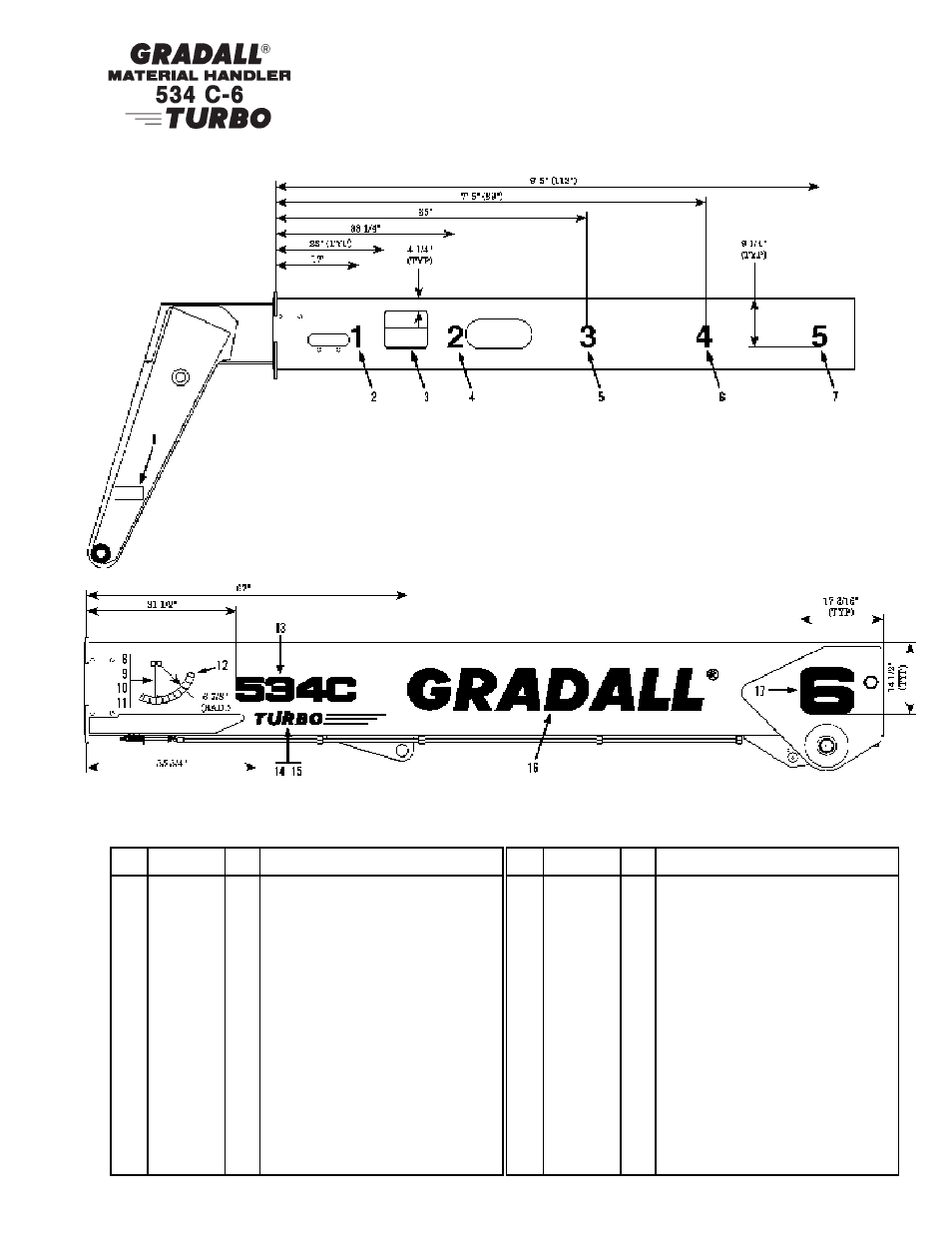

Miscellaneous boom decals (534c-6 turbo) – Gradall 534C-6 Parts Manual User Manual
Page 284
Item
Part No.
Qty.
Description Of Part
10
9002-6491
1
SHOULDER BOLT, 1/4-20
11
8856-1108
1
WASHER, 5/16
12
9100-3031
1
BOOM ANGLE DECAL, WHITE ,
(standard)
13
9112-3035
2
"534C" DECAL, WHITE (standard)
9112-3036
2
"534C" DECAL, BLACK (optional)
14
9132-3002
1
L.H. TURBO DECAL, WHITE,
(standard)
9132-3004
1
L.H. TURBO DECAL, BLACK,
(optional)
15
9132-3003
1
R.H. TURBO DECAL, WHITE,
(standard)
9132-3005
1
R.H. TURBO DECAL, BLACK,
(optional)
16
9112-3037
2
GRADALL DECAL, WHITE (standard)
9112-3038
2
GRADALL DECAL, BLACK (optional)
17
9103-3018
2
"6" DECAL, WHITE (standard)
9103-3218
2
"6" DECAL, BLACK (optional)
Item
Part No.
Qty.
Description Of Part
9108-4283
1
COMMON DECAL KIT - WHITE
(includes all items except 11,
18 & 19, on page 12-2, and all
standard items on page 12-3, except
items 8 thru 11, 13, 14, 15 & 17)
1
9114-3290
1
QUICK SWITCH DECAL
2
9100-3016
1
"1" DECAL, WHITE (standard)
9104-3134
1
"1" DECAL, BLACK (optional)
3
8060-3019
2
HOLE WARNING DECAL
4
9100-3018
1
"2" DECAL, WHITE (standard)
9104-3135
1
"2" DECAL, BLACK (optional)
5
9112-3042
1
"3" DECAL, WHITE (standard)
9112-3043
1
"3" DECAL, BLACK (optional)
6
9100-3020
1
"4" DECAL, WHITE (standard)
9104-3136
1
"4" DECAL, BLACK (optional)
7
9112-3044
1
"5" DECAL, WHITE (standard)
9112-3045
1
"5" DECAL, BLACK (optional)
8
9020-0445
1
PENDULUM
9
9020-0688
1
BEARING
MISCELLANEOUS
Boom Decals (534C-6 TURBO)
Starting Serial No. 0488238
Original Issue 2-98
NOTE: USE 1440-4645 BOESHIELD PROTECTANT (12 OZ. SPRAY) ON ANY EXPOSED METAL
12-3
